Product Overview

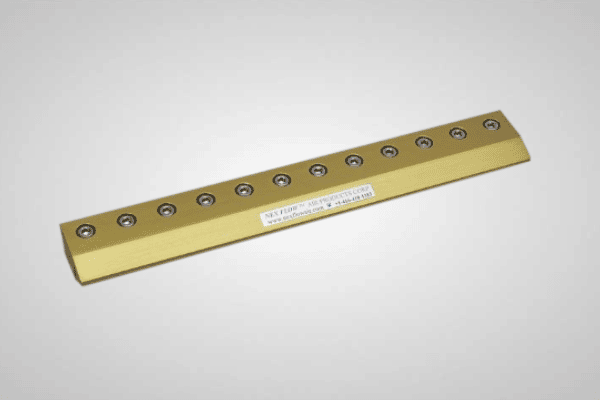

Aluminum Silent X Stream Air Blade Air Knives

The X-Stream Air Blade® Air Knife from Nex Flow® is easy to install and maintain. It can reduce both compressed air consumption and noise levels. used to blow off liquid or debris from products as they travel on conveyors.

It produces a “laminar” flow of air using the Coanda effect. This draws a large volume of air from the surrounding area along with the small amount of compressed air from the Air-Blade. It also produces an output flow up to 40 times.

Our air knife systems payback on compressed air savings can be seen in some applications.

Features / Advantages

  • Quiet – 69 dBA for most applications
  • Made of Anodized Aluminum, Hard Anodized Aluminum, 303/304 Stainless or 316L Stainless Steel.
  • 40:1 air amplification
  • Stainless Steel shim
  • Uniform airflow across entire length
  • Variable force and flow
  • No moving parts – maintenance free
  • Easy mounting
  • Compact, rugged, easy to install
  • Stainless steel screws in all models

Videos

How The Silent X-Stream® Air-Blade® Air Knife Works

Compressed air enters the air knife at the rear (or end) ports at (A). Air is entrained at point (B) and (D) by the compressed air stream that leaves the air knife from a small gap at point (C). The entrained air follows the profile that directs the airflow in a perfectly straight line to create a uniform sheet of air along the entire length of the Air Blade® air knife. The amplified air stream maximized velocity and force are maximized as a well-defined sheet of laminar flow with minimal wind shear for reduced energy use in the blow off and cooling.

Performance

NOTE: Force and Velocity at  6″(152mm) from target.

Sound Level 69 dBA at 80 PSIG (5.5 BAR) for Silent X-Stream® Air Blade® Air Knives

WP Data Tables

NOTE: Force and Velocity at  6″(152mm) from target.

Dimensions

The Air-Blade® – X-Stream® is available in thirteen (13) standard lengths: 2″ (51mm), 3″ (76mm), 6″ (150mm), 9″ (229mm), 12″ (300mm), 15” (381mm), 18″ (457mm), 24″ (609.5mm), 30″ (761mm), 36″ (914mm), 42” (1067 mm), 48” (1219 mm), 54” (1372 mm)

Special lengths of our X-Stream® Air-Blade® are available on special order including lengths combining several units.

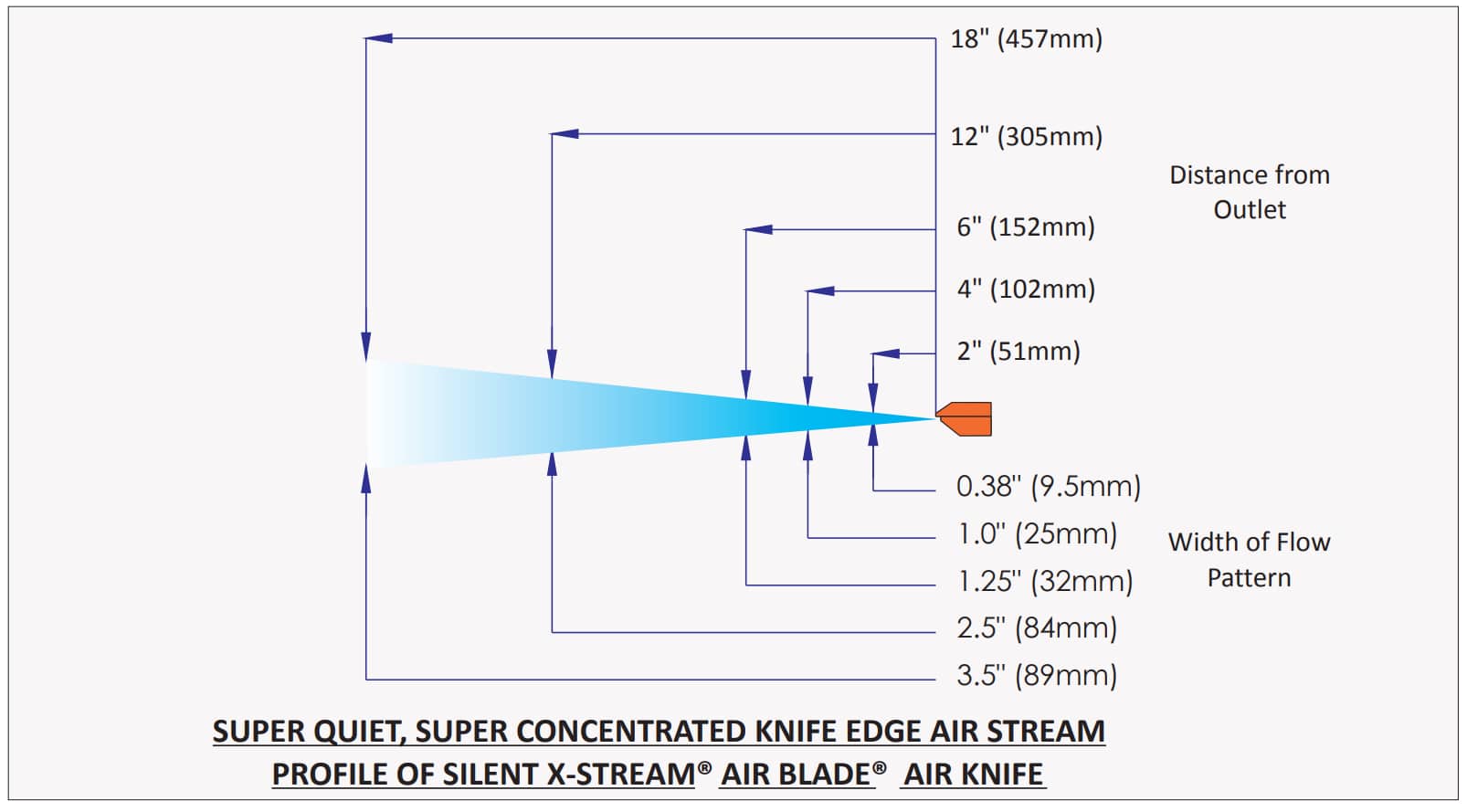

Dimension chart silent x stream air knives

Aluminum Silent X Stream Air Blade Air Knives

PART NO. AA Inches (mm) A Inches (mm) B Inches (mm) C Inches (mm) No. of Rear Inlets (Side Inlets)
10002X 2”(50.8) N/A N/A 1”(25.4) 1(0)
10003X 3”(76.2) .641”(16.3) N/A 1.5”(38.1) 1(0)
10006X 6”(152) 1”(25.4) 2”(50.8) 3”(76.2) 1(2)
10009X 9”(228.6) 1”(25.4) 2”(50.8) 3”(76.2) 2(2)
10012X 12”(304.8) 1”(25.4) 2”(50.8) 3”(76.2) 2(2)
10015X 15”(381) 1”(25.4) 2”(50.8) 4”(101.6) 2(2)
10018X 18”(457.2) 1”(25.4) 2”(50.8) 5”(127.0) 2(2)
10024X 24”(609.6) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10030X 30”(762) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10036X 36”(914.4) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10042X 42”(1066.8) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10048X 48”(1219.2) 1”(25.4) 2”(50.8) 9”(228.6) 3(2)
10054X 54”(1371.6) 1”(25.4) 2”(50.8) 9”(228.6) 3(2)
WP Data Tables
WP Data Tables
Overview

Product Overview

Aluminum Silent X Stream Air Blade Air Knives

The X-Stream Air Blade® Air Knife from Nex Flow® is easy to install and maintain. It can reduce both compressed air consumption and noise levels. used to blow off liquid or debris from products as they travel on conveyors.

It produces a “laminar” flow of air using the Coanda effect. This draws a large volume of air from the surrounding area along with the small amount of compressed air from the Air-Blade. It also produces an output flow up to 40 times.

Our air knife systems payback on compressed air savings can be seen in some applications.

Advantages

Features / Advantages

  • Quiet – 69 dBA for most applications
  • Made of Anodized Aluminum, Hard Anodized Aluminum, 303/304 Stainless or 316L Stainless Steel.
  • 40:1 air amplification
  • Stainless Steel shim
  • Uniform airflow across entire length
  • Variable force and flow
  • No moving parts – maintenance free
  • Easy mounting
  • Compact, rugged, easy to install
  • Stainless steel screws in all models
Videos

Videos

How The Silent X-Stream® Air-Blade® Air Knife Works

Compressed air enters the air knife at the rear (or end) ports at (A). Air is entrained at point (B) and (D) by the compressed air stream that leaves the air knife from a small gap at point (C). The entrained air follows the profile that directs the airflow in a perfectly straight line to create a uniform sheet of air along the entire length of the Air Blade® air knife. The amplified air stream maximized velocity and force are maximized as a well-defined sheet of laminar flow with minimal wind shear for reduced energy use in the blow off and cooling.

Performance

Performance

NOTE: Force and Velocity at  6″(152mm) from target.

Sound Level 69 dBA at 80 PSIG (5.5 BAR) for Silent X-Stream® Air Blade® Air Knives

WP Data Tables

NOTE: Force and Velocity at  6″(152mm) from target.

Dimensions

Dimensions

The Air-Blade® – X-Stream® is available in thirteen (13) standard lengths: 2″ (51mm), 3″ (76mm), 6″ (150mm), 9″ (229mm), 12″ (300mm), 15” (381mm), 18″ (457mm), 24″ (609.5mm), 30″ (761mm), 36″ (914mm), 42” (1067 mm), 48” (1219 mm), 54” (1372 mm)

Special lengths of our X-Stream® Air-Blade® are available on special order including lengths combining several units.

Dimension chart silent x stream air knives

Aluminum Silent X Stream Air Blade Air Knives

PART NO. AA Inches (mm) A Inches (mm) B Inches (mm) C Inches (mm) No. of Rear Inlets (Side Inlets)
10002X 2”(50.8) N/A N/A 1”(25.4) 1(0)
10003X 3”(76.2) .641”(16.3) N/A 1.5”(38.1) 1(0)
10006X 6”(152) 1”(25.4) 2”(50.8) 3”(76.2) 1(2)
10009X 9”(228.6) 1”(25.4) 2”(50.8) 3”(76.2) 2(2)
10012X 12”(304.8) 1”(25.4) 2”(50.8) 3”(76.2) 2(2)
10015X 15”(381) 1”(25.4) 2”(50.8) 4”(101.6) 2(2)
10018X 18”(457.2) 1”(25.4) 2”(50.8) 5”(127.0) 2(2)
10024X 24”(609.6) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10030X 30”(762) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10036X 36”(914.4) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10042X 42”(1066.8) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10048X 48”(1219.2) 1”(25.4) 2”(50.8) 9”(228.6) 3(2)
10054X 54”(1371.6) 1”(25.4) 2”(50.8) 9”(228.6) 3(2)
