Blind Hole Cleaning System

Product Overview

Removing debris from blind or deep holes is an important yet risky task Nozzles have typically been used to blow into deep holes splashing out waste and making a mess in automated systems, and where manual effort is used, it makes for a messy and dangerous operation requiring protective gear to avoid injury.  The Blind Hole Cleaning system was developed for the purpose of improving safety and minimizing or eliminating a mess. Some systems have appeared where a nozzle blows into a deep hole and a vacuum then draws the material removed to be taken away. However that does not work very well because you fight the blowing action with the vacuum action.  This new system uses only a powerful blowing action and uses a venturi effect to draw out dust and debris from deep holes in drilled parts that are hard to clean safely.

It is designed so that the hole is completely covered to address safety issues while compressed air is blown into the hole through specially designed nozzles.  In this way, all the material in the deep, blind hole ends up in an attached, removable collection bag. No material is blown around the part or facility allowing for a cleaner, and safer, cleaning operation.

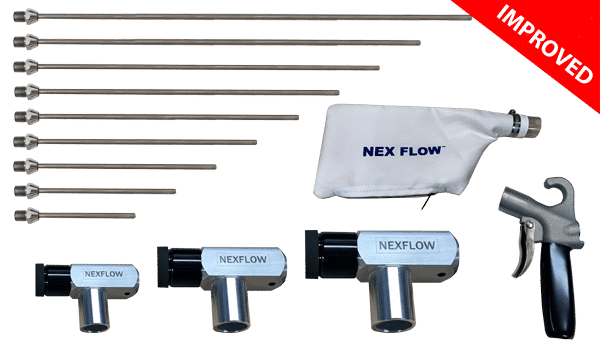

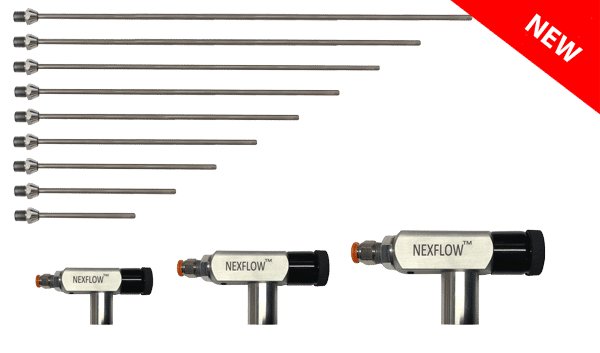

The Blind Hole Cleaning System consists of three specially made parts: the Gun assembly, an adaptor for the appropriate diameter of the hole to be cleaned, and the nozzle for the particular depth range of hole. The Cleaning Kit includes all the hole diameter adaptors, all nozzles as well as a water removal filter with auto drain. Instead of using the gun in manual cleaning operations, these systems can be adapted to automated applications that can supply the air as required to the hole adaptor chosen. Special designs can be developed for your application.

Applications

  • No moving parts
  • Driven by air and not electricity
  • Aluminum cast construction
  • Lightweight and portable
  • Various packages available depending on hole diameter and depth
  • Custom designs available

Features / Advantages

  • Maintenance Free
  • Safe when used as directed
  • Long Life Durable Ergonometric
  • No Electricity so no shock hazard
  • Low Air consumption

Videos

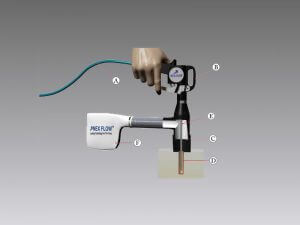

How The X-Stream™ Blind Hole Cleaning System Works

The system comes complete with a hose clamp and material collection bag (F), connected to the Cleaning Gun (B) using a plastic hose connection. Compressed air is supplied to the unit via the custom air hose (A). The replaceable hole adaptor (E) is connected to the Cleaning Gun. Simply place the hole adaptor (C) over the slot, or hole or container to completely cover the hole. Press the handle on the Cleaning Gun to blow compressed air into the slot, hole or container via the nozzle (D) to remove the debris. Once the bag is filled, remove the bag with the hose clamp, clean and replace.

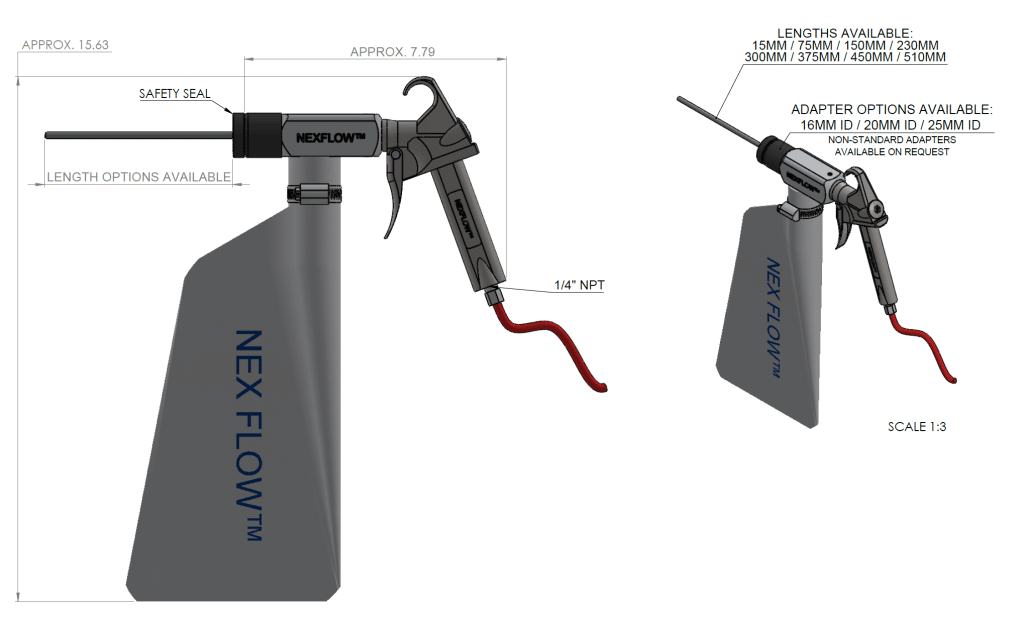

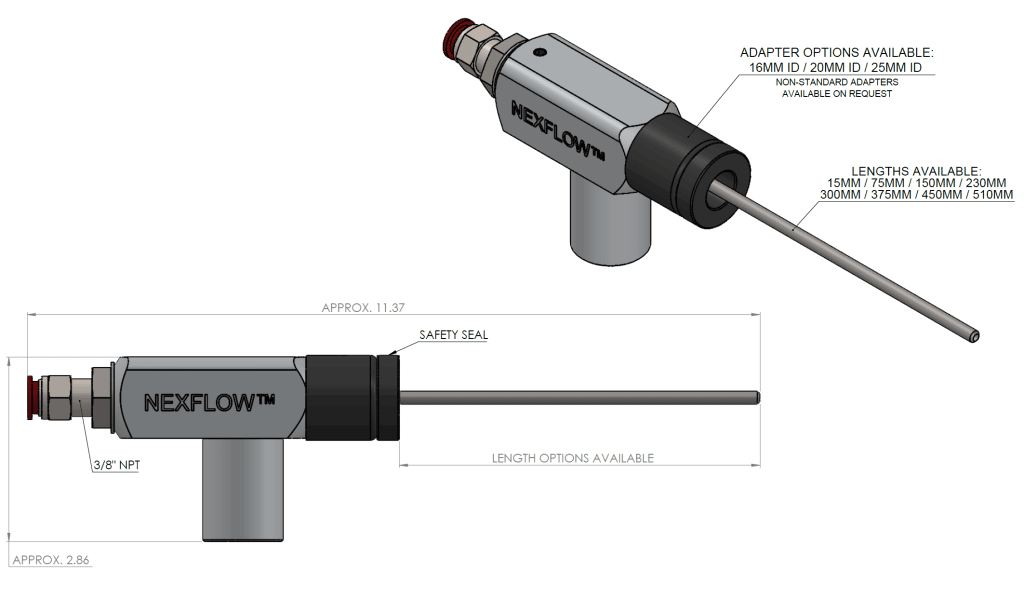

Specifications

DEEP HOLE CLEANING SYSTEM – comes complete with Cleaning Gun, Aluminum cast
Hole adaptor, nozzle, collection bag c/w hose clamp and plastic hose connection

Model Description
48104-16-15 Blind Hole Cleaning System for Max. Hole Dia. of 16 mm and hole depth of 50 mm.
48104-20-15 Blind Hole Cleaning System for Max. Hole Dia. of 20 mm and hole depth of 50 mm.
48104-25-15 Blind Hole Cleaning System for Max. Hole Dia. of 25 mm and hole depth of 50 mm.
48104-16-75 Blind Hole Cleaning System for Max. Hole Dia. of 16 mm and hole depth of 90 mm.
48104-20-75 Blind Hole Cleaning System for Max. Hole Dia. of 20 mm and hole depth of 90 mm.
48104-25-75 Blind Hole Cleaning System for Max. Hole Dia. of 25 mm and hole depth of 90 mm.
48104-16-150 Blind Hole Cleaning System for Max. Hole Dia. of 16 mm and hole depth of 165 mm.
48104-20-150 Blind Hole Cleaning System for Max. Hole Dia. of 20 mm and hole depth of 165 mm.
48104-25-150 Blind Hole Cleaning System for Max. Hole Dia. of 25 mm and hole depth of 165 mm.
48104-16-230 Blind Hole Cleaning System for Max. Hole Dia. of 16 mm and hole depth of 245 mm.
48104-20-230 Blind Hole Cleaning System for Max. Hole Dia. of 20 mm and hole depth of 245 mm.
48104-25-230 Blind Hole Cleaning System for Max. Hole Dia. of 25 mm and hole depth of 245 mm.
48104-16-300 Blind Hole Cleaning System for Max. Hole Dia. of 16 mm and hole depth of 315 mm.
48104-20-300 Blind Hole Cleaning System for Max. Hole Dia. of 20 mm and hole depth of 315 mm.
48104-25-300 Blind Hole Cleaning System for Max. Hole Dia. of 25 mm and hole depth of 315 mm.
48104-16-375 Blind Hole Cleaning System for Max. Hole Dia. of 16 mm and hole depth of 390 mm.
48104-20-375 Blind Hole Cleaning System for Max. Hole Dia. of 20 mm and hole depth of 390 mm.
48104-25-375 Blind Hole Cleaning System for Max. Hole Dia. of 25 mm and hole depth of 390 mm.
48104-16-450 Blind Hole Cleaning System for Max. Hole Dia. of 16 mm and hole depth of 465 mm.
48104-20-450 Blind Hole Cleaning System for Max. Hole Dia. of 20 mm and hole depth of 465 mm.
48104-25-450 Blind Hole Cleaning System for Max. Hole Dia. of 25 mm and hole depth of 465 mm.
48104-16-510 Blind Hole Cleaning System for Max. Hole Dia. of 16 mm and hole depth of 525 mm.
48104-20-510 Blind Hole Cleaning System for Max. Hole Dia. of 20 mm and hole depth of 525 mm.
48104-25-510 Blind Hole Cleaning System for Max. Hole Dia. of 25 mm and hole depth of 525 mm.
COMPLETE KIT
48105 Blind Hole Cleaning System  Kit with All Hole Adaptors and all nozzles.
Plus water removal filter c/w auto drain
48102-16 Blind Hole Gun c/w Adaptor for Maximum Hole Diameter of 16 mm – no nozzles
48102-20 Blind Hole Gun c/w Adaptor for Maximum Hole Diameter of 20 mm – no nozzles
48102-25 Blind Hole Gun c/w Adaptor for Maximum Hole Diameter of 25 mm – no nozzles
48100-16 Adaptor Only for Maximum Hole Diameter of 16 mm
48100-20 Adaptor Only for Maximum Hole Diameter of 20 mm
48100-25 Adaptor Only for Maximum Hole Diameter of 25 mm
NOTE: all standard nozzles below are for minimum inside diameter holes of 7mm. special small nozzles for smaller holes and non-standard cavities are available on request.
48103-150 Nozzle Length – 150 mm for hole depth up to 165 mm (20 SCFM @80 PSIG)
48103-230 Nozzle Length – 230 mm for hole depth up to 245 mm (20 SCFM @80 PSIG)
48103-300 Nozzle Length – 300 mm for hole depth up to 315 mm (20 SCFM @80 PSIG)
48103-375 Nozzle Length – 375 mm for hole depth up to 390 mm (20 SCFM @80 PSIG)
48103-450 Nozzle Length – 450 mm for hole depth up to 465 mm (20 SCFM @80 PSIG)
48103-510 Nozzle Length – 510 mm for hole depth up to 525 mm (20 SCFM @80 PSIG)
48104-0 Bag with plastic hose and Stainless Steel hose clamp
Blind Hole Cleaning System
PART NO. DESCRIPTION Price US Dollars
48104-16-15 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $311.00
48104-20-15 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $311.00
48104-25-15 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $311.00
48104-16-75 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $315.00
48104-20-75 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $315.00
48104-25-75 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $315.00
48104-16-150 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $317.00
48104-20-150 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $317.00
48104-25-150 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $317.00
48104-16-230 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $320.00
48104-20-230 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $320.00
48104-25-230 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $320.00
48104-16-300 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $322.00
48104-20-300 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $322.00
48104-25-300 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $322.00
48104-16-375 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $324.00
48104-20-375 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $324.00
48104-25-375 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $324.00
48104-16-450 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $326.00
48104-20-450 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $326.00
48104-25-450 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $326.00
48104-16-510 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $328.00
48104-20-510 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $328.00
48104-25-510 Blind Hole Cleaning System c/w alum. cast adaptor, nozzle, collection bag c/w hose+ clamp $328.00
48102-16 Blind Hole Gun c/w Adaptor for Maximum Hole Diameter of 16 mm $252.00
48102-20 Blind Hole Gun c/w Adaptor for Maximum Hole Diameter of 20 mm $252.00
48102-25 Blind Hole Gun c/w Adaptor for Maximum Hole Diameter of 25 mm $252.00
48101-0 Blind Hole Cleaning Gun Only $189.00
48100-16 Adaptor Only for Maximum Hole Diameter of 16 mm $89.00
48100-20 Adaptor Only for Maximum Hole Diameter of 20 mm $89.00
48100-25 Adaptor Only for Maximum Hole Diameter of 25 mm $89.00
48103-15 Nozzle Length – 15 mm for hole depth up to 50 mm $23.00
48103-75 Nozzle Length – 75 mm for hole depth up to 90 mm $27.00
48103-150 Nozzle Length – 150 mm for hole depth up to 165 mm $29.00
48103-230 Nozzle Length – 230 mm for hole depth up to 245 mm $32.00
48103-300 Nozzle Length – 300 mm for hole depth up to 315 mm $34.00
48103-375 Nozzle Length – 375 mm for hole depth up to 390 mm $36.00
48103-450 Nozzle Length – 450 mm for hole depth up to 465 mm $38.00
48103-510 Nozzle Length – 510 mm for hole depth up to 525 mm $40.00
48104-0 Bag with plastic hose and Stainless Steel hose clamp + Plastic Hose connection $36.00
Blind Hole Cleaning System Kit
PART NO. DESCRIPTION Price US Dollars
48105 Blind Hole Cleaning System c/w all hole adaptors, zoo=zzles, collection bag c/w hose+ clamp
plus Filter with auto drain (Model 90004)
$703.00

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.
