Electronic Temperature Control

Product Overview

The Electronic Thermostat ELC (Electronic Control Digital Thermostat) is a way for precise control of one or two Nex Flow™ Frigid-X™ panel coolers when you want to cycle them on and off to conserve compressed air.  While many applications require only the Thermostat and Solenoid package for on-off control, the ELC gives more flexibility in control.

Supply Voltage: AC120-240V (24V on request)

  • Sampling Rate: 4/sec (almost double that of nearest competitor)
  • Accuracy: 0.25% of full-scale
  • 50° to 100°C measuring range
  • NEMA 4-4X Enclosure (ABS/PC), ULC approved – accepted anywhere in the world
  • Standard unit comes with one solenoid valve
  • °F or °C and easily switchable back and forth.
  • 3 Outputs: Two relay outputs and one with PID, 1 SSR output with PID to control external SSR
  • Two Alarm settings for the two output relays so you can set two different temperatures to control two different solenoids for two separate coolers (and can be used to control anything electrical)
  • AutoTune Mode for quick set ups

Standard unit comes with one solenoid valve, but it can operate two units and also complete additional tasks

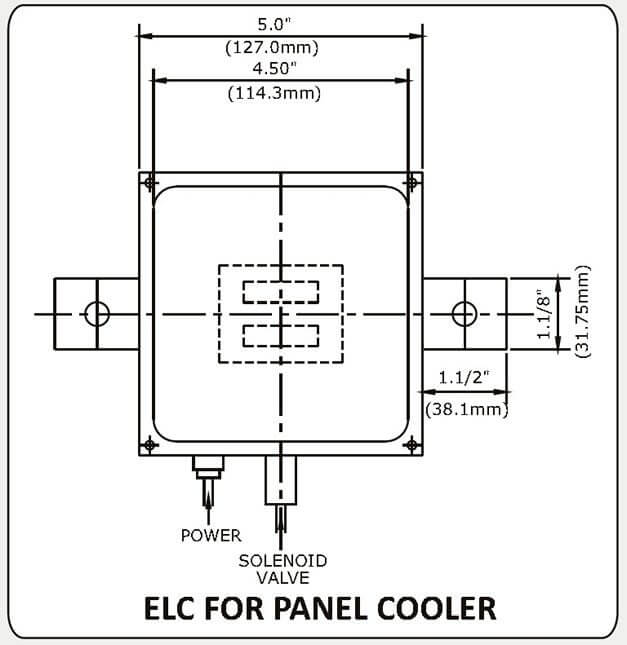

Dimensions

Electronic Control Packaged System

PART NO. DESCRIPTION Price US Dollars
63002A-ELC NEMA 12 FRIG-X Cl. + hose kit + filter + ELECTRONIC CONTROL PACKAGED SYSTEM $1,020.00
63004A-ELC NEMA 12 FRIG-X Cl. + hose kit + filter + ELECTRONIC CONTROL PACKAGED SYSTEM $1,020.00
63008A-ELC NEMA 12 FRIG-X Cl. + hose kit + filter + ELECTRONIC CONTROL PACKAGED SYSTEM $1,020.00
63010A-ELC NEMA 12 FRIG-X Cl. + hose kit + filter + ELECTRONIC CONTROL PACKAGED SYSTEM $1,069.00
63015A-ELC NEMA 12 FRIG-X Cl. + hose kit + filter + ELECTRONIC CONTROL PACKAGED SYSTEM $1,069.00
63025A-ELC NEMA 12 FRIG-X Cl. + hose kit + filter + ELECTRONIC CONTROL PACKAGED SYSTEM $1,069.00
63030A-ELC NEMA 12 FRIG-X Cl. + hose kit + filter + ELECTRONIC CONTROL PACKAGED SYSTEM $1,069.00
63040A-ELC NEMA 12 FRIG-X Cl. + hose kit + filter + ELECTRONIC CONTROL PACKAGED SYSTEM $1,069.00
63002R-ELC NEMA 3RFRIG-X Cl. + hose kit + filter + ELECTRONIC CONTROL PACKAGED SYSTEM $1,045.00
63004R-ELC NEMA 3RFRIG-X Cl. + hose kit + filter + ELECTRONIC CONTROL PACKAGED SYSTEM $1,045.00
63008R-ELC NEMA 3RFRIG-X Cl. + hose kit + filter + ELECTRONIC CONTROL PACKAGED SYSTEM $1,045.00
63010R-ELC NEMA 3RFRIG-X Cl. + hose kit + filter + ELECTRONIC CONTROL PACKAGED SYSTEM $1,097.00
63015R-ELC NEMA 3RFRIG-X Cl. + hose kit + filter + ELECTRONIC CONTROL PACKAGED SYSTEM $1,097.00
63025R-ELC NEMA 3RFRIG-X Cl. + hose kit + filter + ELECTRONIC CONTROL PACKAGED SYSTEM $1,097.00
63030R-ELC NEMA 3RFRIG-X Cl. + hose kit + filter + ELECTRONIC CONTROL PACKAGED SYSTEM $1,097.00
63040R-ELC NEMA 3RFRIG-X Cl. + hose kit + filter + ELECTRONIC CONTROL PACKAGED SYSTEM $1,097.00
63102X-ELC NEMA 4-4X FRIG-X Encl. Cl. + hose kit + filter + ELECTR. CONTROL PACKAGED SYSTEM $1,105.00
63104X-ELC NEMA 4-4X FRIG-X Encl. Cl. + hose kit + filter + ELECTR. CONTROL PACKAGED SYSTEM $1,105.00
63108X-ELC NEMA 4-4X FRIG-X Encl. Cl. + hose kit + filter + ELECTR. CONTROL PACKAGED SYSTEM $1,105.00
63110X-ELC NEMA 4-4X FRIG-X Encl. Cl. + hose kit + filter + ELECTR. CONTROL PACKAGED SYSTEM $1,127.00
63115X-ELC NEMA 4-4X FRIG-X Encl. Cl. + hose kit + filter + ELECTR. CONTROL PACKAGED SYSTEM $1,127.00
63125X-ELC NEMA 4-4X FRIG-X Encl. Cl. + hose kit + filter + ELECTR. CONTROL PACKAGED SYSTEM $1,127.00
63130X-ELC NEMA 4-4X FRIG-X Encl. Cl. + hose kit + filter + ELECTR. CONTROL PACKAGED SYSTEM $1,127.00
63140X-ELC NEMA 4-4X FRIG-X Encl. Cl. + hose kit + filter + ELECTR. CONTROL PACKAGED SYSTEM $1,127.00

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.

website : www.nexflow.com

email : [email protected]
