Ionizing Air Nozzles

Product Overview

The Ring Ionizer – Ionizing Nozzles are highly effective at the discharging and cleaning of surfaces – in particular of non-conductive

materials. The Nozzles can also be mounted to a handgun if they need to be converted for manual use.

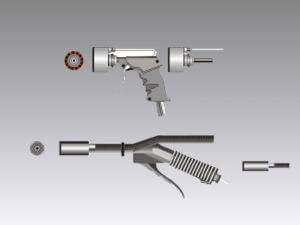

Ring Ionizer Model 17200 and Model 17203 (with Air Gun)

Model 17200 and Model 17203 are particularly suited for the discharge of very small areas and components in confined workspaces. They are light, flexible, easy to handle, and their robust design makes these units the Ionizers of choice for many discharge processes.

Ring Ionizer Model 17195 and Model 17196 (with Air Gun)

Model 17195 and model 17196 are robust and easy to handle with ergonometric design when used with an Air Gun.

Ring Ionizer Model 17194 and Model 17187 (with Air Gun)

Model 17194 and Model 17187 are the largest Nozzles for very heavy duty and robust large area applications.

Information

When the situation calls for a hand held static elimination device the ideal product is an Ionizing Air Gun. Important features should be ergonometric design, weight and flexibility. The cable should be fully shielded especially with anti-static guns to have adequate life expectancy.

The unique design of the Haug Ion Gun consists of specific parts so that they can actually be repaired by replacing the damaged part, either by returning to Nex Flow or ordering the part and repairing it in the field. Due to the often rough handling ion guns receive in an industrial environment, the Haug Ion Gun is an ideal choice compared to inferior and low quality, unrepairable products. It comes with a fully shielded and flexible cable and a patented safety connector ensuring the ultimate in safety and quality in the field.

Special Notes

Haug static bars all come with a patented connector to ensure safety in operation and maintenance. Field repairable, it prevents a connection if the static bar is removed or attached while power is still on at the power supply.

The cable is FULLY SHIELDED unlike some manufacturers that claim shielding which may only be partial. This results in much longer life for Haug products.

REPAIRABLE POWER SUPPLIES – almost unheard of in the industry, Haug power supplies are repairable and come with a 2 year warranty.

Specifications

PART NO. DESCRIPTION
17200 20 mm (0.8 inches) RING IONIZER NOZZLE /w 6 feet (2 m) cable
17203 20 mm (0.8 inches) RING IONIZER NOZZLE /w 6 feet (2 m) cable with air gun
17195 32mm (1.3 inches) RING IONIZER NOZZLE /w 6 feet (2 m) cable
17196 32 mm (1.3 inches) RING IONIZER NOZZLE /w 6 feet (2 m) cable with air gun
17194 65 mm (2.5 inches) RING IONIZER NOZZLE /w 6 feet (2 m) cable
17187 65 mm (2.5 inches) RING IONIZER NOZZLE /w 6 feet (2 m) cable with air gun

Technical

Model No. 17200 / 17203 17195 / 17196 17194 / 17187
Nozzle Size Ø 0.8″ (20 mm) Ø 1.3″ (32mm) Ø 2.5″ (65mm)
Weight With air gun But no air hose Ø 0.1″ (2mm) Sollid Stream nozzle 3 X Ø 0.”1(1.6mm) Solid Stream nozzle exchangeable Ø 0.1″ (2mm) Flat get nozzel exchangeable
0.44 pounds(0.2kg) 0.88 pounds (0.4kg) 1.32 pounds (0.6kg)
Weight With air gun But no air hose 1.1 pound (0.5kg) 1.32 pounds (0.6kg) 2.2 pound (1.0kg)
Air Consumption According to table depending on pressure
Optimum pressure Approx.3bar (43.5 psig)
Operating temperature -4 F° (-20+ c) to122 F° (+50 c)

Performance

Air Consomption

Ionizing Nozzles
PART NO. DESCRIPTION Size Price US Dollars
17200 20 mm (0.8 inches) NOZZLE /w 6 feet (2 m) cable 20 mm (0.8 inches) $598.00
17203 20 mm (0.8 inches) NOZZLE /w 6 feet (2 m) cable with air gun 20 mm (0.8 inches) $685.00
17195 32mm (1.3 inches) NOZZLE /w 6 feet (2 m) cable 32 mm (1.3 inches) $640.00
17196 32 mm (1.3 inches) NOZZLE /w 6 feet (2 m) cable with air gun 32 mm (1.3 inches) $798.00
17194 65 mm (2.5 inches) NOZZLE /w 6 feet (2 m) cable 65 mm (2.5 inches) $1,160.00
17187 65 mm (2.5 inches) NOZZLE /w 6 feet (2 m) cabl with air gune 65 mm (2.5 inches) $1,365.00

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.

website : www.nexflow.com

email : sales@nexflow.com
