Product Overview

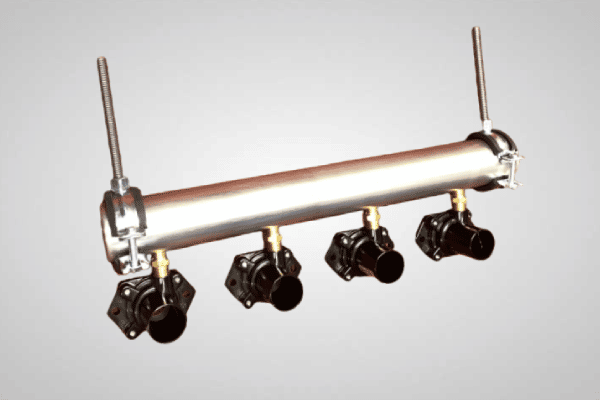

The Modifies X-stream® Manifold design is adapted to use the popular FX20 Fixed X-Stream® Air Amplifier in combinations of two, three, four, five and six amplifiers for major cooling applications or light blow off and when a set length of use is required. These systems are available in aluminum and incorporate the cast zinc-aluminum 1-1/4″ air amplifiers. Cooling effect can be increased by adding shims to the amplifiers as needed. Air Amplifiers are used for light blow off but especially for rapid cooling of very hot parts such as cast materials, large hot parts and can cool faster and more effectively than ordinary fans. These systems can also be used for part drying
Applications
- Part cooling
- Light blow off
- Part drying
- Light cleaning
Features / Advantages
- Reduced compressed air cost
- 10 dBA average noise reduction
- Conserve compressed air
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Improved production
Videos
Specifications
| Part Number | Description |
|---|---|
| 46008FXA | Two outlet Aluminum Anodized Manifold – total flow to 150 SCFM @ 80 PSIG |
| 46012FXA | Three outlet Aluminum Anodized Manifold – total flow to 250 SCFM @ 80 PSIG |
| 46016FXA | Four outlet Aluminum Anodized Manifold – total flow to 300 SCFM @ 80 PSIG |
| 46020FXA | Five outlet Aluminum Anodized Manifold – total flow to 350 SCFM @ 80 PSIG |
| 46024FXA | Six outlet Aluminum Anodized Manifold – total flow to 450 SCFM @ 80 PSIG |
NOTE: Using one air inlet allows for 50% of rated flow – using both end air inlets allows for up to 100% of rated flow.
| FX Air Amplifier Manifolds For Blowoff & Cooling | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 46008FXA | 8" Aluminum Manifold c/w clamps for two FX20 units | 1/2" | $300.00 |
| 46012FXA | 12" Aluminum Manifold c/w clamps for three FX20 units | 1/2" | $360.00 |
| 46016FXA | 16" Aluminum Manifold c/w clamps for four FX20 units | 1/2" | $400.00 |
| 46020FXA | 20" Aluminum Manifold c/w clamps for five FX20 units | 1/2" | $460.00 |
| 46024FXA | 24" Aluminum Manifold c/w clamps for six FX20 units | 1/2" | $510.00 |
| More Information or Buy Here |
| FX Air Amplifier Cooling Manifolds c/w Amplfiiers All Premounted For Cooling & Blowoff | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 46008FXA-2 | 8" Aluminum Manifold c/w clamps for two FX20 units | 1/2" | $750.00 |
| 46012FXA-3 | 12" Aluminum Manifold c/w clamps for three FX20 units | 1/2" | $1,035.00 |
| 46016FXA-4 | 16" Aluminum Manifold c/w clamps for four FX20 units | 1/2" | $1,300.00 |
| 46020FXA-5 | 20" Aluminum Manifold c/w clamps for five FX20 units | 1/2" | $1,580.00 |
| 46024FXA-6 | 24" Aluminum Manifold c/w clamps for six FX20 units | 1/2" | $1,850.00 |
| More Information or Buy Here |
| Spare Part for X-Stream® Mounting Systems | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| XMAN00A | SPARE ALUMINUM CLAMP FOR X-STREAM MOUNTING SYSTEMS | - | $30.00 |
| XMAN00S | SPARE STAINLESS STEEL CLAMP FOR X-STREAM MOUNTING SYSTEMS | - | $60.00 |
| More Information or Buy Here |
Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA
Richmond Hill, ON, Canada for international orders.
website : www.nexflow.com
email : sales@nexflow.com
