Product Overview
NEX FLOW MINI MOUNTING SYSTEM FOR AIR BLADE AIR KNIVES & AMPLIFIERS – Flexible and Durable

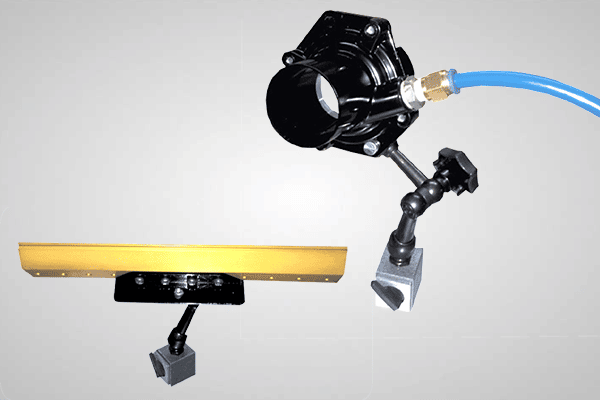

Mounting Systems for air knives and amplifiers provide a convenient and flexible way to utilize the products for blow-off and cooling applications. All Mounting Systems are made of powder coated steel. One knob controls the infinite flexibility of the system and secures it in place after the air knife or amplifier is properly positioned. An optional magnetic base can secure it to a magnet accepting platform.

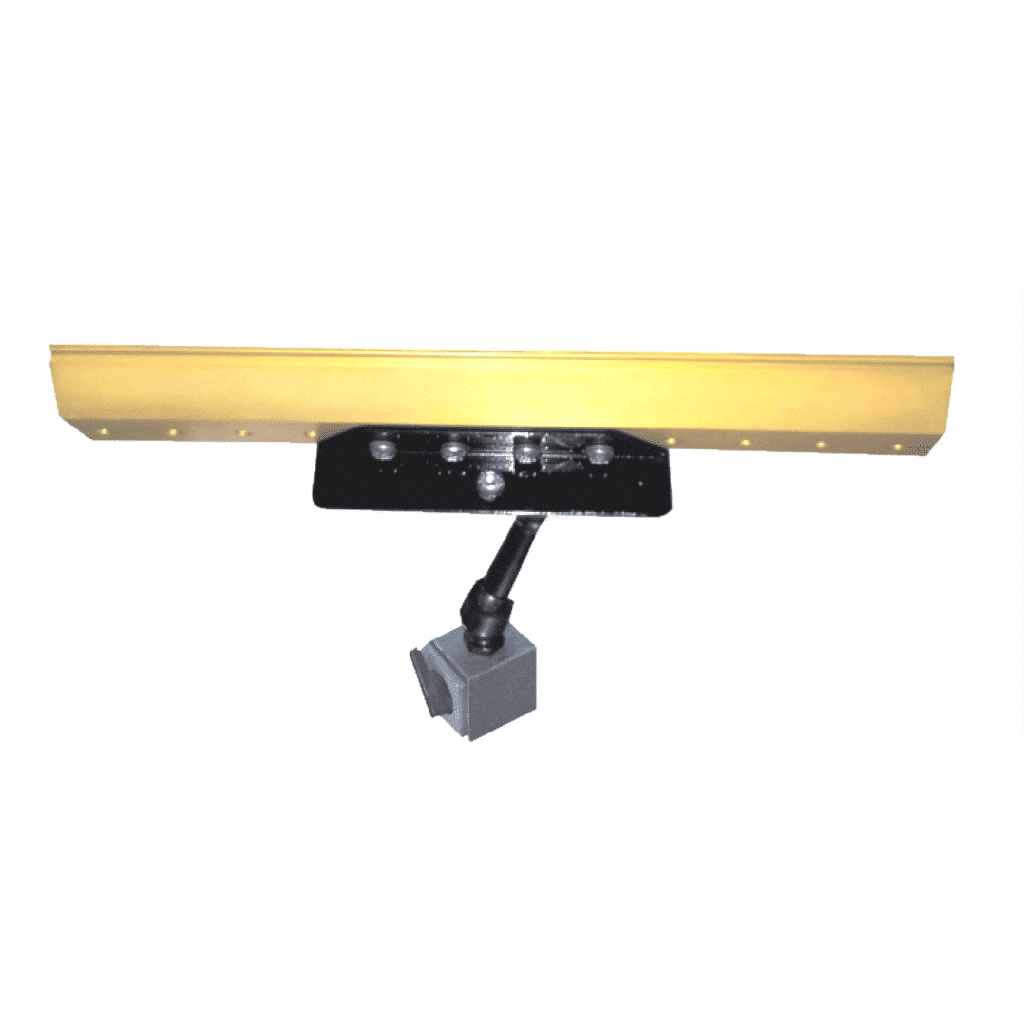

Secure air knives in place quickly and easily with precision mounting.
The Air Blade Air Knife System comes complete with powder coated brackets and stainless steel mounting screws along with the mounting unit itself. An optional magnetic base can be provided, otherwise it can be secured by threading to a surface.

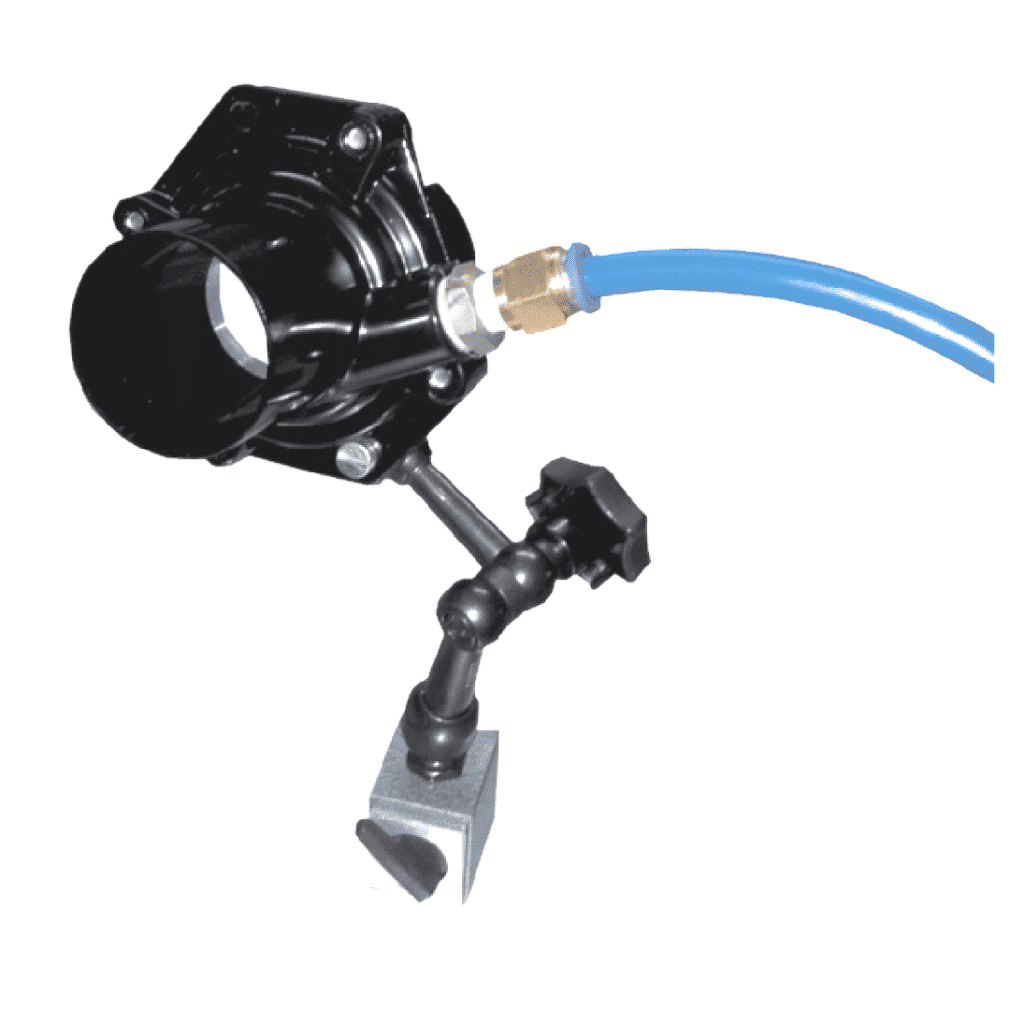

Air Amplifiers can also be securely and accurately placed using the mounting systems.
Standard Model FX10, FX20, and FX40 as well as adjustable Model 40001, and 40002 Air Amplifiers can also be mounted using the mounting arm. As with the Air Blade Air Knife System an optional magnetic base can be provided, or the unit can be secured by threading to a surface.
Features / Advantages
- Flexible and Durable
- Easy to use and install
- Powder Coated Steel
- Optional Magnetic Base
- Infinite flexibility
- Designed for Factory Environments
Dimensions

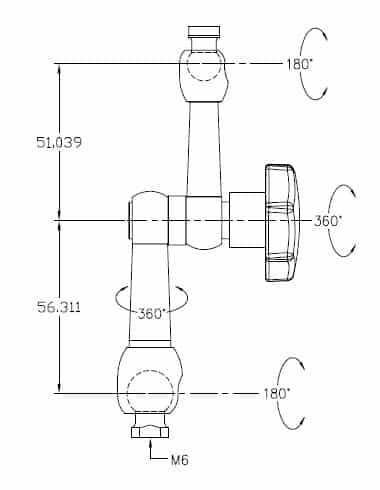

Model NF60003

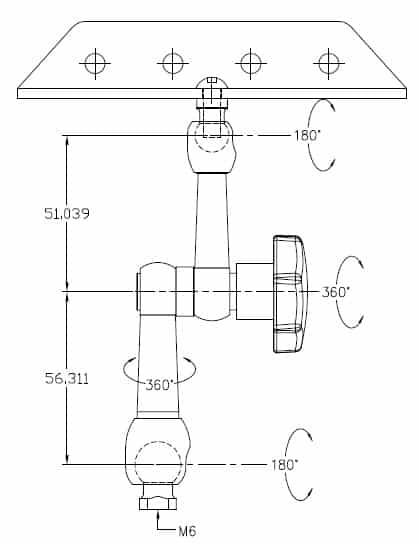

Model NF60003 X-Stream® Air Blade bracket Model 10997X
Model MG60003 Holder Only
Model MG60003 + X-Stream® Air Blade bracket Model 10997

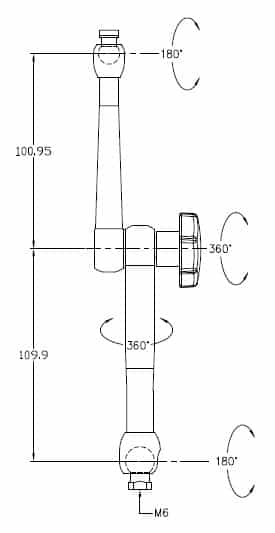

Model DG60003 Holder Only

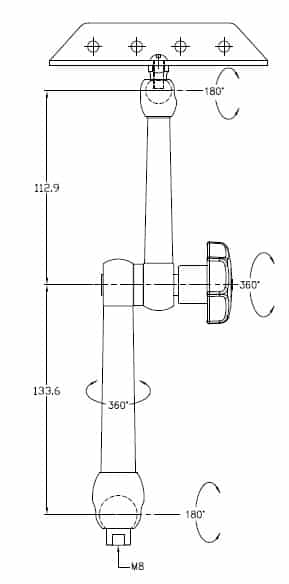

Model DG60003 + X-Stream® Air Blade bracket Model 10997X

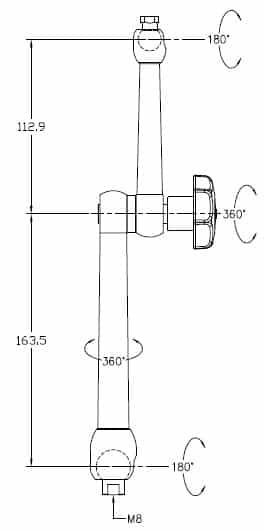

Model MG70003 Holder Only

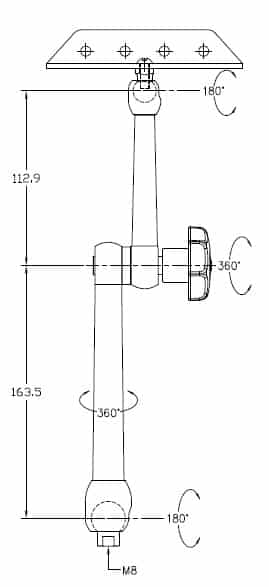

Model MG70003 X-Stream® Air Blade bracket Model 10997X
| Mounting Systems For Air Blade Air Knives & Amplifiers | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| AMMS | System for FX10, FX20, FX40 – NF60003 + screw | – | $352.00 |
| 40001MTS-MS | System for 40001 and 40001G and 40001S | – | $392.00 |
| 40002MTS-MS | System for 40002 and 40002G and 40002S | – | $407.00 |
| 10991A1 | System for 6″ to 18″ aluminum and 6″ to 15″ stainless steel | – | $415.00 |
| 10991A2 | Dual system for aluminum 24″ to 54″ | – | $830.00 |
| 10992A1 | System for 18″ stainless steel – DG60003 + Bracket + screws | – | $515.00 |
| 10992A2 | System for 18″ stainless steel | – | $1,030.00 |
| 10991X1 | Dual Systems for 24″ to 36″ stainless steel | – | $415.00 |
| 10991X2 | System for 6″ to 18″ aluminum and 6″ to 15″ stainless steel | – | $830.00 |
| 10992X1 | System for 18″ stainless steel – DG60003 + Bracket + screws | – | $515.00 |
| 10992X2 | Dual system for aluminum 24″ to 54″ | – | $1,030.00 |
| 10993X2 | Dual System for 42"to 48" stainless steel - 2 sets MG60003+ 2 brackets + screws | - | $1,330.00 |
| 10994X2 | Dual System for 54" stainless steel - 2 sets MG70003+ 2 brackets + screws | - | $1,430.00 |
| DG0036-AD6060 | Optional mounting magnet for Air Blade Mounting System 10991X1, 10991X2 (Need two for 10991X2) and 10992X1 and 10992X2 (need two for 10992X2) | – | $160.00 |
| DG0036-AD6060 | Optional mounting magnet for Air Blade Mounting Systems 10993X2 and 10994X2 (Need two for 10993X2 and 10994X2) | – | $160.00 |
| More Information or Buy Here |
