Mounting System
Mounting Systems for air knives and amplifiers provide a convenient and flexible way to utilize the products for blow-off and cooling applications
Nex Flow Mouting System For Air Blade Air Knives & Amplifiers Flexible and Durable
Mounting Systems for air knives and amplifiers provide a convenient and flexible way to utilize the products for blow-off and cooling applications. All Mounting Systems are made of powder coated steel. One knob controls the infinite flexibility of the system and secures it in place after the air knife or amplifier is properly positioned. Optional magnetic base can secure it to a magnet accepting platform. Rugged and secure positioning.

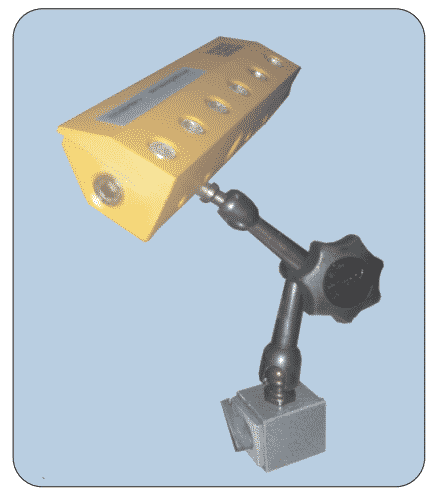

Secure air knives in place quickly and easily with precision mounting.
Air Blade Air Knife System comes complete with powder coated brackets and stainless steel mounting screws along with the mounting unit itself. Optional magnetic base, otherwise can secure by threading to a surface.

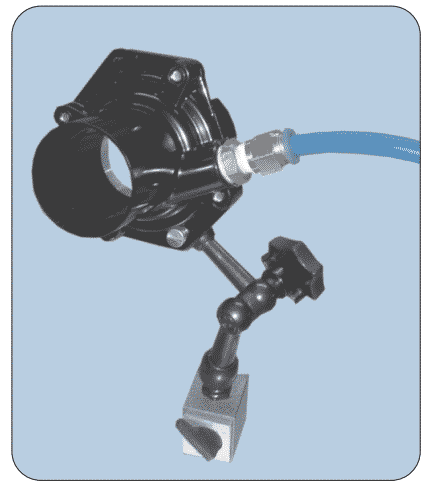

Air Amplifiers can also be securely and accurately placed using the mounting systems.
Standard Model FX10, FX20, and FX40 as well as adjustable Model 40001, and 40002 Air Amplifiers can also be mounted using the mounting arm. TM As with the Air Blade Air Knife System an optional magnetic base can be provided or the unit can be secured by threading to a surface.
| Weight | 0.5 kg |
|---|---|
| Model Type | MAXI Mounting Systems For All Air Knives, MINI Mounting Systems For Air Amplifiers, MINI Mounting Systems For Standard Air Blades, MINI Mounting Systems For X-Stream Air Blades, Optional Item |
| Product | Optional magnetic base for MAXI Mounting Systems 19002 ONLY, Optional mounting magnet for Air Blade Mounting Systems 10991X1 and 10991X2, Optional mounting magnet for Air Blade Mounting Systems 10993X2 and 10994X2, Mounting arm only for 10991X1 and 10991X2, Mounting arm only for 10992X1 and 10992X2, Mounting arm only for 10993X2, Mounting arm only for 10994X2, Bracket Only plus Screws (5), Screws Only (5 screws per kit) EACH, Bracket Only for X-stream air blade, Bracket for Standard Air Blade (on special order) plus srews (5), Bracket Only for Standard air blade, Spare Screw for Amplifier Mounting System, Mounting Bracket for Model 40001, 40001G and 40001S, Mounting Bracket for Model 40002, 40002G and 40002S, System for FX10 FX20 FX40 NF60003 + screw, System for 6" to 18" aluminum and 6" to 15" stainless steel – NF60003 + Bracket + screws, Dual system for aluminum 24" to 54" – 2 sets NF60003 + 2 Brackets + screws, System for 18" stainless steel – DG60003 + Bracket + screws, Dual System for 24" to 36" stainless steel – 2 sets DG60003 + 2 Brackets + screws, Dual System for 42"to 48" stainless steel – 2 sets MG60003+ 2 brackets + screws, Dual System for 54" stainless steel – 2 sets MG70003+ 2 brackets + screws, System for 6" to 18" aluminum and 6" to 15" stainless steel – NF60003 + Bracket + screws, Dual system for aluminum 24" to 54" – 2 sets NF60003 + 2 Brackets + screws, System for 18" stainless steel – DG60003 + Bracket + screws, Dual Systems for 24" to 36" stainless steel – 2 sets DG60003 + 2 Brackets + screws, System for 40001 and 40001G and 40001S – NF60003 + 40001MTS + screw, System for 40002 and 40002G and 40002S – NF60003 + 40001MTS + screw, 12" adjustability Stainless Steel Mounting System For All Air Knives, 36" adjustability Stainless Steel Mounting System For All Air Knives |
| SKU | Model Type | Product | ||
|---|---|---|---|---|
| 19003 | Optional Item | Optional magnetic base for MAXI Mounting Systems 19002 ONLY | ||

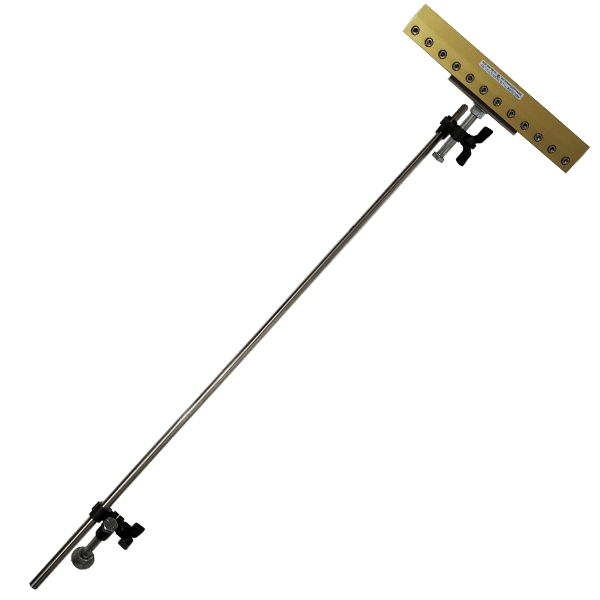

| 19001 | MAXI Mounting Systems For All Air Knives | 36" adjustability Stainless Steel Mounting System For All Air Knives | ||

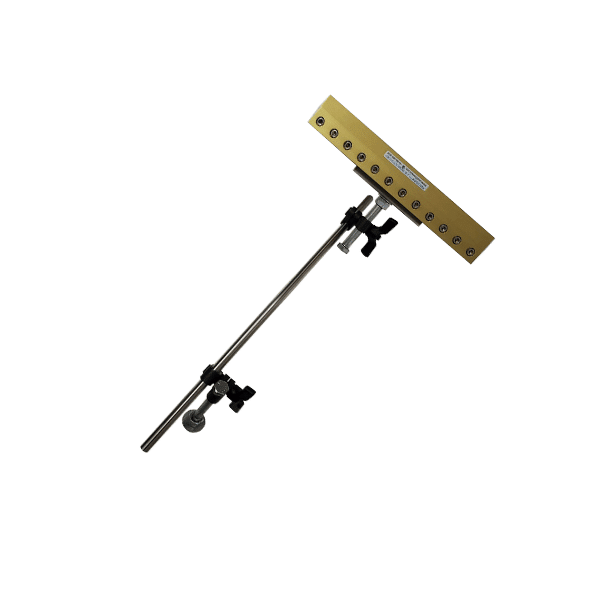

| 19002 | MAXI Mounting Systems For All Air Knives | 12" adjustability Stainless Steel Mounting System For All Air Knives | ||
| DG0036-AD6060 | Optional Item | Optional mounting magnet for Air Blade Mounting Systems 10991X1 and 10991X2 | ||
| DG0036-AD8080 | Optional Item | Optional mounting magnet for Air Blade Mounting Systems 10993X2 and 10994X2 | ||
| AMMS | MINI Mounting Systems For Air Amplifiers | System for FX10 FX20 FX40 NF60003 + screw | ||
| 10991X1 | MINI Mounting Systems For X-Stream Air Blades | System for 6" to 18" aluminum and 6" to 15" stainless steel - NF60003 + Bracket + screws | ||
| 10991X2 | MINI Mounting Systems For X-Stream Air Blades | Dual system for aluminum 24" to 54" - 2 sets NF60003 + 2 Brackets + screws | ||
| 10992X1 | MINI Mounting Systems For X-Stream Air Blades | System for 18" stainless steel - DG60003 + Bracket + screws | ||
| 10992X2 | MINI Mounting Systems For X-Stream Air Blades | Dual System for 24" to 36" stainless steel - 2 sets DG60003 + 2 Brackets + screws | ||
| 10993X2 | MINI Mounting Systems For X-Stream Air Blades | Dual System for 42"to 48" stainless steel - 2 sets MG60003+ 2 brackets + screws | ||
| 10994X2 | MINI Mounting Systems For X-Stream Air Blades | Dual System for 54" stainless steel - 2 sets MG70003+ 2 brackets + screws | ||
| 10991A1 | MINI Mounting Systems For Standard Air Blades | System for 6" to 18" aluminum and 6" to 15" stainless steel - NF60003 + Bracket + screws | ||
| 10991A2 | MINI Mounting Systems For Standard Air Blades | Dual system for aluminum 24" to 54" - 2 sets NF60003 + 2 Brackets + screws | ||
| 10992A1 | MINI Mounting Systems For Standard Air Blades | System for 18" stainless steel - DG60003 + Bracket + screws | ||
| 10992A2 | MINI Mounting Systems For Standard Air Blades | Dual Systems for 24" to 36" stainless steel - 2 sets DG60003 + 2 Brackets + screws | ||

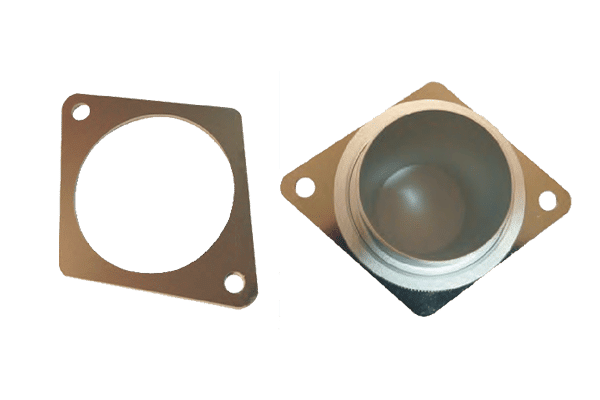

| 40001MTS-MS | MINI Mounting Systems For Air Amplifiers | System for 40001 and 40001G and 40001S - NF60003 + 40001MTS + screw | ||
| 40002MTS-MS | MINI Mounting Systems For Air Amplifiers | System for 40002 and 40002G and 40002S - NF60003 + 40001MTS + screw |
