Standard Air Nozzle
Standard Air Nozzle are designed to fit into small spaces. Also, an adjustable Nozzle for some applications and then a few different Nozzles with varying force
| Weight | 0.1 kg |
|---|---|
| Fitting Type | Male 10/32", Male 1/8", Male 1/8" – Adjustable, Female 1/4", Male 1/4", Male 1/4" – Tube, Male 5 mm |
| Material | Brass, X-Stream™ Aluminum, Anodized Aluminum, 303/304 Stainless Steel, 316L Stainless Steel, 316L Stainless Steel Mini Nozzle, Extra Strong Aluminum, Extra Strong 303/304 Stainless Steel, Extra Strong 316L Stainless Steel, Extra Strong PEEK with Aluminum Sleeve |
Standard Air Nozzle Model
- Various options
 |

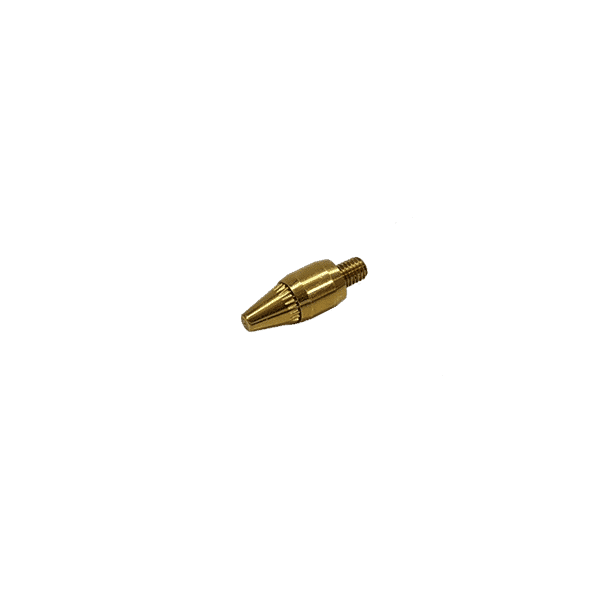

Model 47001 is designed to fit into small spots and is used by many machine builders for blow-off applications.
Sound level 74 dBA at 3ft (0.91m) at 80 psig (5.5 bar). |
 |

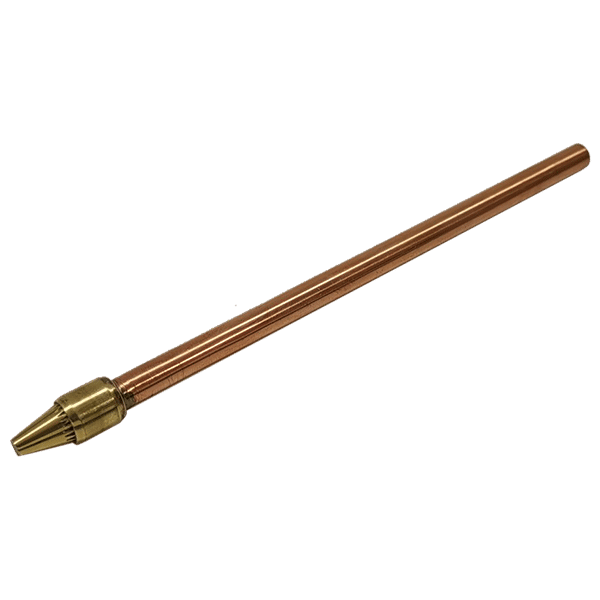

Model 47002 is the brass nozzle added to a copper tube. Machine builders can bend the copper tube and aim the nozzles to wherever it suits. The copper tube is simply press fit into the customer’s system.
Sound level 74 dBA at 3ft (0.91m) at 80 psig (5.5 bar). |
 |

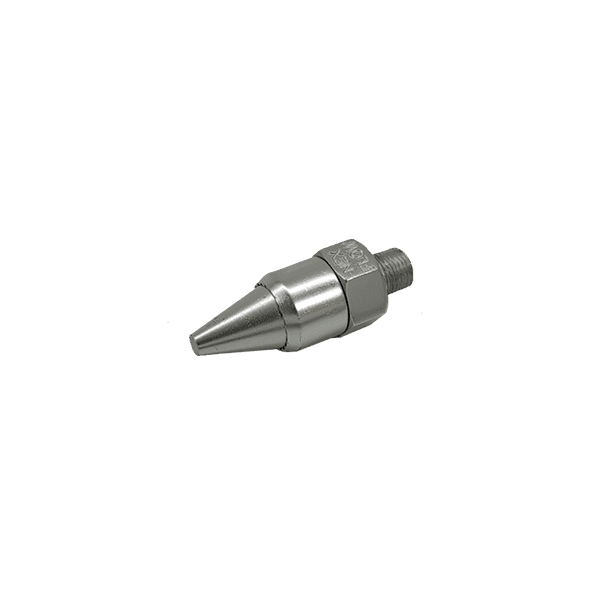

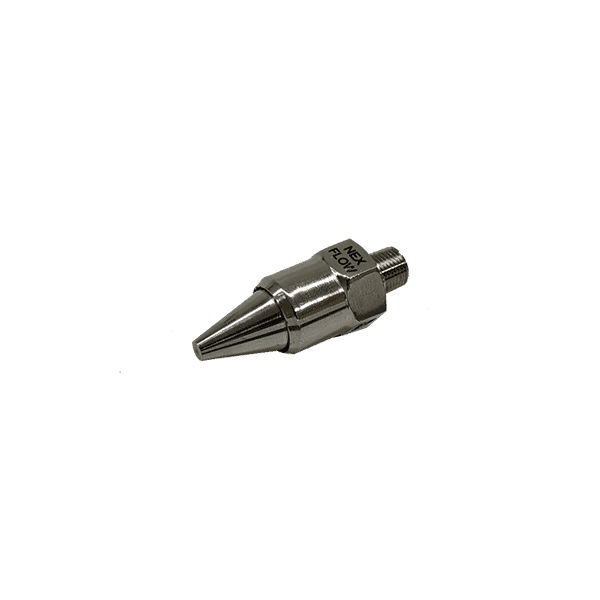

Model 47003 (anodized aluminium) Model 47003S (303/304 Stainless Steel) and Model 47003S-316L (316L Stainless Steel) – These are common standard strength nozzles with a 1/8” male NPT connection and ideal for most blow-off applications involving liquids.
Sound level 77 dBA at 3ft (0.91m) at 80 psig (5.5 bar). |
 |

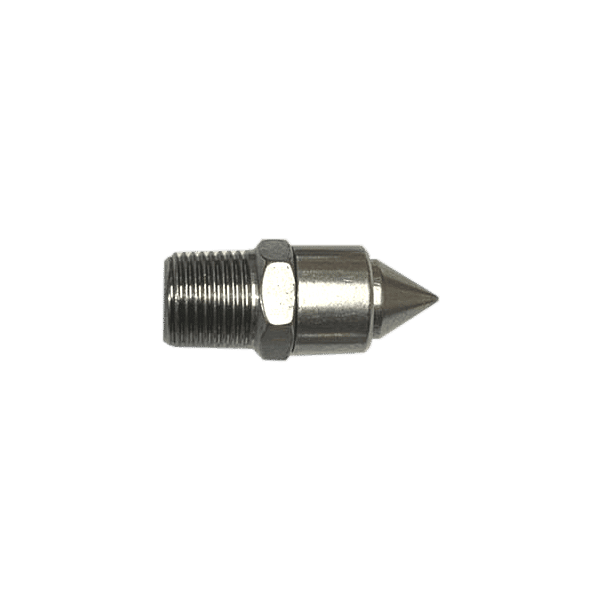

Model 47003SM-316L (316L Stainless Steel) mini nozzle ideal for tight spaces. Comes with a 1/8″ make NPT connection with very efficient design and high force level.
Sound level 77 dBA at 3ft (0.91m) at 80 psig (5.5 bar). |
 |
Model 47004 (anodized aluminium) Model 47004S (303/304 Stainless Steel) and Model 47004S-316L (316L Stainless Steel) – These are strong force nozzles with a 1/4” male NPT connection and ideal for most blow-off applications involving liquids and even light weight parts.
Sound level 78 dBA at 3ft (0.91m) at 80 psig (5.5 bar). |
 |

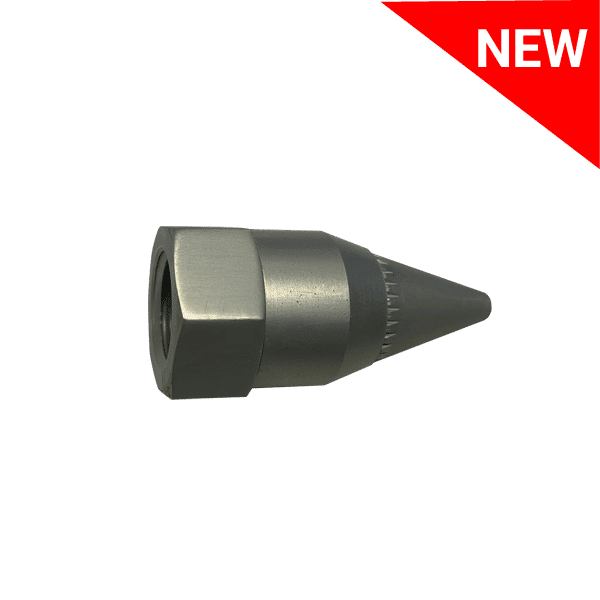

odel 47004F (anodized aluminium) Model 47004FS (303/304 Stainless Steel) and Model 47004FS-316L (316L Stainless Steel) – These are strong force nozzles with a 1/4” female NPT connection and ideal for most blow-off applications involving liquids and even light weight parts.
Sound level 78 dBA at 3ft (0.91m) at 80 psig (5.5 bar). |
 |
odel 47004F (anodized aluminium) Model 47004FS (303/304 Stainless Steel) and Model 47004FS-316L (316L Stainless Steel) – These are strong force nozzles with a 1/4” female NPT connection and ideal for most blow-off applications involving liquids and even light weight parts.
Sound level 78 dBA at 3ft (0.91m) at 80 psig (5.5 bar). |
 |
Model 47010 is extremely powerful. It has a 1/4” female NPT fitting and is fully anodized for long life. With the ‘coanda’ profile you get an extremely strong force at a distance. This is ideal for blow guns and for blowing small parts for part ejection heavier viscosity liquids. The 47010 is a higher force, Nozzle but has less distance for laminar flow than the 47004.
Sound level 78 dBA at 3ft (0.91m) at 80 psig (5.5 bar). |
Standard Air Nozzle Videos
| SKU | Fitting Type | Material | ||
|---|---|---|---|---|
| 47004FP | Female 1/4" | Extra Strong PEEK with Aluminum Sleeve | ||
| 47004F | Female 1/4" | Anodized Aluminum | ||
| 47004FS | Female 1/4" | 303/304 Stainless Steel | ||
| 47004FS-316L | Female 1/4" | 316L Stainless Steel | ||
| 47001-M | Male 5 mm | Brass | ||
| 47001-U | Male 10/32" | Brass | ||
| 47003SM-316L | Male 1/8" | 316L Stainless Steel Mini Nozzle | ||
| 47002 | Male 1/4" - Tube | Brass | ||
| 47003 | Male 1/8" | Anodized Aluminum | ||
| 47003S | Male 1/8" | 303/304 Stainless Steel | ||
| 47003S-316L | Male 1/8" | 316L Stainless Steel | ||
| 47004 | Male 1/4" | Anodized Aluminum | ||
| 47004S | Male 1/4" | 303/304 Stainless Steel | ||
| 47004S-316L | Male 1/4" | 316L Stainless Steel | ||

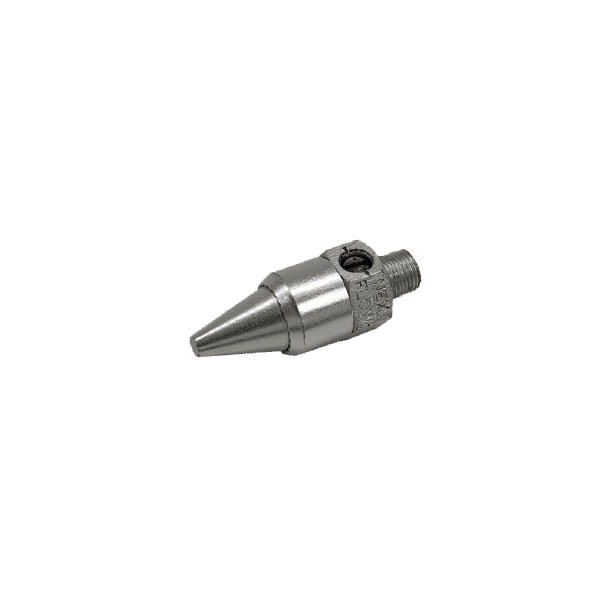

| 47009 | Male 1/8" - Adjustable | Anodized Aluminum | ||

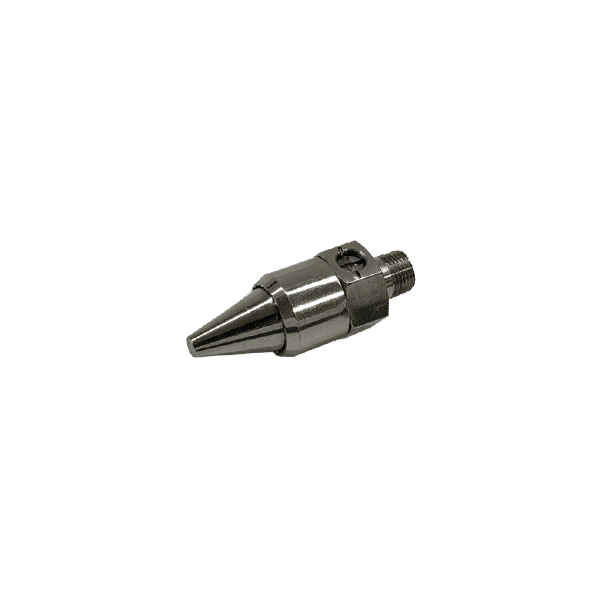

| 47009S | Male 1/8" - Adjustable | 303/304 Stainless Steel | ||
| 47009S-316L | Male 1/8" - Adjustable | 316L Stainless Steel | ||
| 47010 | Female 1/4" | X-Stream™ Aluminum |
