Stainless Steel Silent X-Stream™ Air Blade™ Air Knives

Product Overview

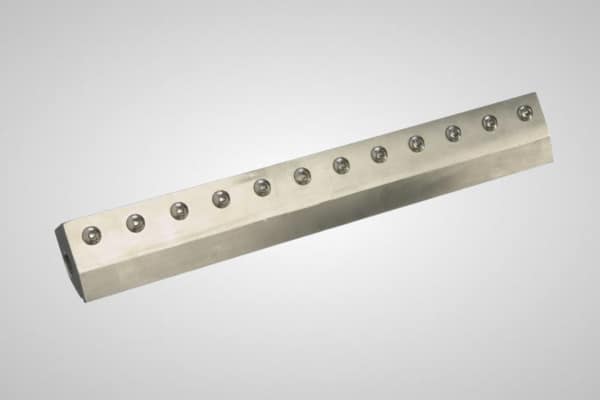

The Stainless Steel X-Stream Air Blade™ Air Knife from Nex Flow™ is easy to install and maintain. It can reduce both compressed air consumption and noise levels. used to blow off liquid or debris from products as they travel on conveyors.

It produces a “laminar” flow of air using the Coanda effect. This draws a large volume of air from the surrounding area along with the small amount of compressed air from the Air-Blade. It also produces an output flow up to 40 times.

Our air knife systems payback on compressed air savings can be seen in some applications.

Features / Advantages

  • Quiet – 69 dBA for most applications
  • Made of Anodized Aluminum, Hard Anodized Aluminum, 303/304 Stainless or 316L Stainless Steel.
  • 40:1 air amplification
  • Stainless Steel shim
  • Uniform airflow across entire length
  • Variable force and flow
  • No moving parts – maintenance free
  • Easy mounting
  • Compact, rugged, easy to install
  • Stainless steel screws in all models

Videos

How The Silent X-Stream™ Air-Blade™ Air Knife Works

Compressed air enters the air knife at the rear (or end) ports at (A). Air is entrained at point (B) and (D) by the compressed air stream that leaves the air knife from a small gap at point (C). The entrained air follows the profile that directs the airflow in a perfectly straight line to create a uniform sheet of air along the entire length of the Air Blade™ air knife. The amplified air stream maximized velocity and force are maximized as a well-defined sheet of laminar flow with minimal wind shear for reduced energy use in the blow off and cooling.

Performance

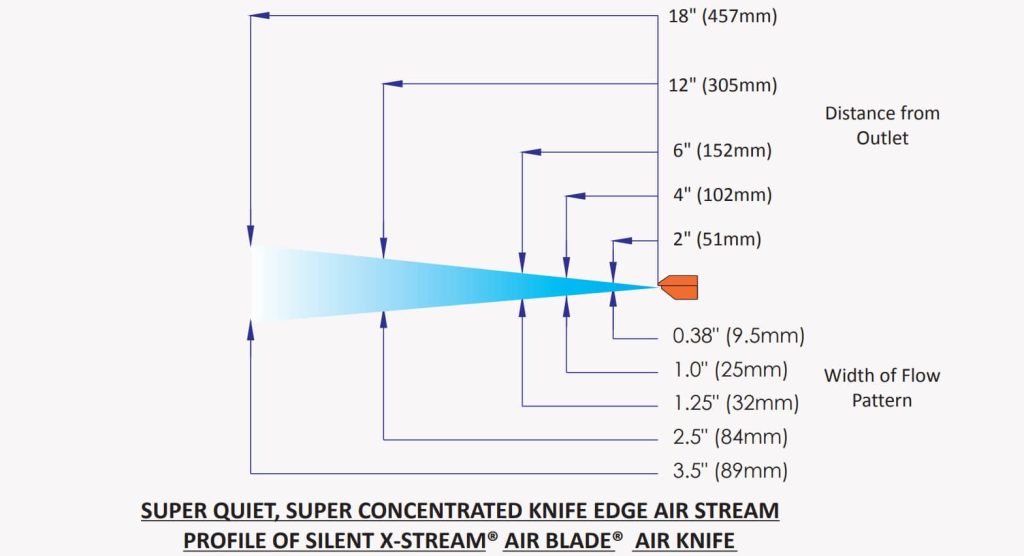

air knife dimension

NOTE : Force and Velocity at  6″(152mm) from target

10002X – 2″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.01 0.08 0.20 0.35 0.54 0.77 1.04 1.35 1.70 2.09 2.53 3.00
Flow (SCFM) 0.7 1.6 4.4 7.9 12 17 22 28 34 41 49 57
Velocity (ft/s)* 137 172 207 240 273 304 335 365 394 422 449 475
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 4.54 36.3 90.7 159 245 349 472 612 771 948 1148 1361
Flow (SLPM) 19.8 45.3 125 224 340 481 623 793 963 1161 1388 1614
Velocity (m/s)* 41.8 52.4 63.1 73.2 83.2 92.7 102 111 120 129 137 145
10003X – 3″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.01 0.09 0.21 0.38 0.58 0.83 1.11 1.44 1.80 2.21 2.63 3.14
Flow (SCFM) 0.9 2.6 5.7 9.3 14 19 24 31 37 44 52 60
Velocity (ft/s)* 45.7 71.2 95.9 120 142 164 185 206 225 243 261 277
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 4.54 40.8 95.3 172 263 376 503 653 816 1002 1193 1424
Flow (SLPM) 25.5 73.6 161 263 396 538 680 878 1048 1246 1472 1699
Velocity (m/s)* 13.9 21.7 29.2 36.6 43.3 50.0 56.4 62.8 68.6 74.1 79.6 84.4
10006X – 6″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.02 0.11 0.28 0.49 0.73 1.02 1.35 1.72 2.12 2.57 3.05 3.58
Flow (SCFM) 2.4 5.6 9.4 14 19 24 30 37 45 53 61 70
Velocity (ft/s)* 8.90 24.7 39.7 53.7 66.9 79.1 90.4 101 110 119 127 134
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 9.07 49.9 127 222 331 463 612 780 962 1166 1383 1624
Flow (SLPM) 68.0 159 266 396 538 680 850 1048 1274 1501 1727 1982
Velocity (m/s)* 2.7 7.5 12.1 16.4 20.4 24.1 27.6 30.8 33.5 36.3 38.7 40.8
10009X – 9″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.02 0.15 0.36 0.61 0.90 1.23 1.59 2.00 2.45 2.94 3.47 4.04
Flow (SCFM) 4.7 8.6 13 18 24 30 37 44 52 61 70 80
Velocity (ft/s)* 8.79 21.4 33.1 43.9 53.8 62.8 70.9 78.1 84.4 89.8 94.3 97.9
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 9.07 68.0 163 277 408 558 721 907 1111 1334 1574 1833
Flow (SLPM) 133.1 244 368 510 680 850 1048 1246 1472 1727 1982 2265
Velocity (m/s)* 2.7 6.5 10.1 13.4 16.4 19.1 21.6 23.8 25.7 27.4 28.7 29.8
10012X – 12″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.01 0.20 0.46 0.75 1.08 1.45 1.86 2.31 2.80 3.33 3.90 4.51
Flow (SCFM) 7.0 11 17 22 29 36 43 51 60 70 80 90
Velocity (ft/s)* 11.0 22.0 32.1 41.3 49.6 57.0 63.4 69.0 73.7 77.5 80.3 82.4
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 4.54 90.7 209 340 490 658 844 1048 1270 1510 1769 2046
Flow (SLPM) 198 311 481 623 821 1019 1218 1444 1699 1982 2265 2549
Velocity (m/s)* 3.4 6.7 9.8 12.6 15.1 17.4 19.3 21.0 22.5 23.6 24.5 25.1
10015X – 15″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.02 0.28 0.57 0.90 1.27 1.69 2.14 2.63 3.12 3.74 4.35 5.00
Flow (SCFM) 9.3 14 20 27 34 41 50 59 69 78 89 100
Velocity (ft/s)* 13.0 23.1 32.2 40.4 47.7 54.1 59.7 64.3 68.0 70.8 72.7 73.8
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 9.07 127 259 408 576 767 971 1193 1415 1696 1973 2268
Flow (SLPM) 263 396 566 765 963 1161 1416 1671 1954 2209 2520 2832
Velocity (m/s)* 4.0 7.0 9.8 12.3 14.5 16.5 18.2 19.6 20.7 21.6 22.2 22.5
10018X – 18″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.07 0.36 0.67 1.07 1.49 1.94 2.44 2.97 3.55 4.16 4.82 5.50
Flow (SCFM) 11 17 24 31 39 47 56 66 76 87 98 110
Velocity (ft/s)* 14.7 24.1 32.6 40.2 46.8 52.6 57.5 61.4 64.5 66.7 68.0 68.3
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 31.8 163 304 485 676 880 1107 1347 1610 1887 2186 2495
Flow (SLPM) 311 481 680 878 1104 1331 1586 1869 2152 2464 2775 3115
Velocity (m/s)* 4.5 7.3 9.9 12.3 14.3 16.0 17.5 18.7 19.7 20.3 20.7 20.8
10024X – 24″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.21 0.59 1.01 1.46 1.96 2.50 3.08 3.70 4.36 5.06 5.80 6.58
Flow (SCFM) 16 23 31 40 49 58 69 80 91 103 116 129
Velocity (ft/s)* 17.2 25.7 33.4 40.2 46.0 51.0 55.1 58.2 60.5 61.9 62.3 61.9
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 95.25 267.6 458 662 889 1134 1397 1678 1978 2295 2631 2985
Flow (SLPM) 453 651 878 1133 1388 1642 1954 2265 2577 2917 3285 3653
Velocity (m/s)* 5.2 7.8 10.2 12.3 14.0 15.5 16.8 17.7 18.4 18.9 19.0 18.9
10030X – 30″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.41 0.87 1.38 1.92 2.50 3.13 3.78 4.49 5.24 6.02 6.84 7.70
Flow (SCFM) 21 29 38 48 59 70 81 94 107 120 134 149
Velocity (ft/s)* 18.8 26.9 34.1 40.4 45.7 50.2 53.8 56.5 58.3 59.1 59.1 58.2
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 186 395 626 871 1134 1420 1715 2037 2377 2731 3103 3493
Flow (SLPM) 595 821 1076 1359 1671 1982 2294 2662 3030 3398 3794 4219
Velocity (m/s)* 5.7 8.2 10.4 12.3 13.9 15.3 16.4 17.2 17.8 18.0 18.0 17.7
10036X – 36″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.68 1.22 1.81 2.44 3.11 3.81 4.56 5.35 6.18 7.04 7.95 8.90
Flow (SCFM) 25 35 45 57 68 81 94 108 122 137 153 168
Velocity (ft/s)* 20.0 27.8 34.6 40.6 45.6 49.8 53.0 55.4 56.8 57.4 57.1 55.8
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 308 553 821 1107 1411 1728 2068 2427 2803 3193 3606 4037
Flow (SLPM) 708 991 1274 1614 1926 2294 2662 3058 3455 3879 4332 4757
Velocity (m/s)* 6.1 8.5 10.5 12.4 13.9 15.2 16.2 16.9 17.3 17.5 17.4 17.0
10042X – 42″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 1.01 1.65 2.32 3.03 3.78 4.67 5.40 6.27 7.18 8.13 9.12 10.15
Flow (SCFM) 29 40 52 65 78 92 107 122 137 153 170 188
Velocity (ft/s)* 20.9 28.4 35.0 40.7 45.6 49.5 52.5 54.6 55.9 56.2 55.6 54.1
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 458 748 1052 1374 1715 2118 2449 2844 3257 3688 4137 4604
Flow (SLPM) 821 1133 1472 1841 2209 2605 3030 3455 3879 4332 4814 5324
Velocity (m/s)* 6.4 8.7 10.7 12.4 13.9 15.1 16.0 16.6 17.0 17.1 16.9 16.5
10048X – 48″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 1.41 2.13 2.88 3.68 4.51 5.39 6.30 7.26 8.25 9.29 10.36 11.48
Flow (SCFM) 33 46 59 73 88 103 119 135 152 170 188 207
Velocity (ft/s)* 21.6 28.9 35.4 40.9 45.6 49.3 52.2 54.1 55.2 55.3 54.6 52.9
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 640 966 1306 1669 2046 2445 2858 3293 3742 4214 4699 5207
Flow (SLPM) 934 1303 1671 2067 2492 2917 3370 3823 4304 4814 5324 5862
Velocity (m/s)* 6.6 8.8 10.8 12.5 13.9 15.0 15.9 16.5 16.8 16.9 16.6 16.1
10054X – 54″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 1.88 2.67 3.51 4.40 5.31 6.27 7.27 8.31 9.39 10.51 11.67 12.87
Flow (SCFM) 37 51 66 81 97 114 131 149 167 186 206 226
Velocity (ft/s)* 22.1 29.3 35.6 41.0 45.6 49.2 51.9 53.7 54.6 54.6 53.8 52.0
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 853 1211 1592 1996 2409 2844 3298 3769 4259 4767 5293 5838
Flow (SLPM) 1048 1444 1869 2294 2747 3228 3710 4219 4729 5267 5833 6400
Velocity (m/s)* 6.7 8.9 10.9 12.5 13.9 15.0 15.8 16.4 16.6 16.6 16.4 15.8

** NOTE : Force and Velocity at  6″(152mm) from target **

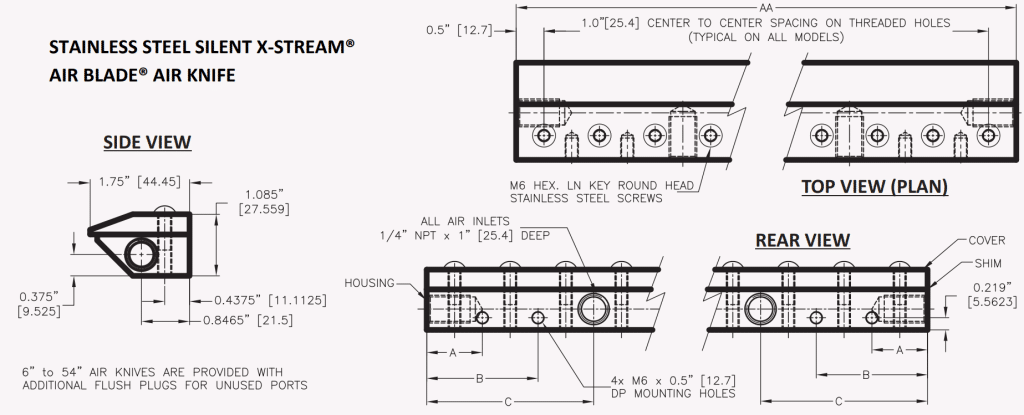

Dimensions

The Air-Blade™ – X-Stream™ is available in thirteen (13) standard lengths: 2″ (51mm), 3″ (76mm), 6″ (150mm), 9″ (229mm), 12″ (300mm), 15” (381mm), 18″ (457mm), 24″ (609.5mm), 30″ (761mm), 36″ (914mm), 42” (1067 mm), 48” (1219 mm), 54” (1372 mm)

Special lengths of our X-Stream™ Air-Blade™ are available on special order including lengths combining several units.

PART NO. AA Inches (mm) A Inches (mm) B Inches (mm) C Inches (mm) No. of Rear Inlets (Side Inlets)
10002X 2”(50.8) N/A N/A 1”(25.4) 1(0)
10003X 3”(76.2) .641”(16.3) N/A 1.5”(38.1) 1(0)
10006X 6”(152) 1”(25.4) 2”(50.8) 3”(76.2) 1(2)
10009X 9”(228.6) 1”(25.4) 2”(50.8) 3”(76.2) 2(2)
10012X 12”(304.8) 1”(25.4) 2”(50.8) 3”(76.2) 2(2)
10015X 15”(381) 1”(25.4) 2”(50.8) 4”(101.6) 2(2)
10018X 18”(457.2) 1”(25.4) 2”(50.8) 5”(127.0) 2(2)
10024X 24”(609.6) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10030X 30”(762) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10036X 36”(914.4) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10042X 42”(1066.8) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10048X 48”(1219.2) 1”(25.4) 2”(50.8) 9”(228.6) 3(2)
10054X 54”(1371.6) 1”(25.4) 2”(50.8) 9”(228.6) 3(2)
Stainless Steel X-Stream Series Air Blades™ Air Knives / Stainless Shims for All X-Stream Air Knives
PART NO. DESCRIPTION Size Price US Dollars
10002XS Stainless X-Stream Full-Flow Air Blade Only 2″ $178.00
10003XS Stainless X-Stream Full-Flow Air Blade Only 3″ $252.00
10006XS Stainless X-Stream Full-Flow Air Blade Only 6″ $315.00
10009XS Stainless X-Stream Full-Flow Air Blade Only 9″ $410.00
10012XS Stainless X-Stream Full-Flow Air Blade Only 12″ $462.00
10015XS Stainless X-Stream Full-Flow Air Blade Only 15″ $504.00
10018XS Stainless X-Stream Full-Flow Air Blade Only 18″ $546.00
10024XS Stainless X-Stream Full-Flow Air Blade Only 24″ $672.00
10030XS Stainless X-Stream Full-Flow Air Blade Only 30″ $840.00
10036XS Stainless X-Stream Full-Flow Air Blade Only 36″ $987.00
10042XS Stainless X-Stream Full-Flow Air Blade Only 42″ $1,155.00
11002XS SS X-Strm. Air Blade plus filter with auto drain model 90004 2″ $273.00
11003XS SS X-Strm. Air Blade plus filter with auto drain model 90004 3″ $347.00
11006XS SS X-Strm. Air Blade plus filter with auto drain model 90004 6″ $410.00
11009XS SS X-Strm. Air Blade plus filter with auto drain model 90004 9″ $505.00
11012XS SS X-Strm. Air Blade plus filter with auto drain model 90004 12″ $557.00
11015XS SS X-Strm. Air Blade plus filter with auto drain model 90004 15″ $599.00
11018XS SS X-Strm. Air Blade plus filter with auto drain model 90001 18″ $641.00
11024XS SS X-Strm. Air Blade plus filter with auto drain model 90001 24″ $767.00
11030XS SS X-Strm. Air Blade plus filter with auto drain model 90002 30″ $998.00
11036XS SS X-Strm. Air Blade plus filter with auto drain model 90002 36″ $1,145.00
11042XS SS X-Strm. Air Blade plus filter with auto drain model 90002 42″ $1,313.00
12002XS SS X-Strm. AB + filter 90004 + reg. with gage model 90008 2″ $323.00
12003XS SS X-Strm. AB + filter 90004 + reg. with gage model 90008 3″ $397.00
12006XS SS X-Strm. AB + filter 90004 + reg. with gage model 90008 6″ $460.00
12009XS SS X-Strm. AB + filter 90004 + reg. with gage model 90008 9″ $555.00
12012XS SS X-Strm. AB + filter 90004 + reg.r with gage model 90008 12″ $607.00
12015XS SS X-Strm. AB + filter 90004 + reg.r with gage model 90008 15″ $649.00
12018XS SS X-Strm. AB + filter 90001 + reg. with gage model 90008 18″ $691.00
12024XS SS X-Strm. AB + filter 90001+ reg. with gage model 90009 24″ $857.00
12030XS SS X-Strm. AB + filter 90002+ reg. with gage model 90009 30″ $1,088.00
12036XS SS X-Strm. AB + filter 90002+ reg. with gage model 90009 36″ $1,235.00
12042XS SS X-Strm. AB + filter 90002+ reg. with gage model 90009 42″ $1,403.00
X-Stream™ Air Blade™ Coupling Kit
PART NO. DESCRIPTION Size Price US Dollars
10900X X-Stream Air Blade Coupling Kit c/w 10 screws $36.00
10900XHA X-Stream Hard Anodized Air Blade Coupling Kit c/w 10 screws $52.00
10900XS Stainless X-Stream Air Blade Coupling Kit c/w 10 screws $68.00

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.

website : www.nexflow.com

email : sales@nexflow.com


+ Overview

Product Overview

The Stainless Steel X-Stream Air Blade™ Air Knife from Nex Flow™ is easy to install and maintain. It can reduce both compressed air consumption and noise levels. used to blow off liquid or debris from products as they travel on conveyors.

It produces a “laminar” flow of air using the Coanda effect. This draws a large volume of air from the surrounding area along with the small amount of compressed air from the Air-Blade. It also produces an output flow up to 40 times.

Our air knife systems payback on compressed air savings can be seen in some applications.

+ Features

Features / Advantages

  • Quiet – 69 dBA for most applications
  • Made of Anodized Aluminum, Hard Anodized Aluminum, 303/304 Stainless or 316L Stainless Steel.
  • 40:1 air amplification
  • Stainless Steel shim
  • Uniform airflow across entire length
  • Variable force and flow
  • No moving parts – maintenance free
  • Easy mounting
  • Compact, rugged, easy to install
  • Stainless steel screws in all models
+ Videos

Videos

How The Silent X-Stream™ Air-Blade™ Air Knife Works

Compressed air enters the air knife at the rear (or end) ports at (A). Air is entrained at point (B) and (D) by the compressed air stream that leaves the air knife from a small gap at point (C). The entrained air follows the profile that directs the airflow in a perfectly straight line to create a uniform sheet of air along the entire length of the Air Blade™ air knife. The amplified air stream maximized velocity and force are maximized as a well-defined sheet of laminar flow with minimal wind shear for reduced energy use in the blow off and cooling.

+ Performance

Performance

air knife dimension

NOTE : Force and Velocity at  6″(152mm) from target

10002X – 2″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.01 0.08 0.20 0.35 0.54 0.77 1.04 1.35 1.70 2.09 2.53 3.00
Flow (SCFM) 0.7 1.6 4.4 7.9 12 17 22 28 34 41 49 57
Velocity (ft/s)* 137 172 207 240 273 304 335 365 394 422 449 475
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 4.54 36.3 90.7 159 245 349 472 612 771 948 1148 1361
Flow (SLPM) 19.8 45.3 125 224 340 481 623 793 963 1161 1388 1614
Velocity (m/s)* 41.8 52.4 63.1 73.2 83.2 92.7 102 111 120 129 137 145
10003X – 3″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.01 0.09 0.21 0.38 0.58 0.83 1.11 1.44 1.80 2.21 2.63 3.14
Flow (SCFM) 0.9 2.6 5.7 9.3 14 19 24 31 37 44 52 60
Velocity (ft/s)* 45.7 71.2 95.9 120 142 164 185 206 225 243 261 277
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 4.54 40.8 95.3 172 263 376 503 653 816 1002 1193 1424
Flow (SLPM) 25.5 73.6 161 263 396 538 680 878 1048 1246 1472 1699
Velocity (m/s)* 13.9 21.7 29.2 36.6 43.3 50.0 56.4 62.8 68.6 74.1 79.6 84.4
10006X – 6″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.02 0.11 0.28 0.49 0.73 1.02 1.35 1.72 2.12 2.57 3.05 3.58
Flow (SCFM) 2.4 5.6 9.4 14 19 24 30 37 45 53 61 70
Velocity (ft/s)* 8.90 24.7 39.7 53.7 66.9 79.1 90.4 101 110 119 127 134
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 9.07 49.9 127 222 331 463 612 780 962 1166 1383 1624
Flow (SLPM) 68.0 159 266 396 538 680 850 1048 1274 1501 1727 1982
Velocity (m/s)* 2.7 7.5 12.1 16.4 20.4 24.1 27.6 30.8 33.5 36.3 38.7 40.8
10009X – 9″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.02 0.15 0.36 0.61 0.90 1.23 1.59 2.00 2.45 2.94 3.47 4.04
Flow (SCFM) 4.7 8.6 13 18 24 30 37 44 52 61 70 80
Velocity (ft/s)* 8.79 21.4 33.1 43.9 53.8 62.8 70.9 78.1 84.4 89.8 94.3 97.9
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 9.07 68.0 163 277 408 558 721 907 1111 1334 1574 1833
Flow (SLPM) 133.1 244 368 510 680 850 1048 1246 1472 1727 1982 2265
Velocity (m/s)* 2.7 6.5 10.1 13.4 16.4 19.1 21.6 23.8 25.7 27.4 28.7 29.8
10012X – 12″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.01 0.20 0.46 0.75 1.08 1.45 1.86 2.31 2.80 3.33 3.90 4.51
Flow (SCFM) 7.0 11 17 22 29 36 43 51 60 70 80 90
Velocity (ft/s)* 11.0 22.0 32.1 41.3 49.6 57.0 63.4 69.0 73.7 77.5 80.3 82.4
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 4.54 90.7 209 340 490 658 844 1048 1270 1510 1769 2046
Flow (SLPM) 198 311 481 623 821 1019 1218 1444 1699 1982 2265 2549
Velocity (m/s)* 3.4 6.7 9.8 12.6 15.1 17.4 19.3 21.0 22.5 23.6 24.5 25.1
10015X – 15″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.02 0.28 0.57 0.90 1.27 1.69 2.14 2.63 3.12 3.74 4.35 5.00
Flow (SCFM) 9.3 14 20 27 34 41 50 59 69 78 89 100
Velocity (ft/s)* 13.0 23.1 32.2 40.4 47.7 54.1 59.7 64.3 68.0 70.8 72.7 73.8
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 9.07 127 259 408 576 767 971 1193 1415 1696 1973 2268
Flow (SLPM) 263 396 566 765 963 1161 1416 1671 1954 2209 2520 2832
Velocity (m/s)* 4.0 7.0 9.8 12.3 14.5 16.5 18.2 19.6 20.7 21.6 22.2 22.5
10018X – 18″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.07 0.36 0.67 1.07 1.49 1.94 2.44 2.97 3.55 4.16 4.82 5.50
Flow (SCFM) 11 17 24 31 39 47 56 66 76 87 98 110
Velocity (ft/s)* 14.7 24.1 32.6 40.2 46.8 52.6 57.5 61.4 64.5 66.7 68.0 68.3
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 31.8 163 304 485 676 880 1107 1347 1610 1887 2186 2495
Flow (SLPM) 311 481 680 878 1104 1331 1586 1869 2152 2464 2775 3115
Velocity (m/s)* 4.5 7.3 9.9 12.3 14.3 16.0 17.5 18.7 19.7 20.3 20.7 20.8
10024X – 24″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.21 0.59 1.01 1.46 1.96 2.50 3.08 3.70 4.36 5.06 5.80 6.58
Flow (SCFM) 16 23 31 40 49 58 69 80 91 103 116 129
Velocity (ft/s)* 17.2 25.7 33.4 40.2 46.0 51.0 55.1 58.2 60.5 61.9 62.3 61.9
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 95.25 267.6 458 662 889 1134 1397 1678 1978 2295 2631 2985
Flow (SLPM) 453 651 878 1133 1388 1642 1954 2265 2577 2917 3285 3653
Velocity (m/s)* 5.2 7.8 10.2 12.3 14.0 15.5 16.8 17.7 18.4 18.9 19.0 18.9
10030X – 30″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.41 0.87 1.38 1.92 2.50 3.13 3.78 4.49 5.24 6.02 6.84 7.70
Flow (SCFM) 21 29 38 48 59 70 81 94 107 120 134 149
Velocity (ft/s)* 18.8 26.9 34.1 40.4 45.7 50.2 53.8 56.5 58.3 59.1 59.1 58.2
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 186 395 626 871 1134 1420 1715 2037 2377 2731 3103 3493
Flow (SLPM) 595 821 1076 1359 1671 1982 2294 2662 3030 3398 3794 4219
Velocity (m/s)* 5.7 8.2 10.4 12.3 13.9 15.3 16.4 17.2 17.8 18.0 18.0 17.7
10036X – 36″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 0.68 1.22 1.81 2.44 3.11 3.81 4.56 5.35 6.18 7.04 7.95 8.90
Flow (SCFM) 25 35 45 57 68 81 94 108 122 137 153 168
Velocity (ft/s)* 20.0 27.8 34.6 40.6 45.6 49.8 53.0 55.4 56.8 57.4 57.1 55.8
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 308 553 821 1107 1411 1728 2068 2427 2803 3193 3606 4037
Flow (SLPM) 708 991 1274 1614 1926 2294 2662 3058 3455 3879 4332 4757
Velocity (m/s)* 6.1 8.5 10.5 12.4 13.9 15.2 16.2 16.9 17.3 17.5 17.4 17.0
10042X – 42″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 1.01 1.65 2.32 3.03 3.78 4.67 5.40 6.27 7.18 8.13 9.12 10.15
Flow (SCFM) 29 40 52 65 78 92 107 122 137 153 170 188
Velocity (ft/s)* 20.9 28.4 35.0 40.7 45.6 49.5 52.5 54.6 55.9 56.2 55.6 54.1
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 458 748 1052 1374 1715 2118 2449 2844 3257 3688 4137 4604
Flow (SLPM) 821 1133 1472 1841 2209 2605 3030 3455 3879 4332 4814 5324
Velocity (m/s)* 6.4 8.7 10.7 12.4 13.9 15.1 16.0 16.6 17.0 17.1 16.9 16.5
10048X – 48″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 1.41 2.13 2.88 3.68 4.51 5.39 6.30 7.26 8.25 9.29 10.36 11.48
Flow (SCFM) 33 46 59 73 88 103 119 135 152 170 188 207
Velocity (ft/s)* 21.6 28.9 35.4 40.9 45.6 49.3 52.2 54.1 55.2 55.3 54.6 52.9
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 640 966 1306 1669 2046 2445 2858 3293 3742 4214 4699 5207
Flow (SLPM) 934 1303 1671 2067 2492 2917 3370 3823 4304 4814 5324 5862
Velocity (m/s)* 6.6 8.8 10.8 12.5 13.9 15.0 15.9 16.5 16.8 16.9 16.6 16.1
10054X – 54″ Aluminum X-Stream Air Knife
Inlet Pressure (PSIG) 10 20 30 40 50 60 70 80 90 100 110 120
Force (lbs)* 1.88 2.67 3.51 4.40 5.31 6.27 7.27 8.31 9.39 10.51 11.67 12.87
Flow (SCFM) 37 51 66 81 97 114 131 149 167 186 206 226
Velocity (ft/s)* 22.1 29.3 35.6 41.0 45.6 49.2 51.9 53.7 54.6 54.6 53.8 52.0
Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4
Force (grams)* 853 1211 1592 1996 2409 2844 3298 3769 4259 4767 5293 5838
Flow (SLPM) 1048 1444 1869 2294 2747 3228 3710 4219 4729 5267 5833 6400
Velocity (m/s)* 6.7 8.9 10.9 12.5 13.9 15.0 15.8 16.4 16.6 16.6 16.4 15.8

** NOTE : Force and Velocity at  6″(152mm) from target **

+ Dimensions

Dimensions

The Air-Blade™ – X-Stream™ is available in thirteen (13) standard lengths: 2″ (51mm), 3″ (76mm), 6″ (150mm), 9″ (229mm), 12″ (300mm), 15” (381mm), 18″ (457mm), 24″ (609.5mm), 30″ (761mm), 36″ (914mm), 42” (1067 mm), 48” (1219 mm), 54” (1372 mm)

Special lengths of our X-Stream™ Air-Blade™ are available on special order including lengths combining several units.

PART NO. AA Inches (mm) A Inches (mm) B Inches (mm) C Inches (mm) No. of Rear Inlets (Side Inlets)
10002X 2”(50.8) N/A N/A 1”(25.4) 1(0)
10003X 3”(76.2) .641”(16.3) N/A 1.5”(38.1) 1(0)
10006X 6”(152) 1”(25.4) 2”(50.8) 3”(76.2) 1(2)
10009X 9”(228.6) 1”(25.4) 2”(50.8) 3”(76.2) 2(2)
10012X 12”(304.8) 1”(25.4) 2”(50.8) 3”(76.2) 2(2)
10015X 15”(381) 1”(25.4) 2”(50.8) 4”(101.6) 2(2)
10018X 18”(457.2) 1”(25.4) 2”(50.8) 5”(127.0) 2(2)
10024X 24”(609.6) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10030X 30”(762) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10036X 36”(914.4) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10042X 42”(1066.8) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10048X 48”(1219.2) 1”(25.4) 2”(50.8) 9”(228.6) 3(2)
10054X 54”(1371.6) 1”(25.4) 2”(50.8) 9”(228.6) 3(2)
+ Pricing
Stainless Steel X-Stream Series Air Blades™ Air Knives / Stainless Shims for All X-Stream Air Knives
PART NO. DESCRIPTION Size Price US Dollars
10002XS Stainless X-Stream Full-Flow Air Blade Only 2″ $178.00
10003XS Stainless X-Stream Full-Flow Air Blade Only 3″ $252.00
10006XS Stainless X-Stream Full-Flow Air Blade Only 6″ $315.00
10009XS Stainless X-Stream Full-Flow Air Blade Only 9″ $410.00
10012XS Stainless X-Stream Full-Flow Air Blade Only 12″ $462.00
10015XS Stainless X-Stream Full-Flow Air Blade Only 15″ $504.00
10018XS Stainless X-Stream Full-Flow Air Blade Only 18″ $546.00
10024XS Stainless X-Stream Full-Flow Air Blade Only 24″ $672.00
10030XS Stainless X-Stream Full-Flow Air Blade Only 30″ $840.00
10036XS Stainless X-Stream Full-Flow Air Blade Only 36″ $987.00
10042XS Stainless X-Stream Full-Flow Air Blade Only 42″ $1,155.00
11002XS SS X-Strm. Air Blade plus filter with auto drain model 90004 2″ $273.00
11003XS SS X-Strm. Air Blade plus filter with auto drain model 90004 3″ $347.00
11006XS SS X-Strm. Air Blade plus filter with auto drain model 90004 6″ $410.00
11009XS SS X-Strm. Air Blade plus filter with auto drain model 90004 9″ $505.00
11012XS SS X-Strm. Air Blade plus filter with auto drain model 90004 12″ $557.00
11015XS SS X-Strm. Air Blade plus filter with auto drain model 90004 15″ $599.00
11018XS SS X-Strm. Air Blade plus filter with auto drain model 90001 18″ $641.00
11024XS SS X-Strm. Air Blade plus filter with auto drain model 90001 24″ $767.00
11030XS SS X-Strm. Air Blade plus filter with auto drain model 90002 30″ $998.00
11036XS SS X-Strm. Air Blade plus filter with auto drain model 90002 36″ $1,145.00
11042XS SS X-Strm. Air Blade plus filter with auto drain model 90002 42″ $1,313.00
12002XS SS X-Strm. AB + filter 90004 + reg. with gage model 90008 2″ $323.00
12003XS SS X-Strm. AB + filter 90004 + reg. with gage model 90008 3″ $397.00
12006XS SS X-Strm. AB + filter 90004 + reg. with gage model 90008 6″ $460.00
12009XS SS X-Strm. AB + filter 90004 + reg. with gage model 90008 9″ $555.00
12012XS SS X-Strm. AB + filter 90004 + reg.r with gage model 90008 12″ $607.00
12015XS SS X-Strm. AB + filter 90004 + reg.r with gage model 90008 15″ $649.00
12018XS SS X-Strm. AB + filter 90001 + reg. with gage model 90008 18″ $691.00
12024XS SS X-Strm. AB + filter 90001+ reg. with gage model 90009 24″ $857.00
12030XS SS X-Strm. AB + filter 90002+ reg. with gage model 90009 30″ $1,088.00
12036XS SS X-Strm. AB + filter 90002+ reg. with gage model 90009 36″ $1,235.00
12042XS SS X-Strm. AB + filter 90002+ reg. with gage model 90009 42″ $1,403.00
X-Stream™ Air Blade™ Coupling Kit
PART NO. DESCRIPTION Size Price US Dollars
10900X X-Stream Air Blade Coupling Kit c/w 10 screws $36.00
10900XHA X-Stream Hard Anodized Air Blade Coupling Kit c/w 10 screws $52.00
10900XS Stainless X-Stream Air Blade Coupling Kit c/w 10 screws $68.00

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.

website : www.nexflow.com

email : sales@nexflow.com


Contact Us
English

​IS YOUR COMPRESSED AIR SAFE AND USED EFFICIENTLY?
Get Ebook
close-link
Ebook

We use cookies to give you the best online experience. By agreeing you accept the use of cookies in accordance with our cookie policy.
