Product Overview

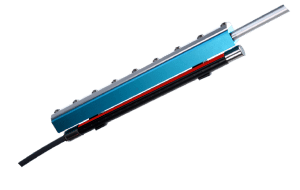

The Standard Air-Blade® Ionizer combines the superior designed Standard Air-Blade® Air Knife with a quality static bar made by Haug, a world leading static controlmanufacturer. Charges can be eliminated quickly, even over large distances and surface area.

The Standard Air-Blade® Air Knife is an efficient and sturdy unit for many blow-off applications. For even greater efficiency and reduced noise levels you can utilize the Silent X-stream® Air Blade®. Both units utilize the quality Haug static bars – the RN bar for most applications or the extra strong VS bars (Triple X versions) for very high static charges and extremely high speeds

The Standard Air-Blade® Ionizer uses a small amount of compressed air for a powerful, and adjustable force with “laminar” flow to eliminate charges in applications where static bars cannot reach or where high speeds are a factor.

Normally the Standard Model RN Haug brand static bar can address most applications. For extremely high speeds and high charges the extra powerful VS model is used. For washdown applications (such as pharmaceutical areas), even a washable model is available at extra cost.

All Haug static bars come with a patented safety connector and fully shielded cable. The power supplies are “repairable” and are so well made, that we offer a two year warranty on them (one year on the bars).

Features / Advantages

  • Connections on the back or ends
  • It flows from end to end (full flow).
  • Stainless steel models are available for high temperature and corrosive models.
  • Models are designed for easy cleaning and prevention of dirt entering the static bar, minimizing potential damage.
  • Patented connectors with the ground intrinsic to the cable design.
  • Instant ON/OFF with no moving parts.
  • Repairable Power Supply with a two year warranty.
  • Flexible mounting options.
  • Units can be mounted end to end for longer lengths with no air gap.
  • High temperature, extra strength, and even a unique washable stainless steel model is available for special applications or as required.
  • Ease of cleaning and maintenance.
  • No separate ground connection that can be cut and cause sparks or accidentally shock personnel.
  • Conserves air use when not required.
  • Eliminates one costly area which is power supply replacement. 2 year warranty assure quality product.

Videos

How The Standard Air Blade® Ionizer Works

Compressed air enters at the rear (or end) ports at (A) (B). Air then follows the Coanda profile of the air knife and along the front face flowing over the ionizing (static) bar (C) creating a fine sheet of ionized air along the entire length of the ionizer as it leaves the air knife at point (D). The amplified air stream maximizes velocity and force and provides a well-defined sheet of ionized laminar flow for reduced energy use in the blow off of statically charged surfaces and to remove static at long distances from the assembly. For highly charged surfaces a stronger static bar is available (Triple X Air Blade ionizers).

Power Supplies

Static Elimination Air-Blade® Ionizer power supplies are available in various models including a unit that will monitor the static bars for effectiveness.

Voltage Model Number Description
110V 80111 Two outlet (Can connect two static bars)
220V 80112 Two outlet (Can connect two static bars)
110V 80121 Four outlet (Can connect four static bars)
220V 80122 Four outlet (Can connect four static bars)
110V 80221 Four outlet (Can connect four static bars, plus monitors performance. Can be connected into a system alarm or indicating light.)
220V 80222 Four outlet (Can connect four static bars, plus monitors performance. Can be connected into a system alarm or indicating light.)
110V 80321 Two outlet (Can connect two static bars)
220V 80322 Two outlet (Can connect two static bars)
110V 80421 Two outlet (Can connect two static bars)
220V 80422 Two outlet (Can connect two static bars)
110V 80521 Two outlet (Can connect two static bars)
220V 80522 Two outlet (Can connect two static bars)

Specifications

Static Elimination Air-Blade® Ionizers are supplied in several versions.

Standard Air-Blade® Ionizer with a standard Nex Flow Air Blade® Air Knife and standard strength Model RN Haug static bar. These units are ideal for most static removal applications.
X-Stream Air-Blade® Ionizer with the extra quiet Nex Flow X-Stream Air Blade® Air Knife and standard Strength Model RN Haug static bar. These units apply to most static removal applications where noise levels must be extremely low.
Super Triple Standard Air-Blade® Ionizer with a standard Nex Flow Air Blade® Air Knife and a triple strength Model VS Haug static bar. These units are ideal for static removal applications where static charges are unusually high and extra ionization is required such as very high speed applications or materials that can produce very high charges such as Mylar or tissue.
Super Triple X-Stream Air-Blade® Ionizer with extra quiet Nex Flow X-Stream Air Blade® Air Knife and a triple strength Mode VS Haug static bar. These units are ideal for static removal applications where static charges are unusually high and extra ionization is required and where noise issues are important.
Special materials and static bars can be utilized for unique applications. If greater blow-off force is required, shims may be added for higher capacities.

Length Model Numbers
(X means with X-Stream Air-Blade®,150XX with RN static bar, 160xx means with VS static Bar)
3″ 15003/15003X
6″ 15006/15006X/16006/16006X
12″ 15012/15012X/16012/16012X
18″ 15018/15018X/16018/16018X
24″ 15024/15024X/16024/16024X
30″ 15030/15030X/15030/16030X
36″ 15036/15036X/16036/16036X
42″ 15042/15042X/16042/16042X
48″ 15048/15048X/16048/16048X
54″ 15054/15054X/16054/16054X
60″ 15060/15060X/16060/16060X
66″ 15066/15066X/16066/16066X
72″ 15072/15072X/16072/16072X

Dimension

standard ion air knives dimension
MODEL SIZES A QA
15003/16003 3″ (76mm) 44mm 125mm
15006/16006 6″ (150mm) 90mm 200mm
15008/16008 8″ (203mm) 143mm 254mm
15012/16012 12″ (305mm) 250mm 351mm
15018/16018 18″ (457mm) 390mm 508mm
15024/16024 24″ (610mm) 543mm 661mm
15036/16036 36″ (914mm) 844mm 965mm
15042/16042 42″ (1,067mm) 1,000mm 1,092mm
15048/16048 48″ (1,219mm) 1,152mm 1,245mm
15054/16054 54″ (1,372mm) 1,310mm 1,397mm

NOTE: ENC-2 Power Supply has North American electrical approval

S-Line Power Supply has CE electrical approval

WP Data Tables
WP Data Tables

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.

website : www.nexflow.com

email : sales@nexflow.com
