Product Overview

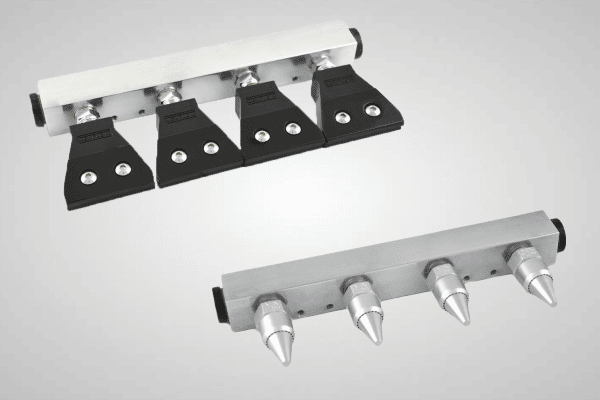

Vintage Manifold Systems are compact manifold blow off systems that allow for the Nex Flow® Air Edgers® or Standard Air Nozzles or Air Mag® Nozzles to be mounted in combinations of two, four and 6 items for blow off and cooling applications where air knives may not be applicable and when a set length of blow-off is required. These systems are available in aluminum and stainless steel, and provided with any of the air nozzles, and in particular the Air Edger® flat jet nozzle, it creates a more powerful air knife effect when regular air knives are not powerful enough.
The first step is to investigate whether or not extra force is required, because it also can mean additional air consumption. Simply check the force and air consumption as described for each air knife. If not adequate for the particular application, then you look at the alternatives:
Manifold with:
Standard Air Nozzles – used where cooling is the main goal and flow is most important
Air Mag® Nozzles – used when force is most important
Air Edger® Flat Nozzles – used when the air knife effect is required but with much higher force.
Another consideration is the specific application. For example, if there is a risk of the blow off piece being damaged, it is sometimes better to use a manifold with several lesser cost prices verses one more costly air knife. So if one or two pieces are damaged, it is easier to replace. Another example is the requirement for variable force or flow. A row of adjustable nozzles can be placed on a manifold and set for different flow rates across the manifold.
Special sizes and shapes of manifolds are also available upon request. Mounting holes are provided on the manifolds for ease of use.
Applications
- Part Cleaning
- Chip removal
- Part drying
- Part cooling
Features / Advantages
- Reduced compressed air cost
- 10 dBA average noise reduction
- Conserve compressed air
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Improved production
Videos
Specifications
| Part Number | Description |
|---|---|
| 46002 | Two outlet Aluminum Anodized Manifold – total flow to 80 SCFM @ 80 PSIG |
| 46004 | Four outlet Aluminum Anodized Manifold – total flow to 140 SCFM @ 80 PSIG |
| 46006 | Six outlet Aluminum Anodized Manifold – total flow to 220 SCFM @ 80 PSIG |
| 46002HF | Two outlet Aluminum Anodized Manifold – total flow to 120 SCFM @ 80 PSIG |
| 46004HF | Four outlet Aluminum Anodized Manifold – total flow to 210 SCFM @ 80 PSIG |
| 46006HF | Six outlet Aluminum Anodized Manifold – total flow to 320 SCFM @ 80 PSIG |
| Part Number | Description |
|---|---|
| 46002S | Two outlet Stainless Steel Manifold – total flow to 80 SCFM @ 80 PSIG |
| 46004S | Four outlet Stainless Steel Manifold – total flow to 140 SCFM @ 80 PSIG |
| 46006S | Six outlet Stainless Steel Manifold – total flow to 220 SCFM @ 80 PSIG |
| 46002SHF | Two outlet Stainless Steel Manifold – total flow to 120 SCFM @ 80 PSIG |
| 46004SHF | Four outlet Stainless Steel Manifold – total flow to 210 SCFM @ 80 PSIG |
| 46006SHF | Six outlet Stainless Steel Manifold – total flow to 320 SCFM @ 80 PSIG |
NOTE: Using one air inlet allows for 50% of rated flow – using both end air inlets allows for up to 100% of rated flow.
Dimensions
46002+47011
46002HF+47011
46004+47011
46004HF+47011
46006+47011
46006HF+47011
46002+47004
46002HF+47004
46004+47004
46004HF+47004
46006+47004
46006HF+47004
| Vintage Manifolds | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 46002 | Two outlet Aluminum Anodized Manifold - total flow to 80 SCFM @ 80 PSIG | - | $150.00 |
| 46004 | Four outlet Aluminum Anodized Manifold - total flow to 140 SCFM @ 80 PSIG | - | $175.00 |
| 46006 | Six outlet Aluminum Anodized Manifold - total flow to 220 SCFM @ 80 PSIG | - | $220.00 |
| 46008 | Eight outlet Aluminum Anodized Manifold - total flow to 280 SCFM @ 80 PSIG | - | $250.00 |
| 46002HF | Two outlet Aluminum Anodized Manifold - total flow to 120 SCFM @ 80 PSIG | - | $165.00 |
| 46004HF | Four outlet Aluminum Anodized Manifold - total flow to 210 SCFM @ 80 PSIG | - | $185.00 |
| 46006HF | Six outlet Aluminum Anodized Manifold - total flow to 320 SCFM @ 80 PSIG | - | $240.00 |
| 46008HF | Eight outlet Aluminum Anodized Manifold - total flow to 450 SCFM @ 80 PSIG | - | $270.00 |
| 46002S | Two outlet Stainless Steel Manifold - total flow to 80 SCFM @ 80 PSIG | - | $300.00 |
| 46004S | Four outlet Stainless Steel Manifold - total flow to 140 SCFM @ 80 PSIG | - | $370.00 |
| 46006S | Six outlet Stainless Steel Manifold - total flow to 220 SCFM @ 80 PSIG | - | $450.00 |
| 46008S | Eight outlet Stainless Steel Manifold - total flow to 280 SCFM @ 80 PSIG | - | $510.00 |
| 46002SHF | Two outlet Stainless Steel Manifold - total flow to 120 SCFM @ 80 PSIG | - | $360.00 |
| 46004SHF | Four outlet Stainless Steel Manifold - total flow to 210 SCFM @ 80 PSIG | - | $400.00 |
| 46006SHF | Six outlet Stainless Steel Manifold - total flow to 320 SCFM @ 80 PSIG | - | $490.00 |
| 46008SHF | Eight outlet Stainless Steel Manifold - total flow to 450 SCFM @ 80 PSIG | - | $560.00 |
| 46000BB1 | Mounting Brackets for 46002, 46002S and 46002HF, 46002SHF | - | $25.00 |
| 46000BB2 | Mounting Brackets for 46004, 46004S and 46004HF, 46004SHF+46006, 46006S and 46006HF, 46006SHF+46008, 46008S and 46008HF, 46008SHF (all brackets included 2 M4 screws) | - | $25.00 |
| More Information or Buy Here |
| Manifold Mounted Systems | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 46002-47011-4 | Two outlet 46002 Maniold with two premounted 47011-4 | - | $333.00 |
| 46002-47011-8 | Two outlet 46002 Maniold with two premounted 47011-8 | - | $333.00 |
| 46002-47011-12 | Two outlet 46002 Maniold with two premounted 47011-12 | - | $333.00 |
| 46002HF-47011-16 | Two outlet 46002HF Maniold with two premounted 47011-16 | - | $348.00 |
| 46002HF-47011-20 | Two outlet 46002HF Maniold with two premounted 47011-20 | - | $348.00 |
| 46002HF-47011-24 | Two outlet 46002HF Maniold with two premounted 47011-24 | - | $348.00 |
| 46002HF-47011-28 | Two outlet 46002HF Maniold with two premounted 47011-28 | - | $348.00 |
| 46004-47011-4 | Four outlet 46004 Maniold with four premounted 47011-4 | - | $521.00 |
| 46004-47011-8 | Four outlet 46004 Maniold with four premounted 47011-8 | - | $521.00 |
| 46004-47011-12 | Four outlet 46004 Maniold with four premounted 47011-12 | - | $521.00 |
| 46004HF-47011-16 | Four outlet 46004HF Maniold with four premounted 47011-16 | - | $531.00 |
| 46004HF-47011-20 | Four outlet 46004HF Maniold with four premounted 47011-20 | - | $531.00 |
| 46004HF-47011-24 | Four outlet 46004HF Maniold with four premounted 47011-24 | - | $531.00 |
| 46004HF-47011-28 | Four outlet 46004HF Maniold with four premounted 47011-28 | - | $531.00 |
| 46006-47011-4 | Six outlet 46004 Maniold with six premounted 47011-4 | - | $729.00 |
| 46006-47011-8 | Six outlet 46004 Maniold with six premounted 47011-8 | - | $729.00 |
| 46006-47011-12 | Six outlet 46004 Maniold with six premounted 47011-12 | - | $729.00 |
| 46006HF-47011-16 | Six outlet 46004HF Maniold with six premounted 47011-16 | - | $749.00 |
| 46006HF-47011-20 | Six outlet 46004HF Maniold with six premounted 47011-20 | - | $749.00 |
| 46006HF-47011-24 | Six outlet 46004HF Maniold with six premounted 47011-24 | - | $749.00 |
| 46006HF-47011-28 | Six outlet 46004HF Maniold with six premounted 47011-28 | - | $749.00 |
| 46008-47011-4 | Eight outlet 46008 Manifold with eight premounted 47011-4 | - | $922.00 |
| 46008-47011-8 | Eight outlet 46008 Manifold with eight premounted 47011-8 | - | $922.00 |
| 46008-47011-12 | Eight outlet 46008 Manifold with eight premounted 47011-12 | - | $922.00 |
| 46008HF-47011-18 | Eight outlet 46008HF Manifold with eight premounted 47011-16 | - | $922.00 |
| 46008HF-47011-20 | Eight outlet 46008HF Manifold with eight premounted 47011-20 | - | $922.00 |
| 46008HF-47011-24 | Eight outlet 46008HF Manifold with eight premounted 47011-24 | - | $922.00 |
| 46008HF-47011-28 | Eight outlet 46008HF Manifold with eight premounted 47011-28 | - | $922.00 |
| 46002S-47011-316L-4 | Two outlet 46002S Maniold with two premounted 47011-316L-4 | - | $616.00 |
| 46002S-47011-316L-8 | Two outlet 46002S Maniold with two premounted 47011-316L-8 | - | $616.00 |
| 46002S-47011-316L-12 | Two outlet 46002S Maniold with two premounted 47011-316L-12 | - | $616.00 |
| 46002SHF-47011-316L-16 | Two outlet 46002SHF Maniold with two premounted 47011-316L-16 | - | $676.00 |
| 46002SHF-47011-316L--20 | Two outlet 46002SHF Maniold with two premounted 47011-316L-20 | - | $676.00 |
| 46002SHF-47011-316L-24 | Two outlet 46002SHF Maniold with two premounted 47011-316L-24 | - | $676.00 |
| 46002HFS-47011-316L-28 | Two outlet 46002SHF Maniold with two premounted 47011-316L-28 | - | $676.00 |
| 46004S-47011-316L-4 | Four outlet 46004S Maniold with four premounted 47011-316L-4 | - | $957.00 |
| 46004S-47011-316L-8 | Four outlet 46004S Maniold with four premounted 47011-316L-8 | - | $957.00 |
| 46004S-47011-316L-12 | Four outlet 46004S Maniold with four premounted 47011-316L-12 | - | $957.00 |
| 46004SHF-47011-316L-16 | Four outlet 46004SHF Maniold with four premounted 47011-316L-16 | - | $987.00 |
| 46004SHF-47011-316L-20 | Four outlet 46004SHF Maniold with four premounted 47011-316L-20 | - | $987.00 |
| 46004SHF-47011-316L-24 | Four outlet 46004SHF Maniold with four premounted 47011-316L-24 | - | $987.00 |
| 46004SHF-47011-316L-28 | Four outlet 46004SHF Maniold with four premounted 47011-316L-28 | - | $987.00 |
| 46006S-47011-316L-4 | Six outlet 46006S Maniold with six premounted 47011-316L-4 | - | $1,318.00 |
| 46006S-47011-316L-8 | Six outlet 46006S Maniold with six premounted 47011-316L-8 | - | $1,318.00 |
| 46006S-47011-316L-12 | Six outlet 46006S Maniold with six premounted 47011-316L-12 | - | $1,318.00 |
| 46006SHF-47011-316L-16 | Six outlet 46004SHF Maniold with six premounted 47011-316L-16 | - | $1,358.00 |
| 46006SHF-47011-316L-20 | Six outlet 46004SHF Maniold with six premounted 47011-316L-20 | - | $1,358.00 |
| 46006SHF-47011-316L-24 | Six outlet 46004SHF Maniold with six premounted 47011-316L-24 | - | $1,358.00 |
| 46006SHF-47011-316L-28 | Six outlet 46004SHF Maniold with six premounted 47011-316L-28 | - | $1,358.00 |
| 46008S-47011-316L-4 | Eight outlet 46008S Manifold with eight premounted 47011-316L-4 | - | $1,664.00 |
| 46008-47011-316L-8 | Eight outlet 46008S Manifold with eight premounted 47011-316L-8 | - | $1,664.00 |
| 46008S-47011-316L-12 | Eight outlet 46008S Manifold with eight premounted 47011-316L-12 | - | $1,664.00 |
| 46008SHF-47011-316L-16 | Eight outlet 46008SHF Manifold with eight premounted 47011-316L-16 | - | $1,664.00 |
| 46008SHF-47011-316L-20 | Eight outlet 46008SHF Manifold with eight premounted 47011-316L-20 | - | $1,664.00 |
| 46008SHF-47011-316L-24 | Eight outlet 46008SHF Manifold with eight premounted 47011-316L-24 | - | $1,664.00 |
| 46008SHF-47011-316L-28 | Eight outlet 46008SHF Manifold with eight premounted 47011-316L-28 | - | $1,664.00 |
| 46002-47004 | Two outlet 46002 Manifold with two premounted 47004 | - | $235.00 |
| 46004-47004 | Four outlet 46004 Manifold with four premounted 47004 | - | $325.00 |
| 46006-47004 | Six outlet 46006 Manifold with six premounted 47004 | - | $435.00 |
| 46008-47004 | Six outlet 46008 Manifold with eight premounted 47004 | - | $530.00 |
| 46002S-47004S | Two outlet 46002S Manifold with two premounted 47004S | - | $451.00 |
| 46004S-47004S | Four outlet 46004S Manifold with four premounted 47004S | - | $642.00 |
| 46006S-47004S | Six outlet 46006S Manifold with six premounted 47004S | - | $843.00 |
| 46008S-47004S | Eight outlet 46008S Manifold with eight premounted 47004S | - | $1,024.00 |
| 46002S-47004S-316L | Two outlet 46002S Manifold with two premounted 47004S-316L | - | $509.00 |
| 46004S-47004S-316L | Four outlet 46004S Manifold with four premounted 47004S-316L | - | $758.00 |
| 46006S-47004S-316L | Six outlet 46006S Manifold with six premounted 47004S-316L | - | $1,017.00 |
| 46008S-47004S-316L | Eight outlet 46008S Manifold with eight premounted 47004S-316L | - | $1,256.00 |
| 46002-47004AMF | Two outlet 46002 Manifold with two premounted 47004AMF | - | $275.00 |
| 46004-47004AMF | Four outlet 46004 Manifold with four premounted 47004AMF | - | $405.00 |
| 46006-47004AMF | Six outlet 46006 Manifold with six premounted 47004AMF | - | $555.00 |
| 46008-47004AMF | Eight outlet 46008 Manifold with eight premounted 47004AMF | - | $690.00 |
| 46002S-47004AMFS | Two outlet 46002S Manifold with two premounted 47004AMFS | - | $563.00 |
| 46004S-47004AMFS | Four outlet 46004S Manifold with four premounted 47004AMFS | - | $866.00 |
| 46006S-47004AMFS | Six outlet 46006S Manifold with six premounted 47004AMFS | - | $1,179.00 |
| 46008S-47004AMFS | Eight outlet 46008S Manifold with eight premounted 47004AMFS | - | $1,472.00 |
| More Information or Buy Here |
| Spare Part for X-Stream® Mounting Systems | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| XMAN00A | SPARE ALUMINUM CLAMP FOR X-STREAM MOUNTING SYSTEMS | - | $30.00 |
| XMAN00S | SPARE STAINLESS STEEL CLAMP FOR X-STREAM MOUNTING SYSTEMS | - | $60.00 |
| More Information or Buy Here |
Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA
Richmond Hill, ON, Canada for international orders.
