Air Jets

Product Overview

Nex Flow Air Jets

Nex Flow™ Air Jets are designed to reduce compressed air consumption and noise levels while maintaining laminar flow for strong blow off force.  They entrain large volumes of surrounding air through the Jet (similar to Air Amplifiers) and are more efficient flow amplifiers than Air Nozzles. They cover a larger blow off target than a Nozzle and are ideal for part ejection. An air nozzle provides a point force,  while the Air Jet acts more like a “hand” and covers a larger area in blow off coverage.  This can be an advantage in part ejection where two nozzles are normally required to “direct” the ejected part while only one jet is needed.  This can dramatically reduce energy required as well as have a lower footprint on the machine.

All Nex Flow™ Air Jets meet OSHA standard CFR 1910.242(b) for dead end pressure. Noise levels are dramatically reduced in addition to lowering energy use.

Applications Include:

  • Part Ejection
  • Cool small parts
  • Part Drying
  • Chip Removal
  • Air Assist

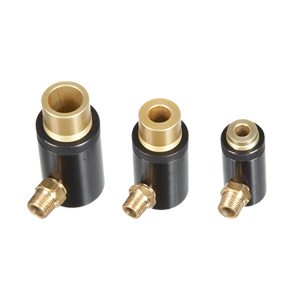

From Left to right: High Flow Air Jet (Model 45001)   High Force Air Jet (Model 45002)     Mini Air Jet (Model 45003)

From Left to right: High Flow Air Jet (Model 45001)   High Force Air Jet (Model 45002)     Mini Air Jet (Model 45003)

Nex Flow™ has three basic designs:  The High Force Air Jet is the most popular to provide a concentrated high force and is the most popular style used for part ejection.   The High Velocity Air Jet has a wider air exit and used mostly for cooling although it also has a high blow off force, but less than that of the High Force one.   The Mini Air Jet was developed for tight spaces where a wider area output is required as compared to the point force of a nozzle. Each design is adjustable.

With each Adjustable Air Jet, the flow and force can be set and “locked” in place with the lock ring for your particular application.

Ne Flow Air Jets

Model 45001/45002 – High Flow Air Jet and High Force Air Jet are physically the same size. The only difference is a larger exit opening in the High Flow version for the amplified air flow. The high flow system is used more for cooling and light blow-off while the high force version is used mainly for heavier blow-off applications.  Material is anodized aluminum.

Brass Air Jet

Model 45002B – High Force Air Jet in brass. The gap can be set and locked into place. The gap setting value is marked on the body for accurate setting.  Ideal for heavy blow-off applications

316L Stainless Steel Air Jets

Model 45002S – High Force Air Jet in 316L Stainless Steel. The gap setting, with value marked on the body, can be locked into place. Ideal for high temperature and for food service heavy blow-off applications as well as for corrosive environments.

Mini Air Jet

Model 45003 – Mini Air Jet is the most compact with high force.  It is adjustable and ideal for tight spaces. This is a unique size to Nex Flow™ and there is no equivalent competitive system.

Fat Air Jet

Model 45004 – Fat Air Jet Air Amplifier is the largest jet/smallest air amplifier with the same design as the high performance air jets to give you the most optimal performance with an adjustable gap and lock ring to set the gap in place.

Features / Advantages

  • Reduced compressed air cost
  • 10 dBA average noise reduction
  • Conserve compressed air
  • Compact
  • Improved safety
  • Meets OSHA noise level requirements
  • Improved production

Videos

Air Jets – How They Work

Model 45001, 45002 and 45003 Air Jets use a small amount of compressed air entering the annular chamber and exiting via a small ring nozzle at high speed over a “Coanda” profile. This creates a vacuum entraining outside air converting the pressure to a high flow output while maintaining a high blow off force. Energy costs and noise levels are reduced as a result.

Performance

Air Jets Flow Profile
PRESSURE in PSIG (BAR)
40 (2.8) 60 (4.1) 80 (5.5) 100 (6.9) 120 (8.4)
MODEL 45001
(.008″ gap setting)
Force at 12″ from Target
FORCE
oz (grams)
6 (170) 12 (340) 19.5 (583) 27.5 (780) 36 (1021)
FLOW
SCFM (SLPM)
15 (425) 21 (595) 26 (736) 32 (906) 36.5 (1034)
PRESSURE in PSIG (BAR)
40 (2.8) 60 (4.1) 80 (5.5) 100 (6.9) 120 (8.4)
MODEL 45002
MODEL 45002B
MODEL 45002S
(.008″ gap setting)
Force at 12″ from Target
FORCE
oz (grams)
11 (312) 19 (539) 27 (766) 35 (992) 43 (1219)
FLOW
SCFM (SLPM)
16 (453) 22 (623) 26.5 (750) 31 (878) 35 (991)
PRESSURE in PSIG (BAR)
40 (2.8) 60 (4.1) 80 (5.5) 100 (6.9) 120 (8.4)
MODEL 45003
(.008″ gap setting)
Force at 12″ from Target
FORCE
oz (grams)
9 (255) 16 (454) 22 (624) 28 (794) 34 (964)
FLOW
SCFM (SLPM)
11.5 (326) 16 (453) 19 (538) 21.5 (609) 24 (680)

Dimensions

Air Jets
PART NO. DESCRIPTION Size Price US Dollars
45001 High Flow Air Jet 1/8″ $57.00
45002 High Force Air Jet 1/8″ $57.00
45003 Mini – High Force Air jet 1/8″ $52.00
45002B Brass High Force Air Jet 1/8″ $63.00
45002S 316L Stainless High Force Air Jet 1/8″ $105.00
45004 High Force Fat Air Jet Amplifier 1/8″ $67.00

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.

website : www.nexflow.com
