Mounting System For Air Blade Air Knives & Amplifiers

PRODUCT OVERVIEW

NEX FLOW MOUNTING SYSTEM FOR AIR BLADE AIR KNIVES & AMPLIFIERS – Flexible and Durable

Mounting Systems for air knives and amplifiers provide a convenient and flexible way to utilize the products for blow-off and cooling applications. All Mounting Systems are made of powder coated steel. One knob controls the infinite flexibility of the system and secures it in place after the air knife or amplifier is properly positioned. Optional magnetic base can secure it to a magnet accepting platform. Rugged and secure positioning.

Secure air knives in place quickly and easily with precision mounting.

Air Blade Air Knife System comes complete with powder coated brackets and stainless steel mounting screws along with the mounting unit itself. Optional magnetic base, otherwise can secure by threading to a surface.

Air Amplifiers can also be securely and accurately placed using the mounting systems.

Standard Model AM10, AM20, and AM40 as well as adjustable Model 40001, and 40002 Air Amplifiers can also be mounted using the mounting arm. TM As with the Air Blade Air Knife System an optional magnetic base can be provided or the unit can be secured by threading to a surface.

FEATURES

  • Flexible and Durable
  • Easy to use and install
  • Powder Coated Steel
  • Optional Magnetic Base

BENEFITS

  • Infinite flexibility
  • Designed for Factory Environments

DIMENSIONS

Model NF60003

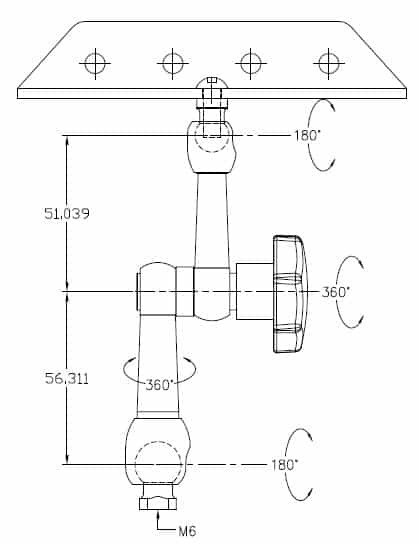

Model NF60003 X-Stream™ Air Blade bracket Model 10997X

Model MG60003 Holder Only

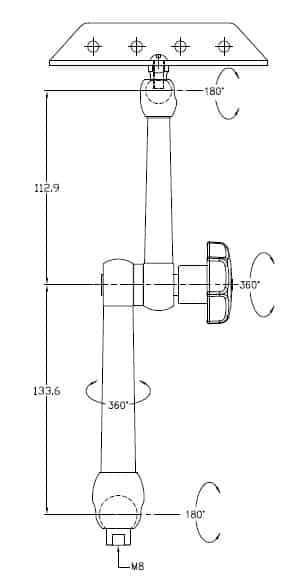

Model MG60003 + X-Stream™ Air Blade bracket Model 10997

Model DG60003 Holder Only

Model DG60003 + X-Stream™ Air Blade bracket Model 10997X

Model MG70003 Holder Only

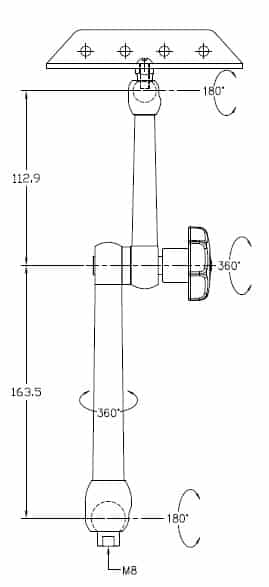

Model MG70003 X-Stream™ Air Blade bracket Model 10997X

MOUNTING SYSTEMS FOR X-STREAM AIR BLADES

PART NO. DESCRIPTION Size Price US Dollars
10991X1 System for 6″ to 18″ aluminum and 6″ to 15″ stainless steel – NF60003 + Bracket + screws $196.00
10991X2 Dual system for aluminum 24″ to 54″ – 2 sets NF60003 + 2 Brackets + screws $392.00
10992X1 System for 18″ stainless steel – DG60003 + Bracket + screws $241.00
10992X2 Dual System for 24″ to 36″ stainless steel – 2 sets DG60003 + 2 Brackets + screws $482.00
10993X2 Dual System for 42″to 48″ stainless steel – 2 sets MG60003+ 2 brackets + screws $602.00
10994X2 Dual System for 54″ stainless steel – 2 sets MG70003+ 2 brackets + screws $650.00

MOUNTING SYSTEMS FOR STANDARD AIR BLADES

PART NO. DESCRIPTION Size Price US Dollars
10991A1 System for 6″ to 18″ aluminum and 6″ to 15″ stainless steel – NF60003 + Bracket + screws $196.00
10991A2 Dual system for aluminum 24″ to 54″ – 2 sets NF60003 + 2 Brackets + screws $392.00
10992A1 System for 18″ stainless steel – DG60003 + Bracket + screws $241.00
10992A2 Dual Systems for 24″ to 36″ stainless steel – 2 sets DG60003 + 2 Brackets + screws $482.00
40001MTS-MS System for 40001 and 40001G and 40001S – NF60003 + 40001MTS + screw $179.00
40002MTS-MS System for 40002 and 40002G and 40002S – NF60003 + 40001MTS + screw $191.00

MOUNTING SYSTEMS FOR AIR AMPLIFIERS

PART NO. DESCRIPTION Size Price US Dollars
AMMS System for AM10, AM20, AM40 – NF60003 + screw $161.00

OPTIONAL ITEMS

PART NO. DESCRIPTION Size Price US Dollars
DG0036-AD6060 Optional mounting magnet for Air Blade Mounting System 10991X1, 10991X2 $75.00
(Need two for 10991X2) and 10992X1 and 10992X2 (need two for 10992X2)
DG0036-AD8080 Optional mounting magnet for Air Blade Mounting Systems 10993X2 and $75.00
10994X2 (Need two for 10993X2 and 10994X2)
NF60003 Mounting arm only for 10991X1 and 10991X2 $160.00
DG60003 Mounting arm only for 10992X1 and 10992X2 $205.00
MG60003 Mounting arm only for 10993X2 $265.00
MG70003 Mounting arm only for 10994X2 $289.00
10999X Bracket Only plus Screws (5) $36.00
10998X Screws Only (5 screws per kit) – EACH $10.00
10997X Bracket Only for X-stream air blade $26.00
10999 Bracket for Standard Air Blade (on special order) plus srews (5) $36.00
10997 Bracket Only for Standard air blade $26.00
MS Spare Screw for Amplifier Mounting System $1.00
40001MTS Mounting Bracket for Model 40001, 40001G and 40001S 1-1/4″ $18.00
40002MTS Mounting Bracket for Model 40002, 40002G and 40002S 2″ $30.00

Prices are in USA dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for International orders.

website : www.nexflow.com
