Ring Vac Air Operated Conveyor System

Product Overview

The Nex Flow Ring Vac Air Conveyor is available in both Anodized Aluminum, Heavy Duty Hard Anodized, or All Stainless Steel. Simply clamp a standard hose size to each end of the Ring-Vac® to create this high energy conveying system. There are no moving parts which lend to maintenance free operation while capacity and flow are controlled with a pressure regulator.

Known as Hopper Loaders or Venturi Loaders, originally designed to eliminate manual bending and lifting. Conveying rate depends on density of material ( Lbs / cubic foot ), horizontal run, vertical lift. These vacuum conveyors provide a simple, low cost solution compared to other pneumatic conveying systems

Applications

  • Hopper loading
  • Fiber tensioning
  • Material conveying
  • Waste/trim removal
  • Chip removal
  • Part transfer
  • Filling operations

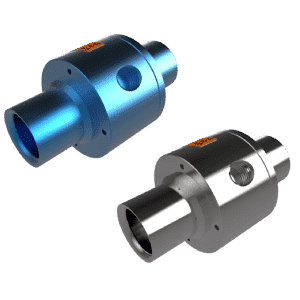

Standard Aluminum / Stainless Steel Ring Vac®

Available in standard and threaded versions for regular and high temperature applications on both 303/304 Stainless Steel or 316L Stainless Steel.
Pneumatic Conveyors – Ring-Vac® Pneumatic Conveying System has virtually no moving parts, conveys material at high rates and over long distances. It utilizes compressed air for a powerful, efficient venturi action along its length in a compact design for high capacity conveying over large distances.

Click for more detail

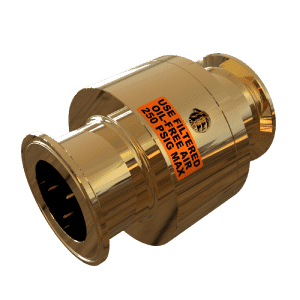

316L Stainless Steel Ring Vac® with Sanitary Flange

The Nex Flow Ring Vac made of 316L stainless steel with standard sanitary flanges are designed for use especially in food an pharmaceutical applications and other sanitary systems to convey materials easily and quickly.  Available for both regular and high temperature applications up to 1200 degrees F. (648 C).

Click for more detail

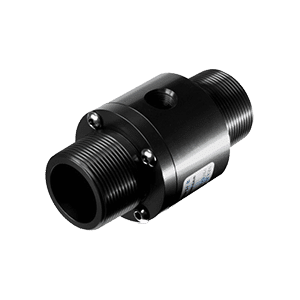

Heavy Duty X-Stream Ring Vac®

X-Stream® Air Conveyors – Ring-Vac® Heavy Duty Pneumatic Conveying System: Available in standard and threaded versions for heavy duty applications. Designed for conveying materials over a longer distance both vertically and horizontally. Made of hardened anodized aluminum it helps prevent premature wear that could occur either with ordinary anodized aluminum or Stainless Steel Ring-Vac®.

Click for more detail

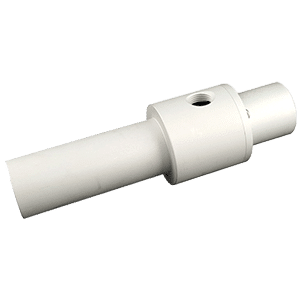

Supreme X-Stream® Non-clogging Pneumatic Conveyor

The X-stream® Supreme Pneumatic Conveying System (XSPC) has virtually no moving parts, conveys material at high rates and over long distances. Intrinsic straight through design prevents clogging. It utilizes compressed air for a powerful, efficient venturi action along its length in a compact design for high capacity conveying over large distances.

Click for more detail

Features / Advantages

  • Compact
  • Quiet
  • No moving parts
  • Fits standard hose or tube
  • Aluminum or stainless steel
  • High throughput capability

Videos

How The Ring Vac® Works

Compressed air enters at point (A) into a annular plenum chamber and injected into the throat of the unit though directed nozzles. These jets of compressed air create a vacuum at the inlet (C) which draws in material and accelerates it through the unit and out at (D) conveying the material over a great vertical or horizontal distance.

WP Data Tables

WP Data Tables
WP Data Tables
WP Data Tables
WP Data Tables
WP Data Tables
WP Data Tables
WP Data Tables
WP Data Tables
Overview

Product Overview

The Nex Flow Ring Vac Air Conveyor is available in both Anodized Aluminum, Heavy Duty Hard Anodized, or All Stainless Steel. Simply clamp a standard hose size to each end of the Ring-Vac® to create this high energy conveying system. There are no moving parts which lend to maintenance free operation while capacity and flow are controlled with a pressure regulator.

Known as Hopper Loaders or Venturi Loaders, originally designed to eliminate manual bending and lifting. Conveying rate depends on density of material ( Lbs / cubic foot ), horizontal run, vertical lift. These vacuum conveyors provide a simple, low cost solution compared to other pneumatic conveying systems

Applications

  • Hopper loading
  • Fiber tensioning
  • Material conveying
  • Waste/trim removal
  • Chip removal
  • Part transfer
  • Filling operations

Standard Aluminum / Stainless Steel Ring Vac®

Available in standard and threaded versions for regular and high temperature applications on both 303/304 Stainless Steel or 316L Stainless Steel.
Pneumatic Conveyors – Ring-Vac® Pneumatic Conveying System has virtually no moving parts, conveys material at high rates and over long distances. It utilizes compressed air for a powerful, efficient venturi action along its length in a compact design for high capacity conveying over large distances.

Click for more detail

316L Stainless Steel Ring Vac® with Sanitary Flange

The Nex Flow Ring Vac made of 316L stainless steel with standard sanitary flanges are designed for use especially in food an pharmaceutical applications and other sanitary systems to convey materials easily and quickly.  Available for both regular and high temperature applications up to 1200 degrees F. (648 C).

Click for more detail

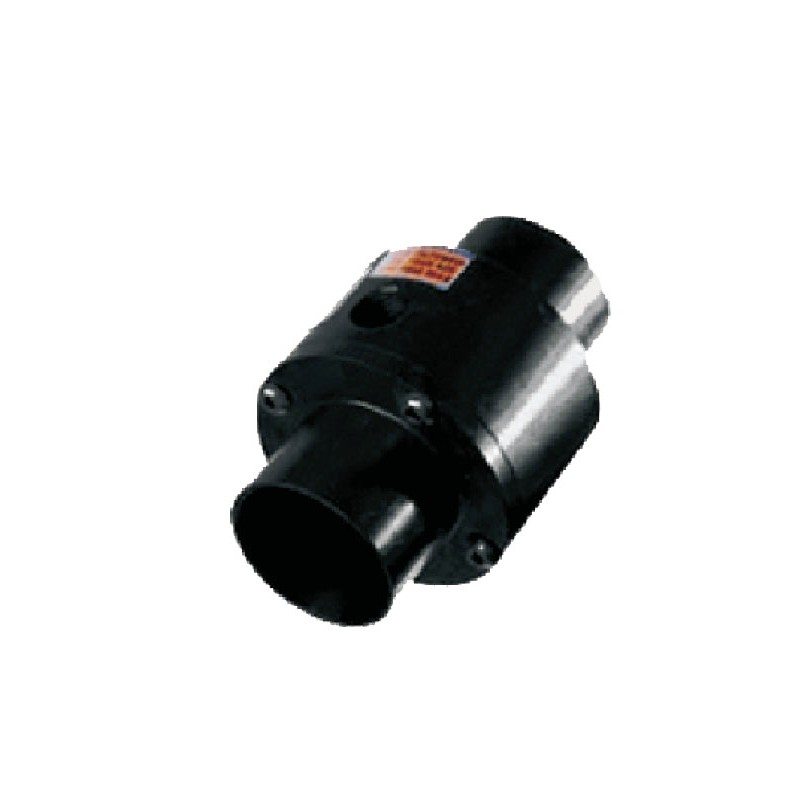

Heavy Duty X-Stream Ring Vac®

X-Stream® Air Conveyors – Ring-Vac® Heavy Duty Pneumatic Conveying System: Available in standard and threaded versions for heavy duty applications. Designed for conveying materials over a longer distance both vertically and horizontally. Made of hardened anodized aluminum it helps prevent premature wear that could occur either with ordinary anodized aluminum or Stainless Steel Ring-Vac®.

Click for more detail

Supreme X-Stream® Non-clogging Pneumatic Conveyor

The X-stream® Supreme Pneumatic Conveying System (XSPC) has virtually no moving parts, conveys material at high rates and over long distances. Intrinsic straight through design prevents clogging. It utilizes compressed air for a powerful, efficient venturi action along its length in a compact design for high capacity conveying over large distances.

Click for more detail
Advantages

Features / Advantages

  • Compact
  • Quiet
  • No moving parts
  • Fits standard hose or tube
  • Aluminum or stainless steel
  • High throughput capability
Videos

Videos

How The Ring Vac® Works

Compressed air enters at point (A) into a annular plenum chamber and injected into the throat of the unit though directed nozzles. These jets of compressed air create a vacuum at the inlet (C) which draws in material and accelerates it through the unit and out at (D) conveying the material over a great vertical or horizontal distance.

Pricing
WP Data Tables

WP Data Tables
WP Data Tables
WP Data Tables
WP Data Tables
WP Data Tables
WP Data Tables
WP Data Tables
WP Data Tables

Ring Vac Compressed Air Operated Conveyor System
