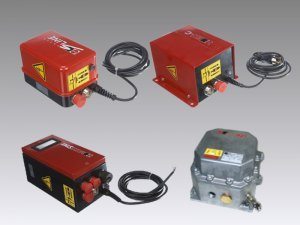

Static Control Power Supplies

Product Overview

Nex Flow™ uses quality Power Supplies from Haug that have several unique features unavailable in competitive units.

HAUG POWER SUPPLIES ARE

1. Repairable – parts are replaceable

2. Several versions – units available with four outlets, two outlets, with or without function monitoring, and in 220V and 110V versions

3. Patent Safety X-2000 Connection – prevents accidental shocks when connecting or disconnecting a static eliminator to the power supply

4. High Reliability and Life – so reliable that we even offer a two year warranty on the power supplies

High Voltage Power Pack Transformers EN-C (2 outlet) and EN-C4 (4 outlet)

HIGH VOLTAGE POWER PACK TRANSFORMERS EN - C (2 OUTLET) AND EN-C4 (4 OUTLET)

Static Control Power Supply EN-C type High Voltage Power Pack. The integrated high-voltage transformer converts applied mains voltage to approx. 7,000 to 8,000 volts. The unit is equipped with two or four high-voltage terminals and an integrated on – off pilot lamp. Transformers are equipped with a modular-type high-voltage transformer. It consists of three main modules, all of which can be replaced individually. This unit is electrically approved for North American installations.

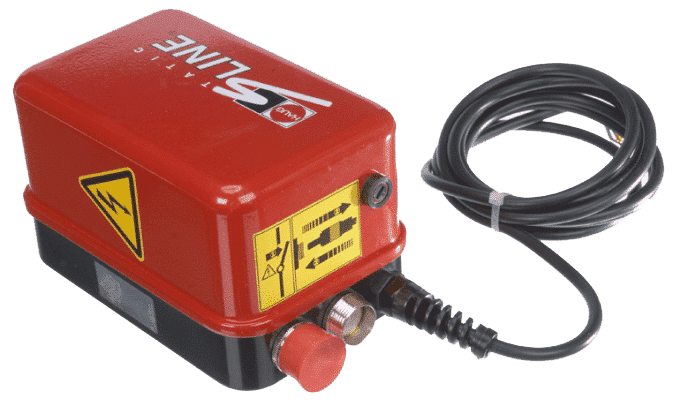

S-Line Power Pack EN SL

S-LINE POWER PACK EN SL

The S-Line power pack comes with two high-voltage connections and meets both North American and European standards. The integrated high-voltage transformer converts applied mains voltage to approx. 7,000 to 8,000 volts. It has an integrated on – off pilot lamp. S-Line power pack EN SL LC – Same as the SL, but with integrated full-electronic function monitoring to constantly monitor all functions of the ionizing system. It alerts the operator of any irregularities by causing the LED indicator integrated in the housing to flash EN SL RLC – Identical in all technical aspects to the EN SL LC but add a signal socket above the earthing sleeve where a fault message can be connected.

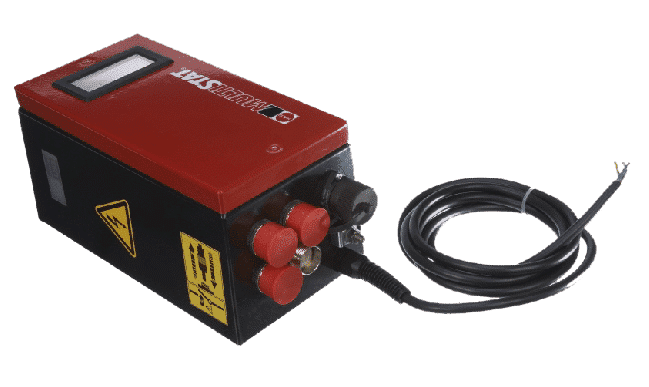

Multistat Power Supply

MULTISTAT POWER SUPPLY

The Multistat power pack provides the optimum in power pack performance and monitoring. The Multistat EX is approved for explosion proof applications (but must be mounted outside the explosion proof area).

EN-92 EX Power Supply

EN - 92 EX POWER SUPPLY

Power pack EN 92 Ex is suitable for direct use in areas with potentially explosive atmospheres (zones 1 or 2).

The units comply with the International ATEX directives. All high-voltage components are accommodated in a flameproof housing. The power pack EN 92 Ex is equipped with two high-voltage ports for the connection of the ionizing units. No long high-voltage cables are required, as the power pack can be installed in the immediate vicinity of the ionizing unit.

Videos

Model

Part Number Description Voltage
North American Approved
80111 Two outlet ENC-2, 110V (Can connect two static bars) 110V
80112 Four outlet ENC-4, 110V (Can connect four static bars) 110V
80121 Two outlet ENC-2, 220V (Can connect two static bars) 220V
80122 Four outlet ENC-4, 220V (Can connect four static bars) 220V
North American and European Approved
80321 Two outlet EN-SL, 110V (Can connect two static bars) 110V
80322 Two outlet EN-SL, 220V (Can connect two static bars) 220V
80421 Two outlet EN SL LC, 110V (Can connect two static bars) 110V
80422 Two outlet EN SL LC, 220V (Can connect two static bars) 220V
80221 Four outlet Multistat, 110V (Can connect four static bars, plus monitors performance. Can be connected into a system alarm or indicating light.) 110V
80222 Four outlet Multistat, 220V (Can connect four static bars plus monitors performance. Can be connected into a system alarm or indicating light.) 220V

Dimensions

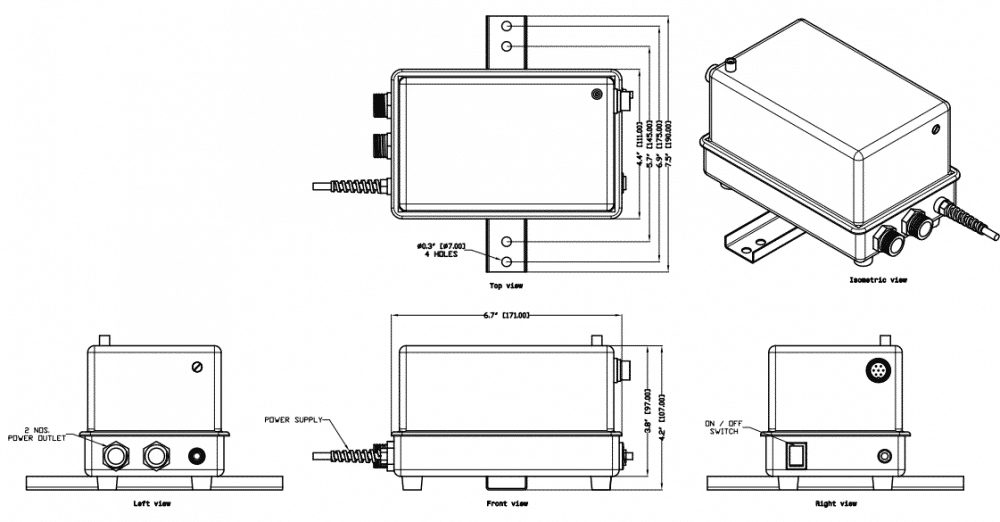

EN SL

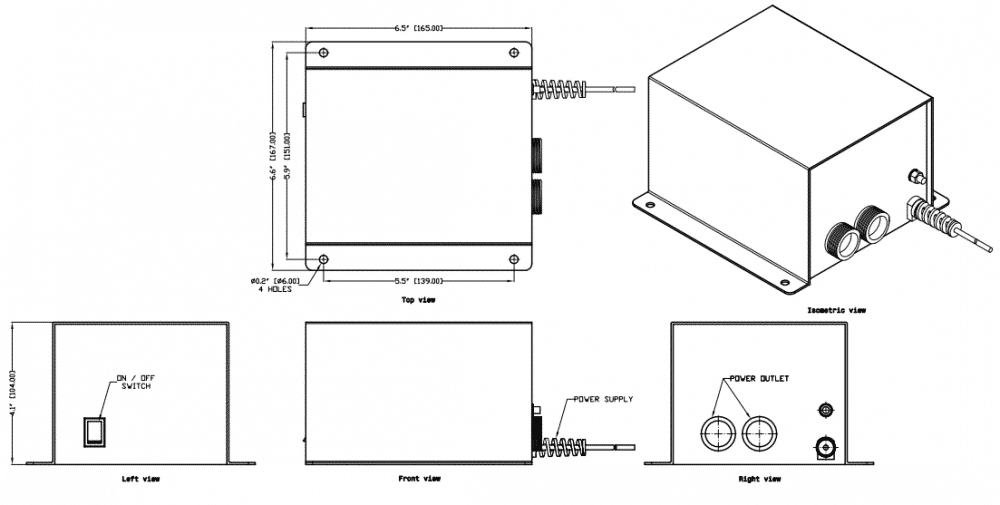

EN - C (2 OUTLET)

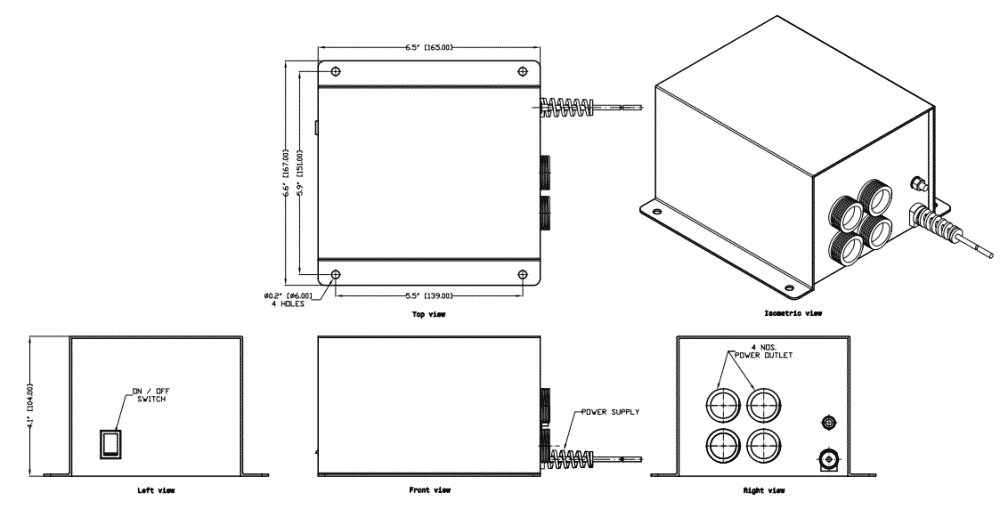

EN - C (4 OUTLET)

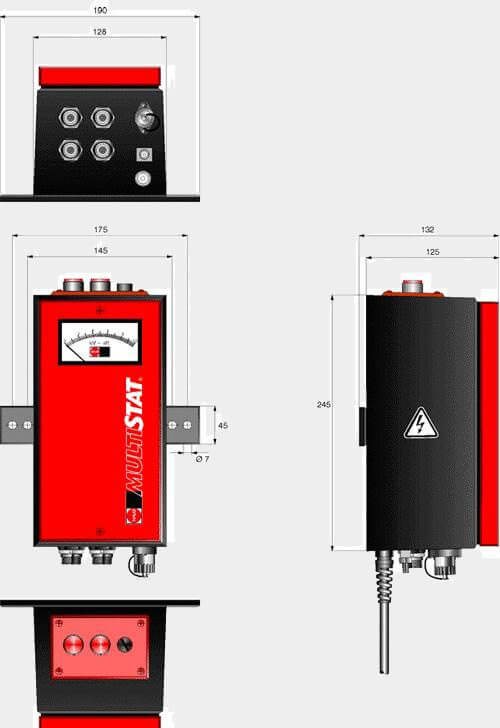

MULTISTAT

Overview

Product Overview

Nex Flow™ uses quality Power Supplies from Haug that have several unique features unavailable in competitive units.

HAUG POWER SUPPLIES ARE

1. Repairable – parts are replaceable

2. Several versions – units available with four outlets, two outlets, with or without function monitoring, and in 220V and 110V versions

3. Patent Safety X-2000 Connection – prevents accidental shocks when connecting or disconnecting a static eliminator to the power supply

4. High Reliability and Life – so reliable that we even offer a two year warranty on the power supplies

High Voltage Power Pack Transformers EN-C (2 outlet) and EN-C4 (4 outlet)

HIGH VOLTAGE POWER PACK TRANSFORMERS EN - C (2 OUTLET) AND EN-C4 (4 OUTLET)

Static Control Power Supply EN-C type High Voltage Power Pack. The integrated high-voltage transformer converts applied mains voltage to approx. 7,000 to 8,000 volts. The unit is equipped with two or four high-voltage terminals and an integrated on – off pilot lamp. Transformers are equipped with a modular-type high-voltage transformer. It consists of three main modules, all of which can be replaced individually. This unit is electrically approved for North American installations.

S-Line Power Pack EN SL

S-LINE POWER PACK EN SL

The S-Line power pack comes with two high-voltage connections and meets both North American and European standards. The integrated high-voltage transformer converts applied mains voltage to approx. 7,000 to 8,000 volts. It has an integrated on – off pilot lamp. S-Line power pack EN SL LC – Same as the SL, but with integrated full-electronic function monitoring to constantly monitor all functions of the ionizing system. It alerts the operator of any irregularities by causing the LED indicator integrated in the housing to flash EN SL RLC – Identical in all technical aspects to the EN SL LC but add a signal socket above the earthing sleeve where a fault message can be connected.

Multistat Power Supply

MULTISTAT POWER SUPPLY

The Multistat power pack provides the optimum in power pack performance and monitoring. The Multistat EX is approved for explosion proof applications (but must be mounted outside the explosion proof area).

EN-92 EX Power Supply

EN - 92 EX POWER SUPPLY

Power pack EN 92 Ex is suitable for direct use in areas with potentially explosive atmospheres (zones 1 or 2).

The units comply with the International ATEX directives. All high-voltage components are accommodated in a flameproof housing. The power pack EN 92 Ex is equipped with two high-voltage ports for the connection of the ionizing units. No long high-voltage cables are required, as the power pack can be installed in the immediate vicinity of the ionizing unit.

Videos

Videos

Models

Model

Part Number Description Voltage
North American Approved
80111 Two outlet ENC-2, 110V (Can connect two static bars) 110V
80112 Four outlet ENC-4, 110V (Can connect four static bars) 110V
80121 Two outlet ENC-2, 220V (Can connect two static bars) 220V
80122 Four outlet ENC-4, 220V (Can connect four static bars) 220V
North American and European Approved
80321 Two outlet EN-SL, 110V (Can connect two static bars) 110V
80322 Two outlet EN-SL, 220V (Can connect two static bars) 220V
80421 Two outlet EN SL LC, 110V (Can connect two static bars) 110V
80422 Two outlet EN SL LC, 220V (Can connect two static bars) 220V
80221 Four outlet Multistat, 110V (Can connect four static bars, plus monitors performance. Can be connected into a system alarm or indicating light.) 110V
80222 Four outlet Multistat, 220V (Can connect four static bars plus monitors performance. Can be connected into a system alarm or indicating light.) 220V
Dimensions

Dimensions

EN SL

EN - C (2 OUTLET)

EN - C (4 OUTLET)

MULTISTAT
