One Point Ionizer OPI

Product Overview

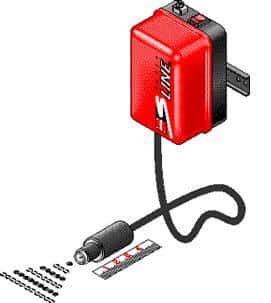

The One Point Ionizer (OPI), which was developed for the neutralization of the smallest of parts, emits positive and negative ions to reliably neutralize spot charges.

Perfectly suited for mounting in tight spaces, the plug of the electrode must simply be connected to the high voltage transformer (power pack) and the unit is ready to be set into operation without tools.

The OPI has proven its value repeatedly in daily use, e.g. in the medical industry. It can also be equipped with compressed air as with the (Mini-Jet Ionizer).

NOTE: The pin carries a high voltage and must not be touched while in operation.

Applications

The OPI is an indispensable production aid for applications in medical and small precision mechanics. This device has proven to be very reliable and efficient for the manufacture of small measuring devices and other tiny “spot” applications.

Cleaning and Maintenance of Ionizing Air Gun

Regular and careful cleaning will ensure long service life and constant efficiency.

Technical

Type OPI Inseparable HV-cable, attached permanently to the bar.
Diameter 16 mm
Length 45 mm
Operating temperature +5∫ C to +50∫ C
Storage / transport temperature -15∫ C to + 60∫ C
Optimum effective distance 30 mm
Smallest bending radius (cable) R 50

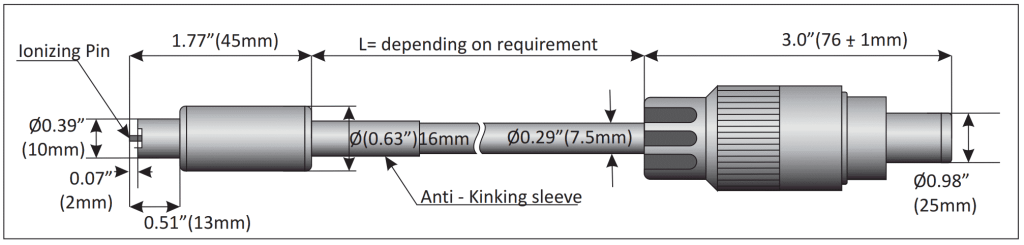

Dimensions

One Point Ionizer

One Point Ionizer
PART NO. DESCRIPTION Size Price US Dollars
17510 ONE POINT SPOT IONIZER c/w 6 feet (2 meters) cable $398.00
17610 JET IONIZER (JET + ONE SPOT ASSEMBLED) $575.00

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.

website : www.nexflow.com

email : sales@nexflow.com


+ Overview

Product Overview

The One Point Ionizer (OPI), which was developed for the neutralization of the smallest of parts, emits positive and negative ions to reliably neutralize spot charges.

Perfectly suited for mounting in tight spaces, the plug of the electrode must simply be connected to the high voltage transformer (power pack) and the unit is ready to be set into operation without tools.

The OPI has proven its value repeatedly in daily use, e.g. in the medical industry. It can also be equipped with compressed air as with the (Mini-Jet Ionizer).

NOTE: The pin carries a high voltage and must not be touched while in operation.

Applications

The OPI is an indispensable production aid for applications in medical and small precision mechanics. This device has proven to be very reliable and efficient for the manufacture of small measuring devices and other tiny “spot” applications.

Cleaning and Maintenance of Ionizing Air Gun

Regular and careful cleaning will ensure long service life and constant efficiency.

+ Technical

Technical

Type OPI Inseparable HV-cable, attached permanently to the bar.
Diameter 16 mm
Length 45 mm
Operating temperature +5∫ C to +50∫ C
Storage / transport temperature -15∫ C to + 60∫ C
Optimum effective distance 30 mm
Smallest bending radius (cable) R 50
+ Dimensions

Dimensions

One Point Ionizer

+ Pricing
One Point Ionizer
PART NO. DESCRIPTION Size Price US Dollars
17510 ONE POINT SPOT IONIZER c/w 6 feet (2 meters) cable $398.00
17610 JET IONIZER (JET + ONE SPOT ASSEMBLED) $575.00

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.

website : www.nexflow.com

email : sales@nexflow.com
