Muffling Kits For Cabinet Panel Coolers

Muffling Kits For Cabinet Panel Coolers

Muffling Kits

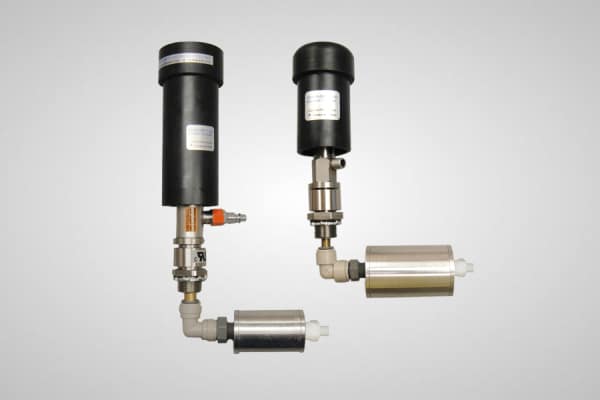

PRODUCT OVERVIEW

In many environments where the surroundings are very quiet, or if personnel are working next to control panels, the Hot End and Cold End Muffling kits can reduce the noise levels an additional 8 dBA depending on air capacity used!!! The Hot End Muffler also acts as an excellent heat guard, exhausting the hot air from the vortex tube cooler assembly. Noise levels with the Nex Flow™ Panel Coolers can be reduced to under 64 dBA or more, depending on the capacity of the Panel Cooler.

HOT AND COLD END MUFFLING KITS ON A PANEL COOLER REDUCE
NOISE LEVELS UP TO AN ADDITIONAL 8 dBA.
IN ADDITION, THE HOT END MUFFLER ACTS AS A HEAT GUARD.

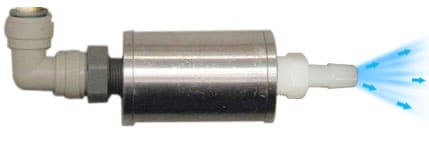

Cold End Muffling Kit

Cold End Muffling KitThe Cold End Muffling Kit consists of a silencer and all necessary fittings to connect to the Panel Cooler at the cold air outlet inside the electrical control panel. Depending on the capacity of the specific Panel Cooler, the dBA reduction offered by the Cold End Muffling Kit is 5 to 6 dBA. It’s easy to install andcan be installed with the silencer vertical or horizontal, depending on the space.

Hot End Muffling Kit & Heat Guard

The Hot End Muffling Kit consists of an ABS Plastic sleeve with silencing material fitted over the hot end of the Panel Cooler outside of the control panel. The dBA reduction offered by the Hot End Muffling Kit is 2 dBA. It’s easy to install – just fit it over the top of the Panel Cooler. In addition to noise reduction, it offers additional protection from the hot end of the Panel Cooler.



Muffling Kit Selection

Part # Description
69501 Cold End Muffler Kit for 60015A to 63140X
69502 Hot End Muffler Kit for 60015A to 63140X
69503 Cold End Muffler Kit for 60004A to 63108X
69504 Cold End Muffler Kit for 60004A to 63108X
69505 Cold End and Hot End Combination Muffler Kit for 60015A to 63140X
69506 Cold End and Hot End Combination Muffler Kit for 60004A to 63108X



NOTES:

  • For the 316 stainless Panel Coolers only the Cold End Mufflers may be used.
  • If using Side Mounts, only the Cold End Mufflers may be used.

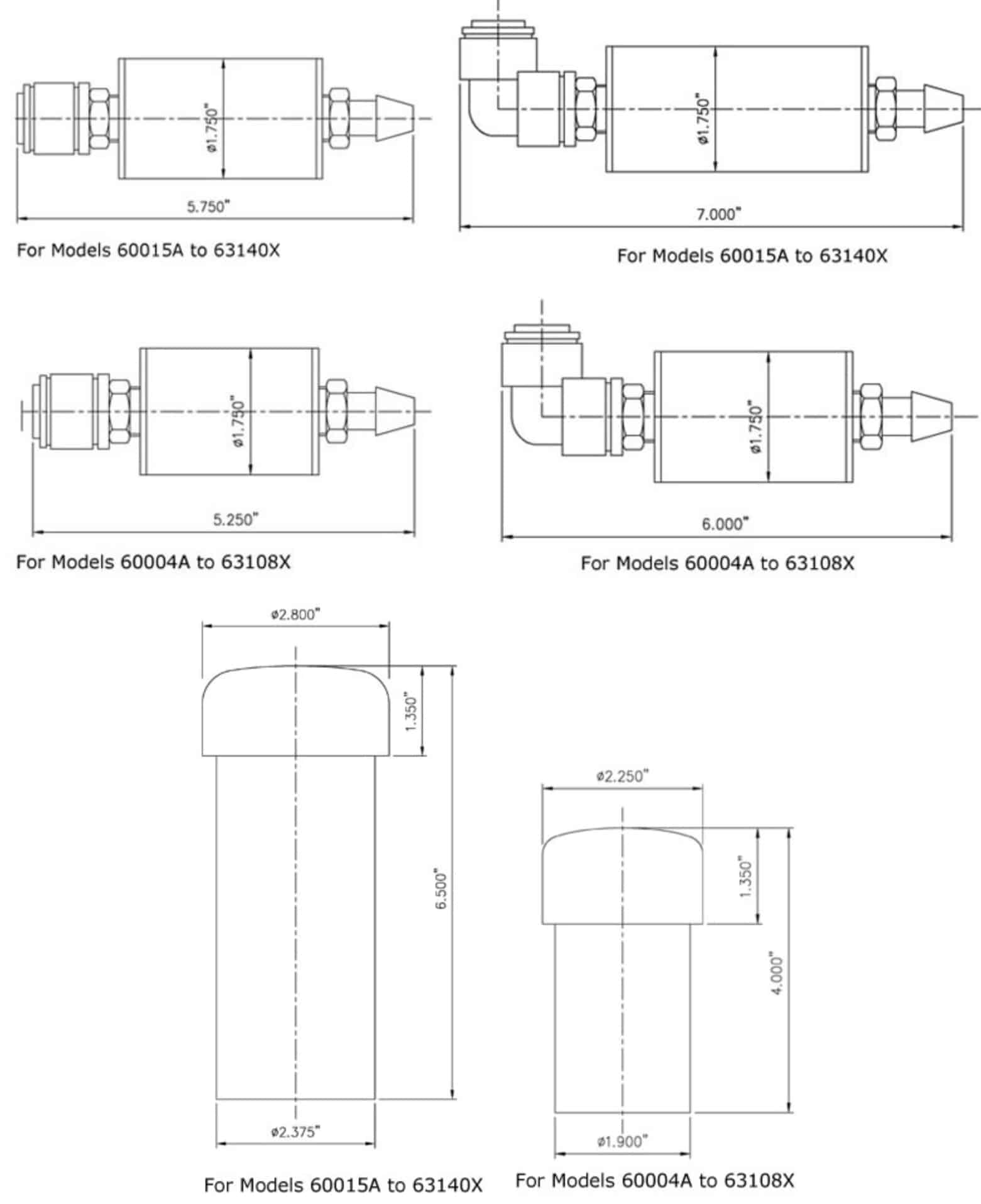

Dimensions

MUFFING KITS FOR PANEL COOLERS

PART NO. DESCRIPTION Size Price US Dollars
69501 Cold End Muffler Kit for 10 to 40 SCFM Panel Cooler Units $90.00
69502 Hot End Muffler & Heat Guard Kit for 10 to 40 SCFM Panel Cooler Units $80.00
69503 Cold End Muffler Kit for 2 to 8 SCFM Panel Cooler Units $85.00
69504 Hot End Muffler & Heat Guard Kit for 2 to 8 SCFM Panel Cooler Units $75.00
69505 Hot and Cold End Muffler & Heat Guard Kit for 10 to 40 SCFM Panel Cooler Units $170.00
69506 Hot and Cold End Muffler & Heat Guard Kit for 2 to 8 SCFM Panel Cooler Units $160.00

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.

website : www.nexflow.com

email : [email protected]
