Product Overview

The unique Nex Flow® RIGID FLEX Hose is an all stainless steel hose that does not break after a few bends like rubber hoses with simple copper inserts. It is resistant to creep and crimping. Its  all stainless construction allows for use in any difficult environment. The product consists of the flexible but rigid internal stainless hose and is covered in an additional stainless cover to provide it with strength to withstand high pressure.  The connections at each end are welded to create a solid, high quality system.

The Nex Flow® RIGID FLEX Hose is used to flex, direct and then hold in place air nozzles, air jets and other small blow off products such as our Model 40001 adjustable air amplifier and 3” X-Stream® Air Blade® Air Knife. The RIGID FLEX Hose can also be used with liquid spray jets as it can handle a pressure of up to 1150 PSIG for the standard ones and up to 1650 PSIG for the extra rigid versions.

Regular rubber hoses with copper inserts can be bent into usable shapes maybe 5 times and then they will break.  The RIGID FLEX Hose can be “flexed” up to 100 times before wearing out offering long life and savings in material and downtime caused by replacement.

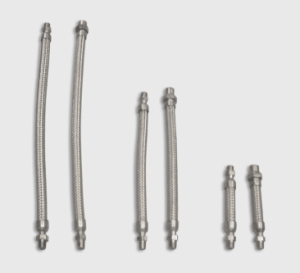

The rigid flex hose is available in three different sizes 6” (152 mm), 12” (304 mm) and 18”(457 mm) and in two configurations – 1/4″ male NPT welded end connection both ends or 1/4” male NPT welded connection one end and female NPT welded connection other end.  Special lengths can be made to your specifications.

However, there may be many applications which require extra stiffness and where a one or two time setting is adequate to fix the hose more securely.  In those instances the Rigid Flex Extra Stiff versions should be used.   With these versions they can be set once or twice to a final orientation to direct the blow off nozzle.

Specifications

PART NO.  DESCRIPTION – mutiple flexing – rated to 1150 PSIG PRESSURE
 6RF 6” overall length – ¼” NPT male to ¼” NPT male
 6RF-MF 6” overall length – ¼” NPT male to ¼” NPT female
 12RF 12” overall length – ¼” NPT male to ¼” NPT male
 12RF-MF 12” overall length – ¼” NPT male to ¼” NPT female
 18RF 18” overall length – ¼” NPT male to ¼” NPT male
 18RF-MF 18” overall length – ¼” NPT male to ¼” NPT female
PART NO. DESCRIPTION – extra stiff but limited flexing – rated to 1650 PSIG pressure
 6RF-ES 6” overall length – ¼” NPT male to ¼” NPT male
 6RF-MF-ES 6” overall length – ¼” NPT male to ¼” NPT female
 12RF-ES 12” overall length – ¼” NPT male to ¼” NPT male
 12RF-MF-ES 12” overall length – ¼” NPT male to ¼” NPT female
 18RF-ES 18” overall length – ¼” NPT male to ¼” NPT male
 18RF-MF-ES 18” overall length – ¼” NPT male to ¼” NPT female

Material of construction: 321 Stainless steel which is 304 stainless with extra titanium to handle higher temperatures of 1500 degrees F. Special versions may be produced from 316 stainless steel for food grade applications as well as special lengths.

The regular version can be flexed up to 100 times and is rated to 1150 PSIG but the extra rigid versions may be flexed only up to ten times and is rated to 1650 PSIG.
