Air Edger™ Flat Jet Nozzles

Product Overview

Model 47011 Air Edger™ Flat Jet Air Nozzle is designed to provide a powerful stream of high velocity laminar flow and high force for blow off and cooling where air knives may not be enough. Air knives are ideal for liquid and dust blow off, but when heavier material requires extra “force” to move, this product does the job well.  The internal chamber and outside shape are optimally designed to convert the pressure normally lost in the form of noise and pressure drop into useful flow and force.  The product uses the “Coanda Effect” to effectively “amplify” air flow in such a way as to reduce energy and exhaust noise while maintaining a strong blow off force.

When bench tested against several other flat jets or flat nozzles, even those with special designed holes or saw tooth style shims, the Air Edger™ Flat Jet Nozzle outperformed them all. Air consumption and noise levels are minimized with its special design and configuration while providing a strong blow off force.

The Nex Flow™ Air Edger™ Flat Jet is available with various size “gaps” all set with a flat stainless steel shim. Three standard shim sizes are available – .004” (.10 mm), .008” (.2mm) and .020” (.51 mm). One, two or more shims can be “stacked” for a larger gap and greater force up to a maximum gap of .024” (61 mm).

In your specific application the gap set by the shims should be no more than necessary to minimize energy use.

Applications include:

  • Part cleaning
  • Chip removal
  • Part drying
  • Part ejection
  • Air assist

flat jet nozzles

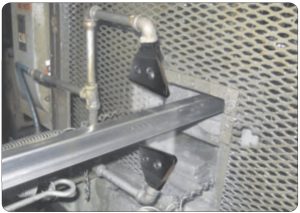

Air Edger blowing off dirt and debris on a metal extrusion line

flat jet nozzle

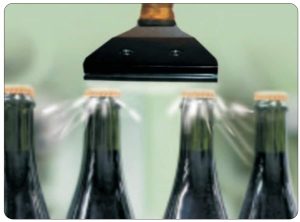

Air Edger blowing off water from under caps on a high speed bottling line

Features / Advantages

  • Reduced compressed air cost
  • 10 dBA average noise reduction
  • Conserve compressed air
  • Compact
  • Improved safety
  • Meets OSHA noise level requirements
  • Improved production

Videos

How The  Air Edger™ Flat Jet Nozzle Works

Compressed air enters the flat jet at the rear port at (A). Air is entrained at point (B) and (D) by the compressed air stream that leaves the flat jet from a small gap at the end. The entrained air follows the profile that directs the airflow in a perfectly straight line to create a uniform sheet of air along the 2″ length of the Air Edger™ Flat Jet Nozzle. The amplified air stream maximizes velocity and force to produce a well-defined sharp edge laminar flow with minimal wind shear for reduced energy use in the blow off and cooling. Two screws at (C) allow you to vary the gap with a variety of sizes of shims (.004″, .008″ or .020″). One or two shims may be used.

Specifications

Cast Zinc:

  • 47011-4 – Air Edger™ Flat Jet with .004” gap setting
  • 47011-8 – Air Edger™ Flat Jet with .008” gap setting
  • 47011-12 – Air Edger™ Flat Jet with .012” gap setting
  • 47011-16 – Air Edger™ Flat Jet with .016” gap setting
  • 47011-20 – Air Edger™ Flat Jet with .020” gap setting
  • 47011-24 – Air Edger™ Flat Jet with .024” gap setting
  • 47011-28 – Air Edger™ Flat Jet with .028” gap setting

If you are not sure of which level of power you need, we recommend a Model 47211S Shim Set consisting of 2 – .004” shims, 2 – .008” shims and 1 – .020” shim and any two shims (or more) can be stacked to set the gap best suited to your application.



316L Stainless Steel:

  • 47011S-316L-4 – Air Edger™ Flat Jet with .004” gap setting
  • 47011S-316L-8 – Air Edger™ Flat Jet with .008” gap setting
  • 47011S-316L-12 – Air Edger™ Flat Jet with .012” gap setting
  • 47011S-316L-16 – Air Edger™ Flat Jet with .016” gap setting
  • 47011S-316L-20 – Air Edger™ Flat Jet with .020” gap setting
  • 47011S-316L-24 – Air Edger™ Flat Jet with .024” gap setting
  • 47011S-316L-28 – Air Edger™ Flat Jet with .028” gap setting

If you are not sure of which level of power you need, we recommend a Model 47211S-316L Shim Set consisting of 2 – .004” shims, 2 – .008” shims and 1 – .020” shim and any two shims (or more) can be stacked to set the gap best suited to your application.

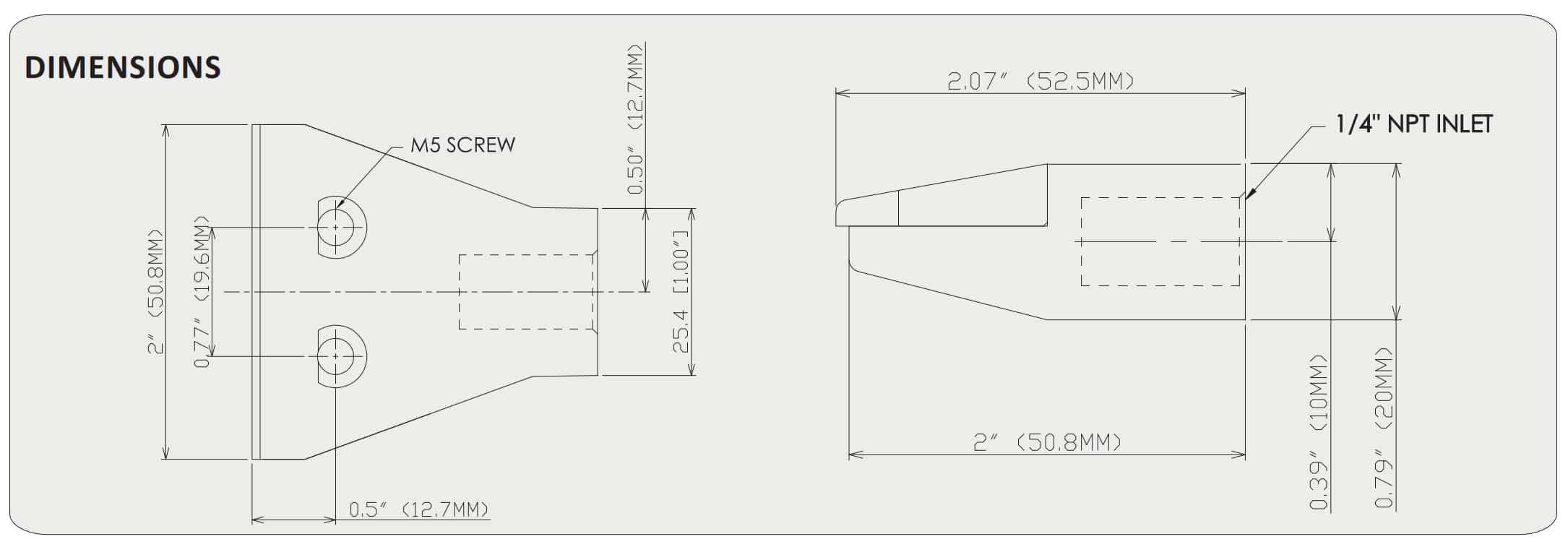

Dimensions

Performance

If you are not sure of which level of power you need, we recommend a Model 47211S Shim Set consisting of 2 – .004” shims, 2 – .008” shims and 1 – .020” shim and any two shims (or more) can be stacked to set the gap best suited to your application.

Flat Jet Profile

MODEL
Cast
Aluminum
MODEL
316L
Stainless
SCFM (SLPM) at 80 PSIG – Measured at entrance to jet Force in ounces (grams) at 12” from target
47011-4 47011S-316L-4 20.5 (581) 12 (340)
47011-8 47011S-316L-8 31.3 (887) 21 (595)
47011-12 47011S-316L-12 38.5 (1091) 27 (765)
47011-16 47011S-316L-16 41.0 (1161) 30 (850)
47011-20 47011S-316L-20 44.5 (1261) 33 (936)
47011-24 47011S-316L-24 47.0 (1331) 36(1020)
47011-28 47011S-316L-28 51.0 (1445) 39 (1106)

Compared to the Competition

It is not always clear how tests and measurements are made by competitors and therefore validating claims can be difficult since such values depend on how tests are done. Therefore we measured a competitive unit under the same conditions as we measured our units. The flat jet of the competitor is of a similar type except that they are using a saw tooth shim design and different internal dimensions. We obtained the following readings when measured using the same parameters as for Nex Flow units.

25.1 SCFM – 15 oz force (Published figures were 22 SCFM and 22 Oz force)

The force/SCFM is a ratio of .54  as measured the same way as the Nex Flow Air Edger™

One measure of efficiency is the ratio of Force/Air Consumption. The higher the ratio the better the efficiency.

If we compare to that of the Nex Flow Model 47011-4 the ratio is 12/20.5 = .58

And for the Model 47011-8 the ratio is 21/31.3 = .67

In both cases the efficiency of the Nex Flow units are higher in the comparative tests done. Under the same conditions

Air Edger™ Flat Jet Nozzles
PART NO. DESCRIPTION Size Price US Dollars
47011-4 Air Edger Zinc-Aluminum Flat Jet – .004″ gap 1/4″ $55.00
47011-8 Air Edger Zinc-Aluminum Flat Jet – .008″ gap 1/4″ $55.00
47011-12 Air Edger Zinc-Aluminum Flat Jet – .012″ gap 1/4″ $55.00
47011-16 Air Edger Zinc-Aluminum Flat Jet – .016″ gap 1/4″ $55.00
47011-20 Air Edger Zinc-Aluminum Flat jet – .020 ” gap 1/4″ $55.00
47011-24 Air Edger Zinc-Aluminum Flat jet – .024″ gap 1/4″ $55.00
47011-28 Air Edger Zinc-Aluminum Flat jet – .028″ gap 1/4″ $55.00
47011S-316L-4 316L Stainless Steel Air Edger Flat Jet -.004″ gap 1/4″ $103.00
47011S-316L-8 316L Stainless Steel Air Edger Flat Jet -.008″ gap 1/4″ $103.00
47011S-316L-12 316L Stainless Steel Air Edger Flat Jet -.012″ gap 1/4″ $103.00
47011S-316L-16 316L Stainless Steel Air Edger Flat Jet -.016″ gap 1/4″ $103.00
47011S-316L-20 316L Stainless Steel Air Edger Flat Jet -.020″ gap 1/4″ $103.00
47011S-316L-24 316L Stainless Steel Air Edger Flat Jet -.024″ gap 1/4″ $103.00
47011S-316L-28 316L Stainless Steel Air Edger Flat Jet -.028″ gap 1/4″ $103.00
47111S-4 304 stainless steel shim for Air Edger – .004″ 1/4″ $6.00
47111S-8 304 stainless steel shim for Air Edger – ,008″ 1/4″ $6.00
47111S-20 304 stainless steel shim for Air Edger – .020″ 1/4″ $6.00
47211S 304 stainless steel shim set for Air Edger – 2 – .004″, 2 – .008″, 1- .020″ 1/4″ $30.00
47111XS-316L-4 316L stainless steel shim for Air Edger – .004″ 1/4″ $7.00
47111XS-316L-8 316L stainless steel shim for Air Edger -.008″ 1/4″ $7.00
47111XS-316L-20 316L stainless steel shim for Air Edger – .020″ 1/4″ $7.00
47211S-316L 316 stainless steel shim set for Air Edger – 2 – .004″, 2 – .008″, 1- .020″ 1/4″ $35.00

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.

website : www.nexflow.com

email : sales@nexflow.com
