Vortex Tubes

VORTEX TUBES

PRODUCT OVERVIEW

Nex Flow™ Vortex Tubes are an effective, low-cost solution to a wide variety of industrial spot and process cooling needs. Available in three basic sizes Small, Medium and Large and in several packaged versions.

How Vortex Tubes work

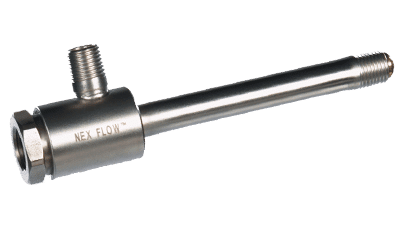

Our Stainless Steel vortex tube comes assembled with a brass generator as a standard item rather than cheap plastic for longer lifespan and for applications in high-temperature environments. With virtually no moving parts, the vortex tube takes compressed air and converts it to cold air as low as minus 50° F (minus 46° C) at one end and hot air at the other up to 260° F (127° C).

VORTEX TUBES

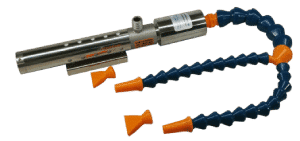

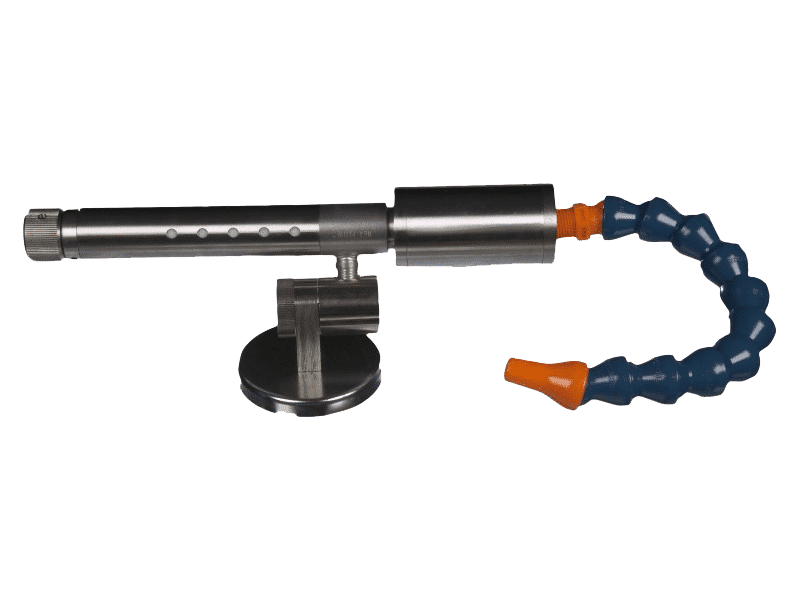

Frigid-X™ Adjustable Spot Cooler

The Frigid-X™ Adjustable Spot Cooler is a low cost and maintenance free Adjustable Spot Cooler system which utilizes a vortex tube to produce cold air at one end.

VORTEX TUBES

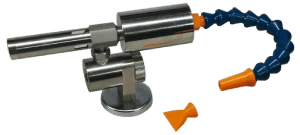

Frigid-X™ Mini Spot Cooler

The Nex Flow™ Mini Spot Cooler is designed for small parts and produces a stream of 15 to 20 degree F (minus 9.5 to 7 degree C) of cold air to prevent heat buildup depending on inlet air temperature.

VORTEX TUBES

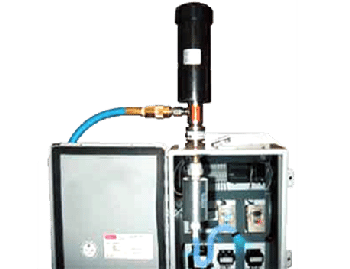

Frigid-X™ Box Cooler

For cooling small enclosures for laboratory use, environmental chambers and any application where an enclosure needs cooling

APPLICATIONS

  • Cool electronic and electrical control
  • Cool machine operations/tooling
  • Cool CCTV cameras
  • Set hot melt adhesives
  • Cool soldered parts
  • Cool gas samples
  • Cool heat seals
  • Cooling environmental chambers

ADVANTAGES

  • No moving parts, reliable, maintenance free
  • No coolant
  • Compact and lightweight
  • Low cost application
  • Maintenance free units
  • Instant cold air in environmental chambers
  • No spark or explosion hazard
  • Interchangeable generators

VIDEOS

How The Vortex Tube Work

Compressed air enters at point (A). Inside the vortex tube, the compressed air is made to spin using a “generator”. It travels in one direction along the small (hot end) tube and then back inside itself in the reverse direction creating one stream of air (B) and the second stream of air (C) in the opposite direction. The outside stream of air gets hot and exhausts at point (D). The center column of air gets cold and exists at point (E). Temperatures and capacities can vary by adjusting the hot end plug at (D) and by using different “generators”

TEMPERATURE

Adjusting the slotted valve at the hot air outlet sets the flow rate and temperature at the cold end. The more air let out at the hot end reduces the cold air flowing and the cold air temperature at the cold end. Close the valve at the hot end and you increase the cold air flow at the cold end as well as the air temperature at the cold end. The percentage of total input air to the vortex tubes that is directed to the cold end is the “cold fraction”. A cold fraction of 60% to 80% produces the optimum refrigeration. See the chart below which indicates the temperature “rise” at the hot end and temperature “drop” at the cold end of a vortex tubes at various input pressures and “cold Fraction” setting.

Most industrial applications, such as electrical control panel cooling, parts cooling, tool cooling require maximum refrigeration and utilize the Frigid-X™ 50000H series. Applications which require extreme cold temperatures such as lab sample cooling, circuit board testing, would utilize the Frigid-X™50000C series. However, mufflers are available for both the cold and hot ends if required.

PERFORMANCE

Model #
SCFM @100 PSIG inlet
(SLPM @ 6.9 BAR inlet)
Btu/hr. at 100 PSIG
(Watts at 6.9 BAR)
Size
50002H
2
(57)
145
(42)
small
50004H
4
(142)
290
(85)
small
50008H
8
(226)
580
(170)
small
50010H
10
(283)
730
(214)
medium
50015H
15
(425)
1100
(322)
medium
50025H
25
(708)
1800
(527)
medium
50030H
30
(850)
2100
(615)
medium
50040H
40
(1133)
2900
(849)
medium
50050H 50
(1416)
3700
(1084)
large
50075H 75
(2124)
5400
(1583)
large
50100H 100
(2832)
7100
(2081)
large
50150H
150
(4248)
10800
(3165)
large



Model #
SCFM @100 PSIG inlet
(SLPM @ 6.9 BAR inlet)
For Cold Temperature
Size
50002C
2
(57)
—-
small
50004C
4
(142)
—-
small
50008C
8
(226)
—-
small
50010C
10
(283)
—-
medium
50015C
15
(425)
—-
medium
50025C
25
(708)
—-
medium
50030C
30
(850)
—-
medium
50040C
40
(1133)
—-
medium
50050C

50
(1416)

—-
large
50075C

75
(2124)

—-
large
50100C

100
(2832)

—-
large
50150C

150
(4248)

—-
large



Approximate temperature drops (and rises) from inlet air temperature produced by a vortex tube set at various cold fractions. Assume constant inlet pressure and temperature.





Temperature drop of cold air,
°F (ºC) in blue
Temperature rise of hot air,
°F (ºC) in red
Pressure Supply
Cold Fraction %
PSIG (BAR)
20
30
40
50
60
70
80
20 (1.4)
62 (34)
60 (33)
56 (31)
51 (28)
44 (24)
36 (20)
28 (16)
15 (8)
25 (14)
36 (20)
50 (28)
64 (26)
83 (46)
107 (59)
40 (2.8)
88 (48)
85 (46)
80 (42)
73 (39)
63 (34)
52 (28)
38 (20)
21 (11)
35 (18)
52 (28)
71 (38)
92 (50)
117 (62)
147 (80)
60 (4.1)
104 (57)
100 (55)
93 (51)
84 (46)
73 (40)
60 (33)
46 (25)
24 (14)
40 (22)
59 (33)
80 (44)
104 (57)
132 (73)
166 (92)
80 (5.5)
115 (63)
110 (62)
102 (56)
92 (51)
80 (45)
66 (36)
50 (28)
25 (14)
43 (24)
63 (35)
86 (47)
113 (63)
143 (80)
180 (100)
100 (6.9)
123 (68)
118 (65)
110 (61)
100 (55)
86 (48)
71 (39)
54 (30)
26 (14)
45 (25)
67 (37)
90 (50)
119 (66)
151 (84)
191 (106)
120 (8.4)
129 (72)
124 (69)
116 (64)
104 (58)
91 (50)
74 (41)
55 (31)
26 (14)
46 (26)
69 (38)
94 (52)
123 (68)
156 (86)
195 (108)

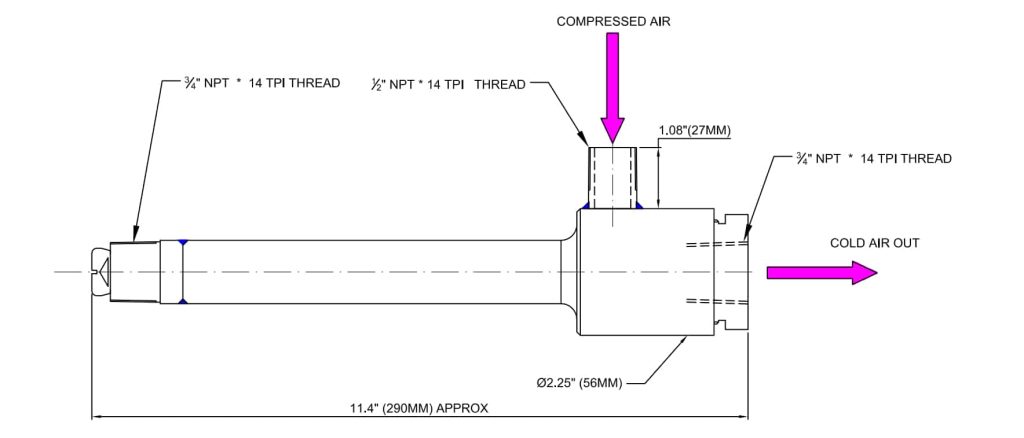

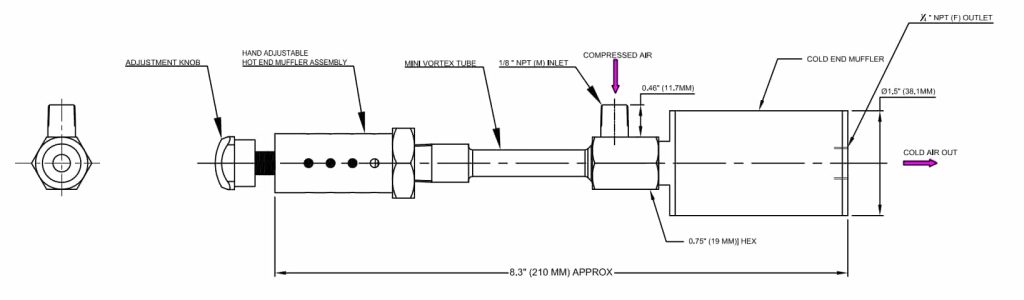

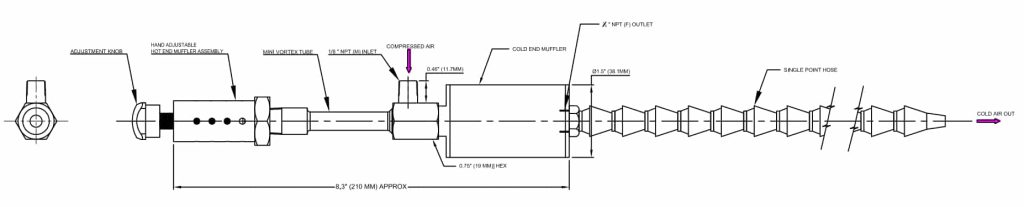

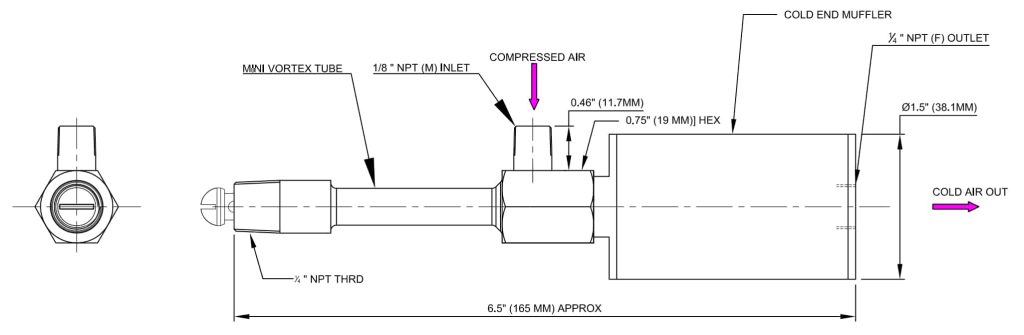

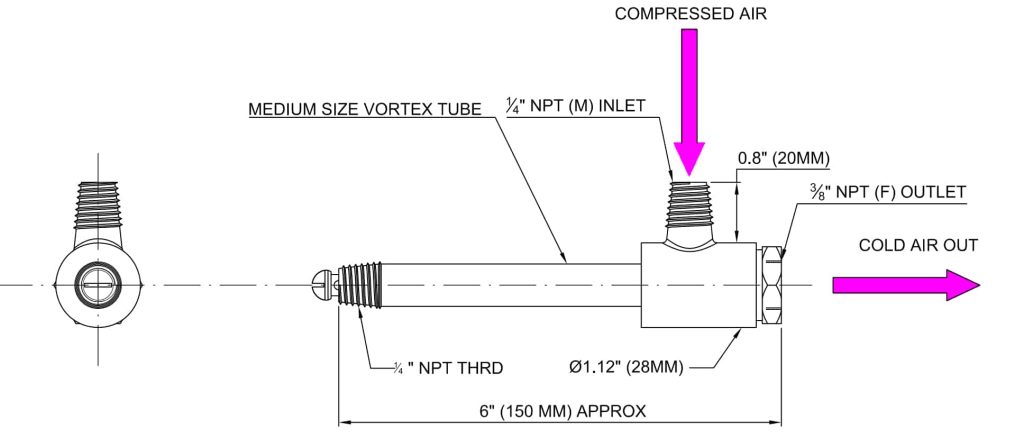

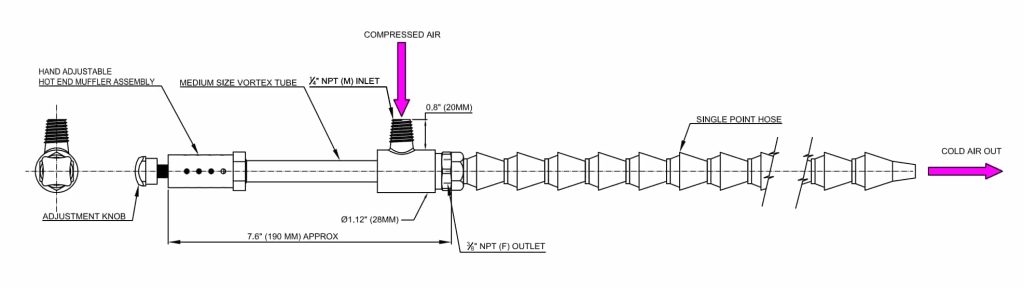

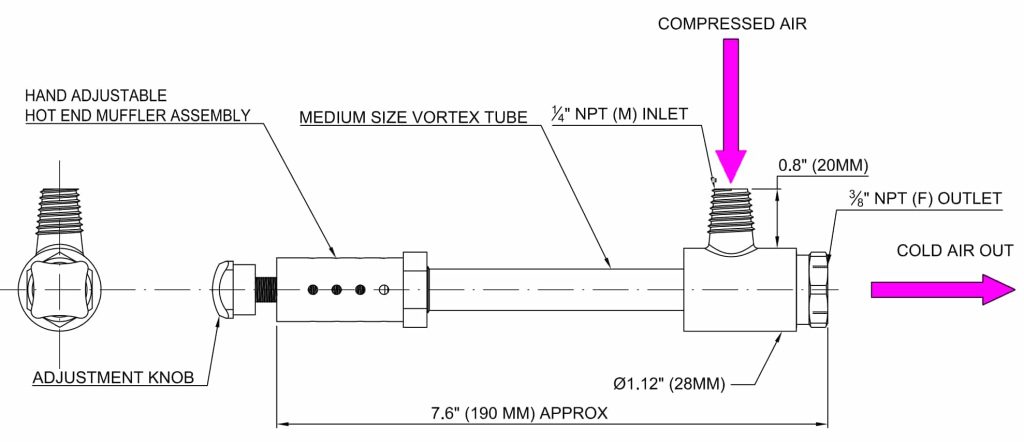

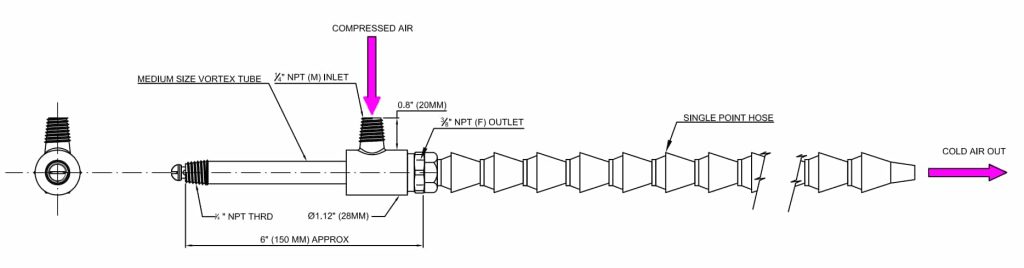

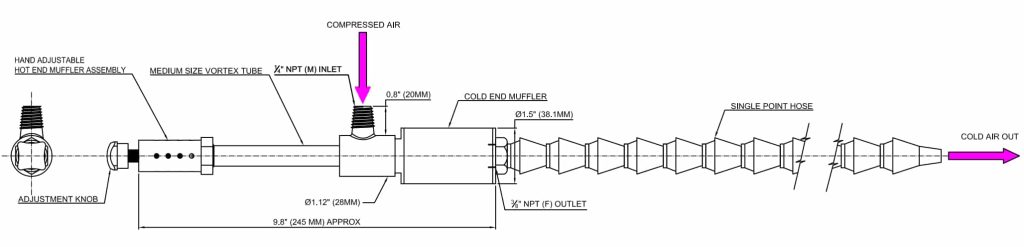

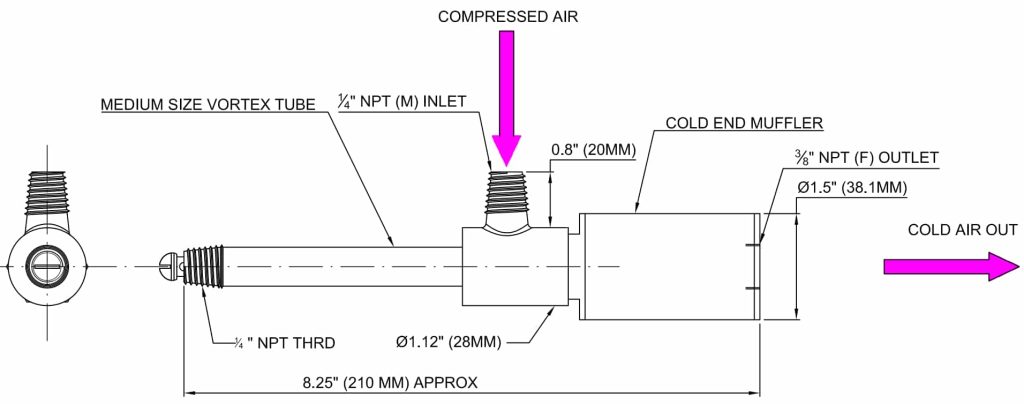

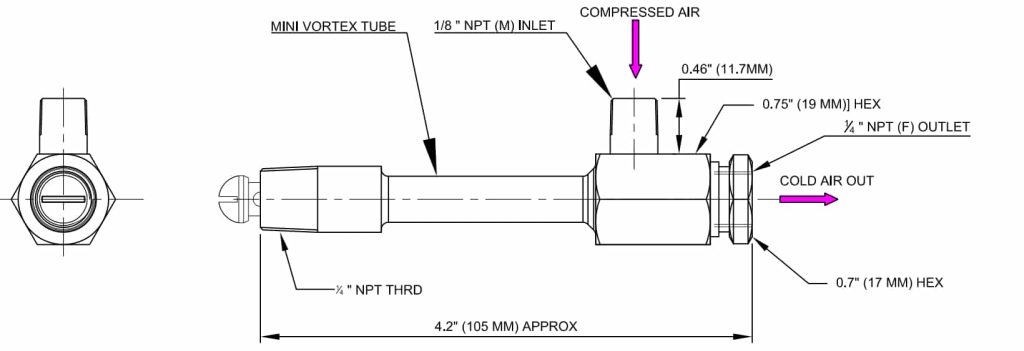

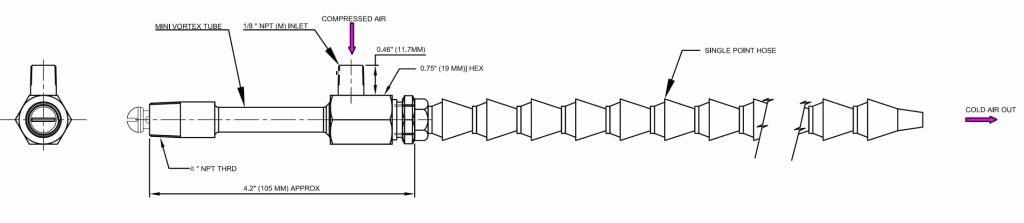

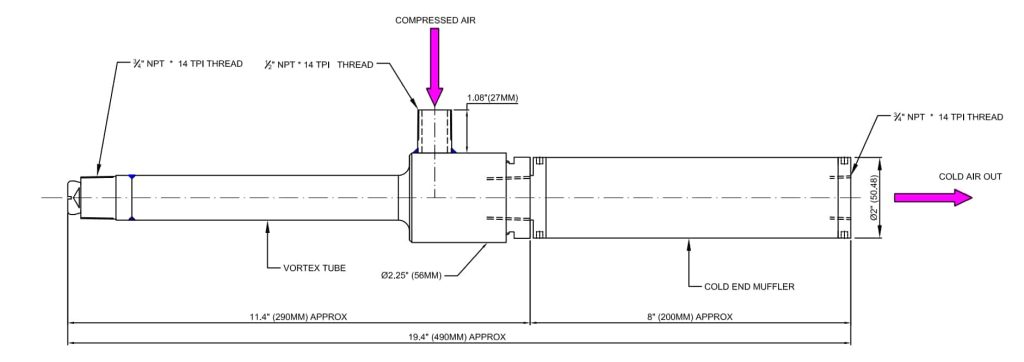

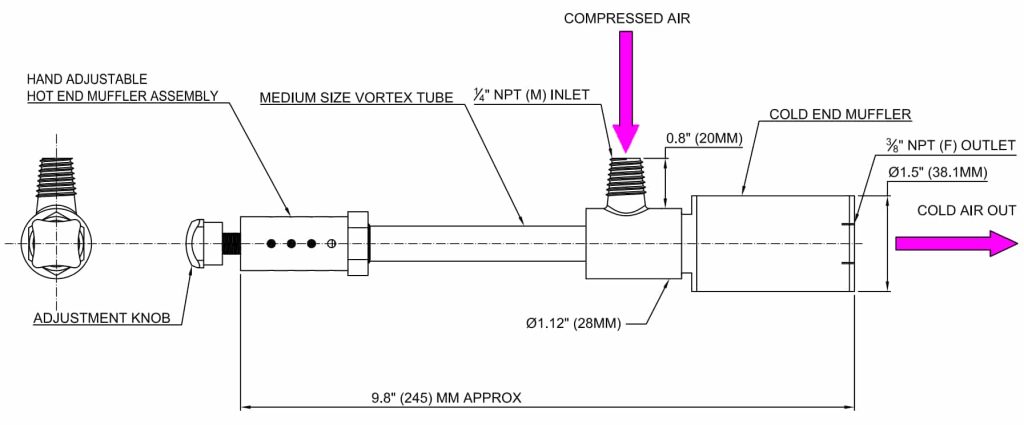

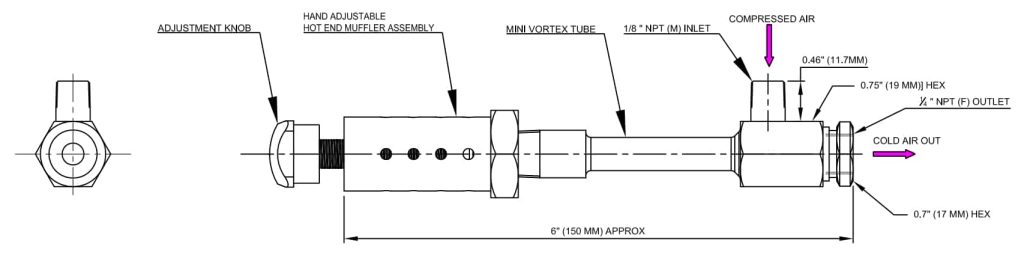

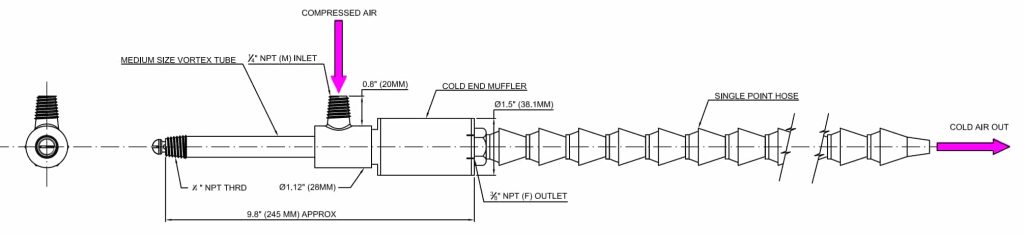

DIMENSIONS

VORTEX TUBES

VORTEX TUBES

VORTEX TUBES

VORTEX TUBES

VORTEX TUBES

VORTEX TUBES

PART NO. DESCRIPTION Price US Dollars
50000S Small Size Vortex Tube only – no generators – no plugs $128.00
50000M Medium Size Vortex Tube only – no generators – no plugs $155.00
50002H Small Size Vortex Tube with Generator $152.00
50002C Small Size Vortex Tube with Generator $152.00
50004H Small Size Vortex Tube with Generator $152.00
50004C Small Size Vortex Tube with Generator $152.00
50008H Small Size Vortex Tube with Generator $152.00
50008C Small Size Vortex Tube with Generator $152.00
50010H Medium Size Vortex Tube with generator $183.00
50010C Medium Size Vortex Tube with generator $183.00
50015H Medium Size Vortex Tube with generator $183.00
50015C Medium Size Vortex Tube with generator $183.00
50025H Medium Size Vortex Tube with generator $183.00
50025C Medium Size Vortex Tube with generator $183.00
50030H Medium Size Vortex Tube with generator $183.00
50030C Medium Size Vortex Tube with generator $183.00
50040H Medium Size Vortex Tube with generator $183.00
50040C Medium Size Vortex Tube with generator $183.00
50050H Large Size Vortex Tube with generator $875.00
50050C Large Size Vortex Tube with generator $875.00
50075H Large Size Vortex Tube with generator $875.00
50075C Large Size Vortex Tube with generator $875.00
50100H Large Size Vortex Tube with generator $875.00
50100C Large Size Vortex Tube with generator $875.00
50150H Large Size Vortex Tube with generator $875.00
50150C Large Size Vortex Tube with generator $875.00
55001 Cold End Muffler for Small Vortex Tube $30.00
55002 Cold End Muffler for Medium Vortex Tube $31.00
55006 Cold End Muffler for Large Vortex Tube $86.00
55003 Hot End Muffler for Small or Medium Vortex Tube $28.00
55004 X-Stream Hot End Muffler for Small or Medium Vortex Tube $30.00
for extra sound muffling (may need to adjust hot end exhaust)
55007 Hot End Muffler for Large Vortex Tube $48.00
55008 Hand turning adjustable hot end c/w muffler for medium vortex tube $47.00
51008K Small Vortex Tube test Kit
Consists of Small Vortex Tube, Cold Muffler, $285.00
90004 filter with auto drain, and all generators
51040K Medium Vortex Tube Test kit
Consists of Medium Vortex Tube, Cold Muffler, $340.00
90004 filter with auto drain, and all generators
51150K Large Vortex Tube Test kit $1,325.00
Consists of Large Vortex Tube, Cold Muffler,
90002 filter with auto drain, and all generators
59008K Small Vortex Tube Generator Kit (all generators) $48.00
59040K Medium Vortex Tube Generator kit (all generators) $100.00
59150K Large Vortex Tube Generator kit (all generators) $384.00
5500PA Replacement hot end adjustable plug for small and medium vortex tubes $12.00
59002C Small Vortex Tube Brass Generator Only – Cold Temp. $8.00
59004C Small Vortex Tube Brass Generator Only – Cold Temp. $8.00
59008C Small Vortex Tube Brass Generator Only – Cold Temp. $8.00
59002H Small Vortex Tube Brass Generator Only – Max. BTU/Hr. $8.00
59004H Small Vortex Tube Brass Generator Only – Max. BTU/Hr. $8.00
59008H Small Vortex Tube Brass Generator Only – Max. BTU/Hr. $8.00
59010C Medium Vortex Tube Brass Generator Only – Cold Temp. $10.00
59015C Medium Vortex Tube Brass Generator Only – Cold Temp. $10.00
59025C Medium Vortex Tube Brass Generator Only – Cold Temp. $10.00
59030C Medium Vortex Tube Brass Generator Only – Cold Temp. $10.00
59040C Medium Vortex Tube Brass Generator Only – Cold Temp. $10.00
59010H Medium Vortex Tube Brass Generator Only – Max. BTU/Hr. $10.00
59015H Medium Vortex Tube Brass Generator Only – Max. BTU/Hr. $10.00
59025H Medium Vortex Tube Brass Generator Only – Max. BTU/Hr. $10.00
59030H Medium Vortex Tube Brass Generator Only – Max. BTU/Hr. $10.00
59040H Medium Vortex Tube Brass Generator Only – Max. BTU/Hr. $10.00
590050C Large Vortex Tube Brass Generator Only – Cold Temp. $48.00
590075C Large Vortex Tube Brass Generator Only – Cold Temp. $48.00
590100C Large Vortex Tube Brass Generator Only – Cold Temp. $48.00
590150C Large Vortex Tube Brass Generator Only – Cold Temp. $48.00
590050H Large Vortex Tube Brass Generator Only – Max. BTU/Hr. $48.00
590075H Large Vortex Tube Brass Generator Only – Max. BTU/Hr. $48.00
590100H Large Vortex Tube Brass Generator Only – Max. BTU/Hr. $48.00
590150H Large Vortex Tube Brass Generator Only – Max. BTU/Hr. $48.00
52002H Small Vortex tube with Generator, hand adjustable hot end muffler assembly $199.00
52004H Small Vortex tube with Generator, hand adjustable hot end muffler assembly $199.00
52008H Small Vortex tube with Generator, hand adjustable hot end muffler assembly $199.00
52010H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly $230.00
52015H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly $230.00
52025H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly $230.00
52030H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly $230.00
52040H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly $230.00
53002H Small Vortex tube with Generator, hand adjustable hot end muffler assembly + cold muffler $229.00
53004H Small Vortex tube with Generator, hand adjustable hot end muffler assembly + cold muffler $229.00
53008H Small Vortex tube with Generator, hand adjustable hot end muffler assembly + cold muffler $229.00
53010H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly + cold muffler $261.00
53015H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly + cold muffler $261.00
53025H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly + cold muffler $261.00
53030H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly + cold muffler $261.00
53040H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly + cold muffler $261.00
53002HS Small Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + single pt hose kit $245.00
53004HS Small Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + single pt hose kit $245.00
53008HS Small Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + single pt hose kit $245.00
53010HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + single pt hose kit $281.00
53015HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + single pt hose kit $281.00
53025HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + single pt hose kit $281.00
53030HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + single pt hose kit $281.00
53040HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + single pt hose kit $281.00
53010HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + dual pt hose kit $291.00
53015HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + dual pt hose kit $291.00
53025HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + dual pt hose kit $291.00
53030HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + dual pt hose kit $291.00
53040HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + dual pt hose kit $291.00
52002HS Small Vortex tube wi. Gen., hand adj. hot end muffler assy + single pt hose kit $215.00
52004HS Small Vortex tube wi. Gen., hand adj. hot end muffler assy + single pt hose kit $215.00
52008HS Small Vortex tube wi. Gen., hand adj. hot end muffler assy + single pt hose kit $215.00
52010HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + single pt hose kit $250.00
52015HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + single pt hose kit $250.00
52025HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + single pt hose kit $250.00
52030HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + single pt hose kit $250.00
52040HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + single pt hose kit $250.00
52010HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + dual pt hose kit $260.00
52015HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + dual pt hose kit $260.00
52025HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + dual pt hose kit $260.00
52030HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + dual pt hose kit $260.00
52040HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + dual pt hose kit $260.00

Prices are in USA dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for International orders.

website : www.nexflow.com

email : [email protected]


+ Overview

PRODUCT OVERVIEW

Nex Flow™ Vortex Tubes are an effective, low-cost solution to a wide variety of industrial spot and process cooling needs. Available in three basic sizes Small, Medium and Large and in several packaged versions.

How Vortex Tubes work

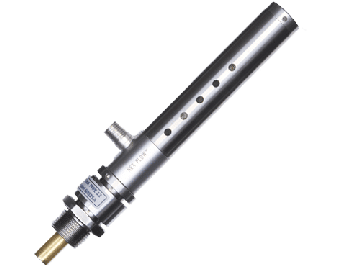

Our Stainless Steel vortex tube comes assembled with a brass generator as a standard item rather than cheap plastic for longer lifespan and for applications in high-temperature environments. With virtually no moving parts, the vortex tube takes compressed air and converts it to cold air as low as minus 50° F (minus 46° C) at one end and hot air at the other up to 260° F (127° C).

VORTEX TUBES

Frigid-X™ Adjustable Spot Cooler

The Frigid-X™ Adjustable Spot Cooler is a low cost and maintenance free Adjustable Spot Cooler system which utilizes a vortex tube to produce cold air at one end.

VORTEX TUBES

Frigid-X™ Mini Spot Cooler

The Nex Flow™ Mini Spot Cooler is designed for small parts and produces a stream of 15 to 20 degree F (minus 9.5 to 7 degree C) of cold air to prevent heat buildup depending on inlet air temperature.

VORTEX TUBES

Frigid-X™ Box Cooler

For cooling small enclosures for laboratory use, environmental chambers and any application where an enclosure needs cooling

+ Features

APPLICATIONS

  • Cool electronic and electrical control
  • Cool machine operations/tooling
  • Cool CCTV cameras
  • Set hot melt adhesives
  • Cool soldered parts
  • Cool gas samples
  • Cool heat seals
  • Cooling environmental chambers

ADVANTAGES

  • No moving parts, reliable, maintenance free
  • No coolant
  • Compact and lightweight
  • Low cost application
  • Maintenance free units
  • Instant cold air in environmental chambers
  • No spark or explosion hazard
  • Interchangeable generators
+ Videos

VIDEOS

How The Vortex Tube Work

Compressed air enters at point (A). Inside the vortex tube, the compressed air is made to spin using a “generator”. It travels in one direction along the small (hot end) tube and then back inside itself in the reverse direction creating one stream of air (B) and the second stream of air (C) in the opposite direction. The outside stream of air gets hot and exhausts at point (D). The center column of air gets cold and exists at point (E). Temperatures and capacities can vary by adjusting the hot end plug at (D) and by using different “generators”

+ Temperature

TEMPERATURE

Adjusting the slotted valve at the hot air outlet sets the flow rate and temperature at the cold end. The more air let out at the hot end reduces the cold air flowing and the cold air temperature at the cold end. Close the valve at the hot end and you increase the cold air flow at the cold end as well as the air temperature at the cold end. The percentage of total input air to the vortex tubes that is directed to the cold end is the “cold fraction”. A cold fraction of 60% to 80% produces the optimum refrigeration. See the chart below which indicates the temperature “rise” at the hot end and temperature “drop” at the cold end of a vortex tubes at various input pressures and “cold Fraction” setting.

Most industrial applications, such as electrical control panel cooling, parts cooling, tool cooling require maximum refrigeration and utilize the Frigid-X™ 50000H series. Applications which require extreme cold temperatures such as lab sample cooling, circuit board testing, would utilize the Frigid-X™50000C series. However, mufflers are available for both the cold and hot ends if required.

+ Performance

PERFORMANCE

Model #
SCFM @100 PSIG inlet
(SLPM @ 6.9 BAR inlet)
Btu/hr. at 100 PSIG
(Watts at 6.9 BAR)
Size
50002H
2
(57)
145
(42)
small
50004H
4
(142)
290
(85)
small
50008H
8
(226)
580
(170)
small
50010H
10
(283)
730
(214)
medium
50015H
15
(425)
1100
(322)
medium
50025H
25
(708)
1800
(527)
medium
50030H
30
(850)
2100
(615)
medium
50040H
40
(1133)
2900
(849)
medium
50050H 50
(1416)
3700
(1084)
large
50075H 75
(2124)
5400
(1583)
large
50100H 100
(2832)
7100
(2081)
large
50150H
150
(4248)
10800
(3165)
large



Model #
SCFM @100 PSIG inlet
(SLPM @ 6.9 BAR inlet)
For Cold Temperature
Size
50002C
2
(57)
—-
small
50004C
4
(142)
—-
small
50008C
8
(226)
—-
small
50010C
10
(283)
—-
medium
50015C
15
(425)
—-
medium
50025C
25
(708)
—-
medium
50030C
30
(850)
—-
medium
50040C
40
(1133)
—-
medium
50050C

50
(1416)

—-
large
50075C

75
(2124)

—-
large
50100C

100
(2832)

—-
large
50150C

150
(4248)

—-
large



Approximate temperature drops (and rises) from inlet air temperature produced by a vortex tube set at various cold fractions. Assume constant inlet pressure and temperature.





Temperature drop of cold air,
°F (ºC) in blue
Temperature rise of hot air,
°F (ºC) in red
Pressure Supply
Cold Fraction %
PSIG (BAR)
20
30
40
50
60
70
80
20 (1.4)
62 (34)
60 (33)
56 (31)
51 (28)
44 (24)
36 (20)
28 (16)
15 (8)
25 (14)
36 (20)
50 (28)
64 (26)
83 (46)
107 (59)
40 (2.8)
88 (48)
85 (46)
80 (42)
73 (39)
63 (34)
52 (28)
38 (20)
21 (11)
35 (18)
52 (28)
71 (38)
92 (50)
117 (62)
147 (80)
60 (4.1)
104 (57)
100 (55)
93 (51)
84 (46)
73 (40)
60 (33)
46 (25)
24 (14)
40 (22)
59 (33)
80 (44)
104 (57)
132 (73)
166 (92)
80 (5.5)
115 (63)
110 (62)
102 (56)
92 (51)
80 (45)
66 (36)
50 (28)
25 (14)
43 (24)
63 (35)
86 (47)
113 (63)
143 (80)
180 (100)
100 (6.9)
123 (68)
118 (65)
110 (61)
100 (55)
86 (48)
71 (39)
54 (30)
26 (14)
45 (25)
67 (37)
90 (50)
119 (66)
151 (84)
191 (106)
120 (8.4)
129 (72)
124 (69)
116 (64)
104 (58)
91 (50)
74 (41)
55 (31)
26 (14)
46 (26)
69 (38)
94 (52)
123 (68)
156 (86)
195 (108)
+ Dimensions

DIMENSIONS

VORTEX TUBES

VORTEX TUBES

VORTEX TUBES

VORTEX TUBES

VORTEX TUBES

+ Pricing

VORTEX TUBES

PART NO. DESCRIPTION Price US Dollars
50000S Small Size Vortex Tube only – no generators – no plugs $128.00
50000M Medium Size Vortex Tube only – no generators – no plugs $155.00
50002H Small Size Vortex Tube with Generator $152.00
50002C Small Size Vortex Tube with Generator $152.00
50004H Small Size Vortex Tube with Generator $152.00
50004C Small Size Vortex Tube with Generator $152.00
50008H Small Size Vortex Tube with Generator $152.00
50008C Small Size Vortex Tube with Generator $152.00
50010H Medium Size Vortex Tube with generator $183.00
50010C Medium Size Vortex Tube with generator $183.00
50015H Medium Size Vortex Tube with generator $183.00
50015C Medium Size Vortex Tube with generator $183.00
50025H Medium Size Vortex Tube with generator $183.00
50025C Medium Size Vortex Tube with generator $183.00
50030H Medium Size Vortex Tube with generator $183.00
50030C Medium Size Vortex Tube with generator $183.00
50040H Medium Size Vortex Tube with generator $183.00
50040C Medium Size Vortex Tube with generator $183.00
50050H Large Size Vortex Tube with generator $875.00
50050C Large Size Vortex Tube with generator $875.00
50075H Large Size Vortex Tube with generator $875.00
50075C Large Size Vortex Tube with generator $875.00
50100H Large Size Vortex Tube with generator $875.00
50100C Large Size Vortex Tube with generator $875.00
50150H Large Size Vortex Tube with generator $875.00
50150C Large Size Vortex Tube with generator $875.00
55001 Cold End Muffler for Small Vortex Tube $30.00
55002 Cold End Muffler for Medium Vortex Tube $31.00
55006 Cold End Muffler for Large Vortex Tube $86.00
55003 Hot End Muffler for Small or Medium Vortex Tube $28.00
55004 X-Stream Hot End Muffler for Small or Medium Vortex Tube $30.00
for extra sound muffling (may need to adjust hot end exhaust)
55007 Hot End Muffler for Large Vortex Tube $48.00
55008 Hand turning adjustable hot end c/w muffler for medium vortex tube $47.00
51008K Small Vortex Tube test Kit
Consists of Small Vortex Tube, Cold Muffler, $285.00
90004 filter with auto drain, and all generators
51040K Medium Vortex Tube Test kit
Consists of Medium Vortex Tube, Cold Muffler, $340.00
90004 filter with auto drain, and all generators
51150K Large Vortex Tube Test kit $1,325.00
Consists of Large Vortex Tube, Cold Muffler,
90002 filter with auto drain, and all generators
59008K Small Vortex Tube Generator Kit (all generators) $48.00
59040K Medium Vortex Tube Generator kit (all generators) $100.00
59150K Large Vortex Tube Generator kit (all generators) $384.00
5500PA Replacement hot end adjustable plug for small and medium vortex tubes $12.00
59002C Small Vortex Tube Brass Generator Only – Cold Temp. $8.00
59004C Small Vortex Tube Brass Generator Only – Cold Temp. $8.00
59008C Small Vortex Tube Brass Generator Only – Cold Temp. $8.00
59002H Small Vortex Tube Brass Generator Only – Max. BTU/Hr. $8.00
59004H Small Vortex Tube Brass Generator Only – Max. BTU/Hr. $8.00
59008H Small Vortex Tube Brass Generator Only – Max. BTU/Hr. $8.00
59010C Medium Vortex Tube Brass Generator Only – Cold Temp. $10.00
59015C Medium Vortex Tube Brass Generator Only – Cold Temp. $10.00
59025C Medium Vortex Tube Brass Generator Only – Cold Temp. $10.00
59030C Medium Vortex Tube Brass Generator Only – Cold Temp. $10.00
59040C Medium Vortex Tube Brass Generator Only – Cold Temp. $10.00
59010H Medium Vortex Tube Brass Generator Only – Max. BTU/Hr. $10.00
59015H Medium Vortex Tube Brass Generator Only – Max. BTU/Hr. $10.00
59025H Medium Vortex Tube Brass Generator Only – Max. BTU/Hr. $10.00
59030H Medium Vortex Tube Brass Generator Only – Max. BTU/Hr. $10.00
59040H Medium Vortex Tube Brass Generator Only – Max. BTU/Hr. $10.00
590050C Large Vortex Tube Brass Generator Only – Cold Temp. $48.00
590075C Large Vortex Tube Brass Generator Only – Cold Temp. $48.00
590100C Large Vortex Tube Brass Generator Only – Cold Temp. $48.00
590150C Large Vortex Tube Brass Generator Only – Cold Temp. $48.00
590050H Large Vortex Tube Brass Generator Only – Max. BTU/Hr. $48.00
590075H Large Vortex Tube Brass Generator Only – Max. BTU/Hr. $48.00
590100H Large Vortex Tube Brass Generator Only – Max. BTU/Hr. $48.00
590150H Large Vortex Tube Brass Generator Only – Max. BTU/Hr. $48.00
52002H Small Vortex tube with Generator, hand adjustable hot end muffler assembly $199.00
52004H Small Vortex tube with Generator, hand adjustable hot end muffler assembly $199.00
52008H Small Vortex tube with Generator, hand adjustable hot end muffler assembly $199.00
52010H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly $230.00
52015H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly $230.00
52025H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly $230.00
52030H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly $230.00
52040H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly $230.00
53002H Small Vortex tube with Generator, hand adjustable hot end muffler assembly + cold muffler $229.00
53004H Small Vortex tube with Generator, hand adjustable hot end muffler assembly + cold muffler $229.00
53008H Small Vortex tube with Generator, hand adjustable hot end muffler assembly + cold muffler $229.00
53010H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly + cold muffler $261.00
53015H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly + cold muffler $261.00
53025H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly + cold muffler $261.00
53030H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly + cold muffler $261.00
53040H Medium Vortex tube with Generator, hand adjustable hot end muffler assembly + cold muffler $261.00
53002HS Small Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + single pt hose kit $245.00
53004HS Small Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + single pt hose kit $245.00
53008HS Small Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + single pt hose kit $245.00
53010HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + single pt hose kit $281.00
53015HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + single pt hose kit $281.00
53025HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + single pt hose kit $281.00
53030HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + single pt hose kit $281.00
53040HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + single pt hose kit $281.00
53010HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + dual pt hose kit $291.00
53015HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + dual pt hose kit $291.00
53025HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + dual pt hose kit $291.00
53030HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + dual pt hose kit $291.00
53040HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + cold muffler + dual pt hose kit $291.00
52002HS Small Vortex tube wi. Gen., hand adj. hot end muffler assy + single pt hose kit $215.00
52004HS Small Vortex tube wi. Gen., hand adj. hot end muffler assy + single pt hose kit $215.00
52008HS Small Vortex tube wi. Gen., hand adj. hot end muffler assy + single pt hose kit $215.00
52010HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + single pt hose kit $250.00
52015HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + single pt hose kit $250.00
52025HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + single pt hose kit $250.00
52030HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + single pt hose kit $250.00
52040HS Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + single pt hose kit $250.00
52010HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + dual pt hose kit $260.00
52015HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + dual pt hose kit $260.00
52025HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + dual pt hose kit $260.00
52030HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + dual pt hose kit $260.00
52040HD Medium Vortex tube wi. Gen., hand adj. hot end muffler assy + dual pt hose kit $260.00

Prices are in USA dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for International orders.

website : www.nexflow.com

email : [email protected]


​IS YOUR COMPRESSED AIR SAFE AND USED EFFICIENTLY?
Get Ebook
close-link
Click Me
