Pneumatic Water and Oil Separator

Product Overview

The “Liquid Super Separator” is a new concept of a pneumatic mist remover without a filter element. The “Element Free Pneumatic Water Separator” uses a special centrifugal technique with uniquely designed “radial multi-nozzles” that creates extra spinning action as the compressed air passes through the unit.  As the compressed air spins, any suspended water and oil and particulate falls to the bottom of the separator.

This special design makes it possible to remove 99.99% of the oil and water suspended in the system.  While it cannot control particle size, this can be enough to radically improve a compressed air system suffering from water and oil problems.   If particle size is an issue (as it could be for equipment sensitive to particle size) then a standard membrane or cartridge filter with auto drain should still be installed, or if already there, kept installed downstream from the Super Separator.  However, the action of the Super Separator will dramatically extend the life of the cartridge filter.

This pneumatic mist separator is virtually maintenance free, as there is no need to replace any filter element.  The unit maintains an extremely low pressure drop throughout its operating life. It comes complete with a replaceable but reliable, quality float type automatic drain.

Three standard sizes are available:

  • NF-200 – handles 9 SCFM
  • NF-500 – handles 22 SCFM
  • NF-1500 – handles 64 SCFM

The Super Separator comes with a 5-year manufacturer’s warranty and is compact, lightweight, and easy to install and use.

Features / Advantages

  • No filter element
  • Minimal pressure drop
  • Maintenance free
  • Complete mist rejection
  • Mist rejection rate : 99.99%
  • Oil mist rejection rate : 99.99%
  • Semi-permanent durability
  • Power free
  • Complete with Auto-drain
  • No performance change over time
  • Trouble free with simple construction
  • Large capacity but compact
  • Low cost
  • 5 year warranty (except for auto drain)

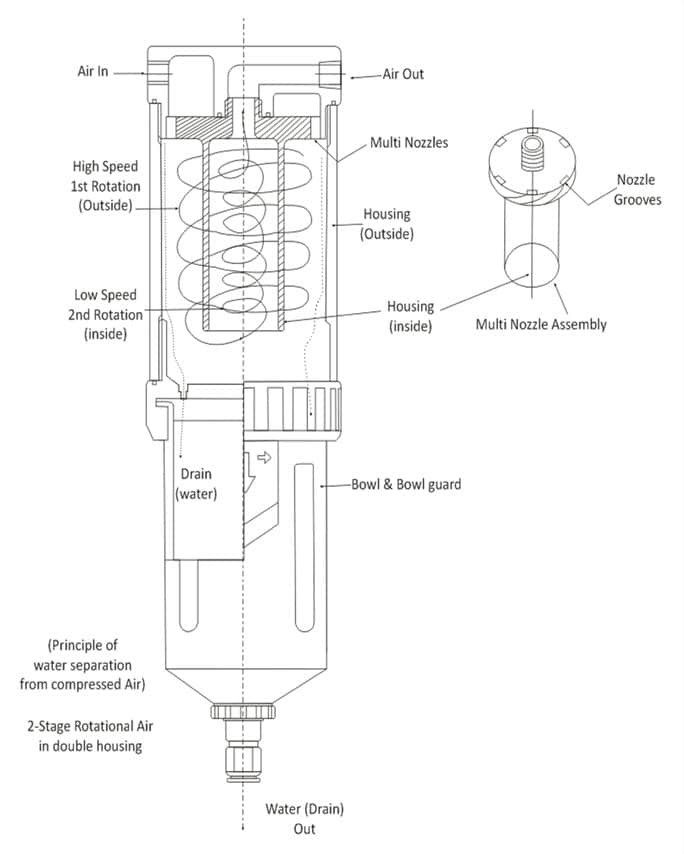

How it works

Videos

The Nex Flow™ Super Separator is a unique device designed to near eliminate water and oil removal filter cartridge replacement. The Nex Flow™ Super Separator is designed to be used near the point of use of compressed air and will remove 99.9% oil and water. No filter cartridges need to be replaced. If a standard filter is utilized after the Nex Flow™ Super Separator, the filter cartridges may not need replacement for 4 times or more longer than before saving significantly on downtime and maintenance and in energy loss from system pressure drop.

Specifications

Description NF-200 NF-500 NF-1500
Max. operation flow rate SCFM(Nl/min) 9 (200) 22 (500) 64 (1500)
Max. pressure drop (PSIG) (Mpa) {Kgf/cm2} 3.5 (0-0.025) {0-0.25}
Operating pressure range (PSIG) (Mpa) {Kgf/cm2} 140 (0.01-1.0) {1.0-10.2}
Max pressure before failure(PSIG) (Mpa) {Kgf/cm2} 172 (1.2) {12.1}
Fluid temperature range (°F) (°C) (68 to 140°F) (-20-60°C)
Type of drain valve Automatic (can be drained manually)
Air line connection diameter (inches) NPT-1/4″ NPT-1/4″ NPT-1/2″
Drain outlet connection diameter (Rc) 1/4 (Ø6.35mm) One touch nipple Type
Weight (kg) 0.40 0.75 1.10
External Dimensions (mm) Ø55×207 Ø75×250 Ø90×305

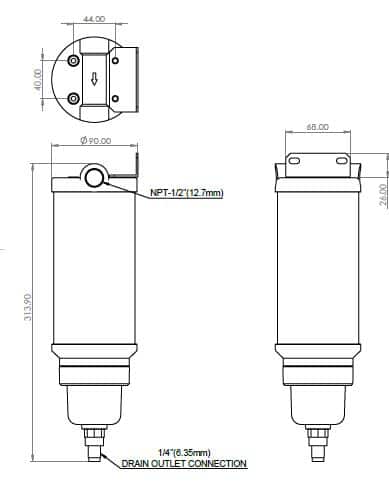

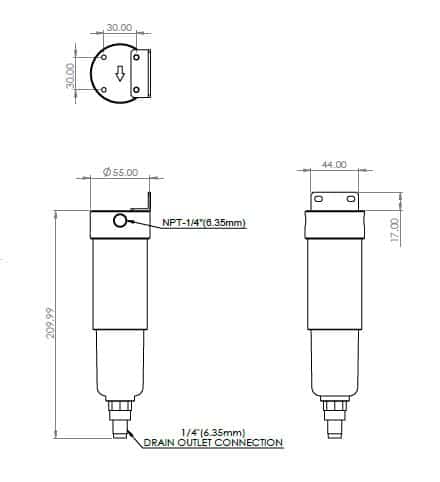

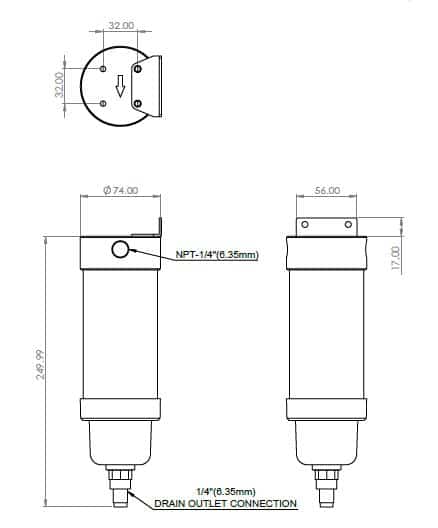

Dimensions

X-Stream Super Separators
PART NO. DESCRIPTION Size Price US Dollars
90101 X-Stream Super Separator NF 200 – 9 SCFM complete with Auto Drain 1/4″ $225.00
90102 X-Stream Super Separator NF 500- 22 SCFM complete with Auto Drain 1/4″ $250.00
90103 X-Stream Super Separator NF 1500 – 64 SCFM complete with Auto Drain 1/2″ $415.00

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.

website : www.nexflow.com

email : sales@nexflow.com
