Air Mag™ Air Nozzles

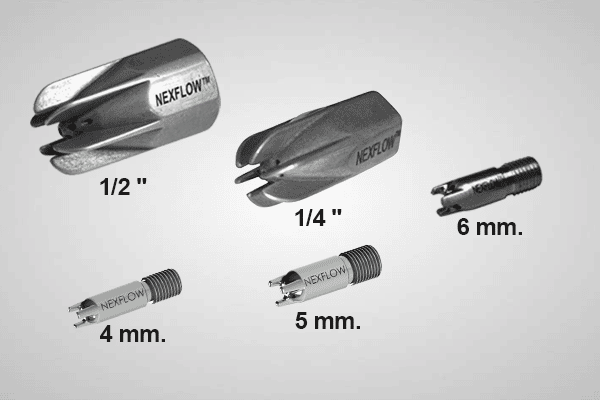

Product Overview

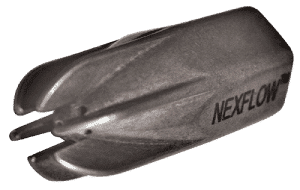

The Nex Flow™ Air Mag™ Air Nozzle is an engineered nozzle with a unique patented design to assist in focusing the compressed air from the supply line and entrained air from the surroundings to a sharper laminar flow of air with the highest force per SCFM on the market.  This both reduces compressed air energy use and noise levels as compared to open jets and pipe. Even replacing competitive air nozzles can provide significant cost savings in energy and noise levels. The nozzle is of rugged, cast zinc, single piece design ideal for harsh environments and 316L stainless steel for food, pharmaceutical, and corrosive environment applications.

star type profile nozzle

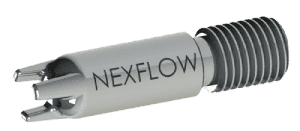

Model 47000AMS

Nex Flow™ Air Mag™ 316L stainless steel amplifying nozzle – 4 mm.

Sound Level 75 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

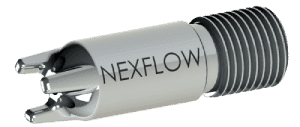

Model 47001AMS

Nex Flow™ Air Mag™ 316L stainless steel amplifying nozzle – 5 mm.

Sound Level 80 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

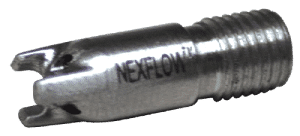

Model 47002AMS

Nex Flow™ Air Mag™ 316L stainless steel amplifying nozzle – 6 mm.

Sound Level 83 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

Model 47002AMST

Nex Flow™ Air Mag™ 316L stainless steel amplifying nozzle – 1/8″ NPT.

Sound Level 83 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

Model 47002AMP

Nex Flow™ Air Mag™ peek amplifying nozzle – 6 mm.

Sound Level 83 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

Model 47002AMPT

Nex Flow™ Air Mag™ peek amplifying nozzle – 1/8″ NPT.

Sound Level 83 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

Model 47004AMF

Nex Flow™ Air Mag™ zinc amplifying nozzle – 1⁄4″ NPT or BSP Female.

Sound Level 78 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

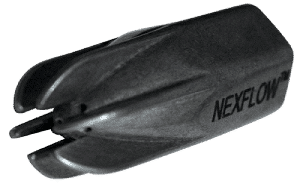

Model 47004AMFS

Nex Flow™ Air Mag™ 316L stainless steel amplifying nozzle – zinc amplifying nozzle – NPT or BSP Female.

Sound Level 78 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

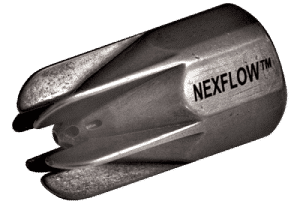

Model 47006AMF

Nex Flow™ Air Mag™ zinc amplifying nozzle – ½” NPT or BSP Female.

Sound Level 82 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

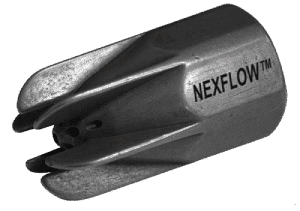

Model 47006AMFS

Nex Flow™ Air Mag™ 316L stainless steel amplifying nozzle – zinc amplifying nozzle – NPT or BSP Female.

Sound Level 82 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

When Power is Needed the Air Mag™ Nozzle is at the Leading Edge of All Other Air Nozzle Designs :

  1. Thick fins and calculated geometry on the outer body makes the nozzle more safe and sturdy for industrial environments as the air exit holes cannot be blocked by hand (Meets OSHA regulations on dead end pressure)
  2. Compact 1 piece design for greater strength specifically designed to withstand industrial environments and more worker friendly i.e no chance for breaking or exploding like 2 piece designs.
  3. Elegant sleek design for a better Coanda effect with engineered surface to provide laminar flow and high velocity with lower air consumption
  4. Patented hole design allows for the compressed air to exit with greater efficiency and reduced turbulence allowing the air to reach the target with zero drag.
  5. 10-20% more force per unit of air consumption compared with competitors and usable at greater distance due to high concentration of air flow and patented design.
  6. Engineered body design reduces the noise level by entraining the surrounding air and producing a lower exhaust noise level.
  7. Concentrated flow to reach long distances.  Workable at greater distances than competitive air nozzles. Ideal for cleaning CNC machines where metal chips could could bounce back on the face or, in breathing in wood working router produced dust if too close.
  8. Special outer shape and widely spaced fins allow for easy cleaning and buffed surface minimizes the sticking and collecting of dust and dirt.
  9. Precise machined threads, rugged design and the material quality means long life and unlikely to break.
  10. Especially ideal for point applications in which a nozzle is required to target a specific part at greater distance yet with a wide enough flow profile and force to equal that of competitive nozzles at a greater distance.

Features / Advantages

• Lowest air consumption for force produced
• Lower noise levels
• no “whistling” sound *
• single piece design for extra strength

*Even outperformed nozzles using a so-called laval effect, but without the annoying whistle that may come with such designs*

Videos

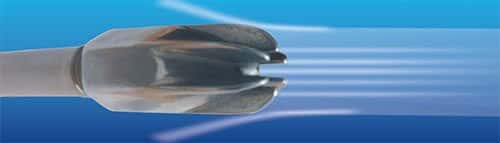

How The Air Mag™ Star Profile Air Nozzle Works

Air Mag™ Nozzle Model 47004AMF – Compressed air enters at point (A). Surrounding air (B) is entrained over the specially designed surface profile as the small amount of compressed air exits the specially designed holes drilled in the nozzle and combines at (C) to form a concentrated high velocity, laminar flow stream of amplified air flow and concentrated force with very high ratio of force/cfm.

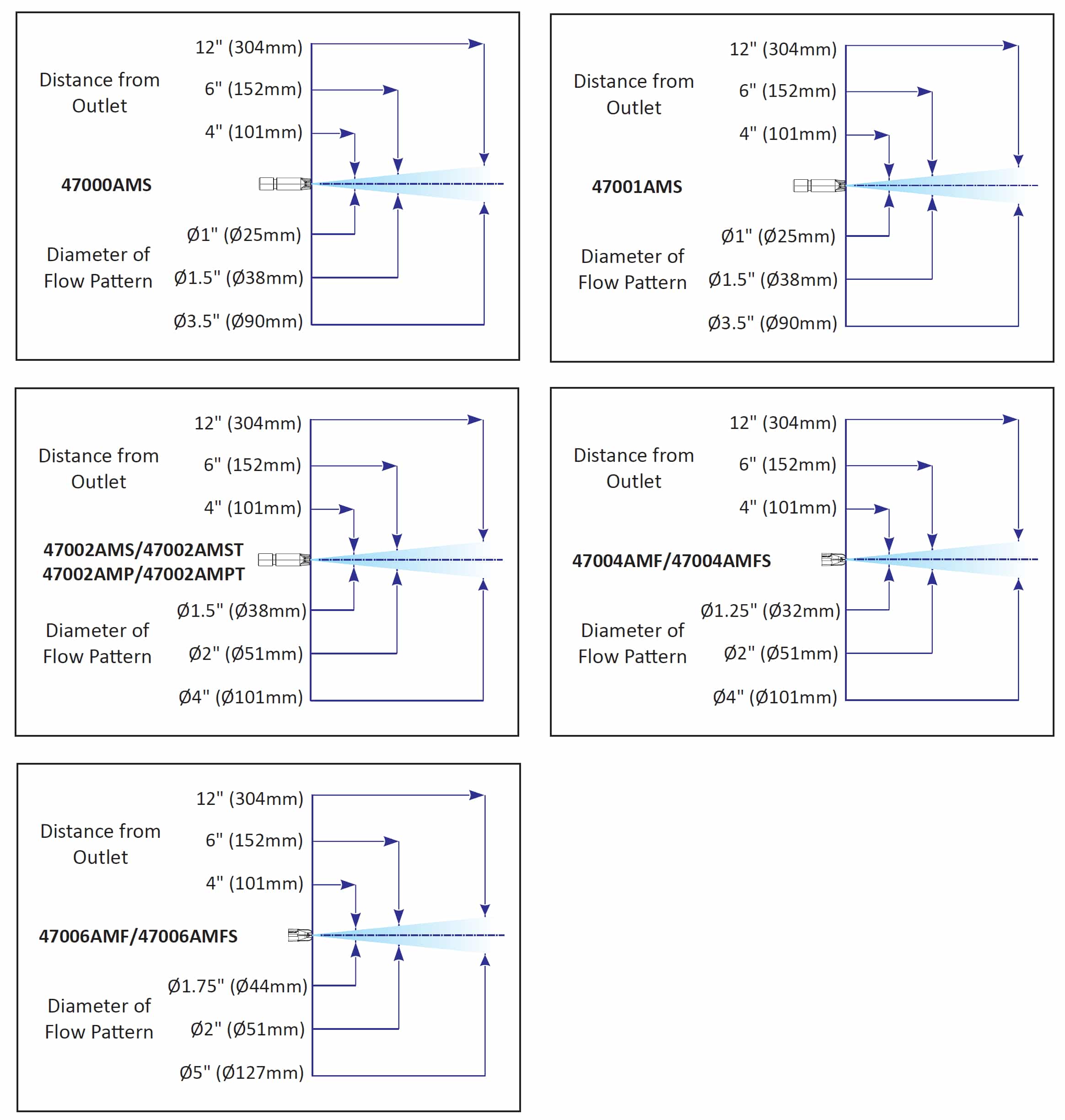

Performance

Model 47000AMS – 4mm.
Inlet Pressure PSIG (Bar) 20 (1.4) 40 (2.8) 60 (4.1) 80 (5.5) 100 (6.9) 120 (8.3)
Force LBS (Grams) 0.888 (40) 0.154 (70) 0.229 (104) 0.300 (136) 0.336 (166) 0.430 (195)
Air Consumption SCFM (SLPM) 0.5 (14) 1.0 (28) 2.5 (71) 3.5 (99) 5.0 (142) 6.0 (170)
Model 47001AMS – 5mm.
Inlet Pressure PSIG (Bar) 20 (1.4) 40 (2.8) 60 (4.1) 80 (5.5) 100 (6.9) 120 (8.3)
Force LBS (Grams) 0.168 (76) 0.320 (145) 0.463 (210) 0.631 (286) 0.772 (350) 0.838 (380)
Air Consumption SCFM (SLPM) 2.0 (57) 4.5 (128) 6.5 (184) 8.0 (227) 10.0 (283) 12.0 (340)
Model 47002AMS – 6mm.
Inlet Pressure PSIG (Bar) 20 (1.4) 40 (2.8) 60 (4.1) 80 (5.5) 100 (6.9) 120 (8.3)
Force LBS (Grams) 0.265 (120) 0.496 (225) 0.728 (330) 0.948 (430) 1.120 (510) 1.320 (600)
Air Consumption SCFM (SLPM) 5.0 (142) 8.0 (227) 11.0 (311) 14.0 (396) 17.0 (481) 20.0 (566)
Model 47004AMF/47004AMFS – 1/4″
Inlet Pressure PSIG (Bar) 20 (1.4) 40 (2.8) 60 (4.1) 80 (5.5) 100 (6.9) 120 (8.3)
Force LBS (Grams) 0.264 (120) 0.525 (238) 0.772 (350) 1.00 (454) 1.10 (500) 1.34 (610)
Air Consumption SCFM (SLPM) 5.0 (142) 7.5 (212) 12.0 (340) 14.5 (411) 16.0 (453) 18.0 (510)
Model 47006AMF/47006AMFS – 1/2″
Inlet Pressure PSIG (Bar) 20 (1.4) 40 (2.8) 60 (4.1) 80 (5.5) 100 (6.9) 120 (8.3)
Force LBS (Grams) 1.06 (480) 2.03 (920) 2.98 (1350) 3.92 (1780) 4.63 (2100) 5.07 (2300)
Air Consumption SCFM (SLPM) 21.0 (510) 33.5 (949) 45.0 (1274) 54.5 (1543) 62.0 (1756) 68.0 (1925)

Dimensions

47000AMS

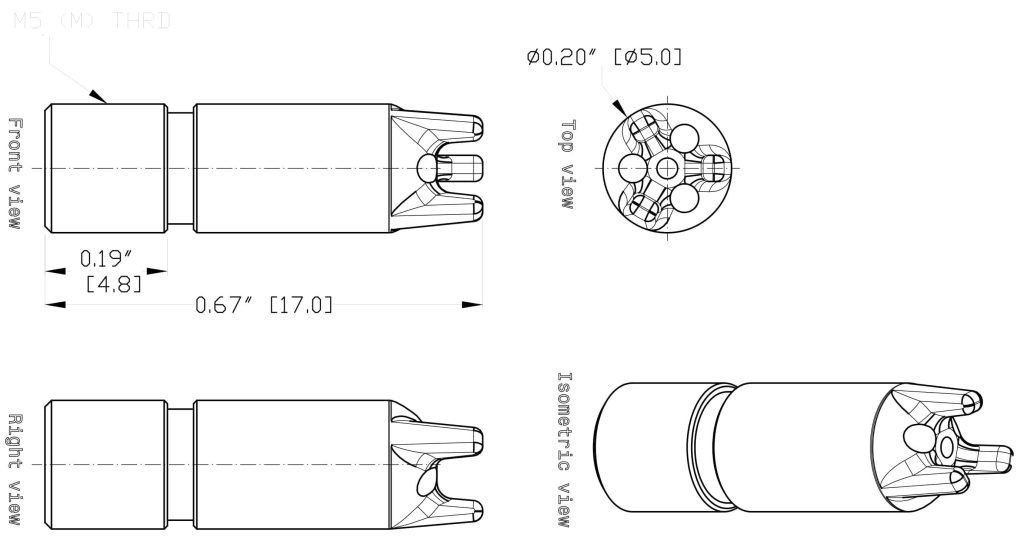

47001AMS

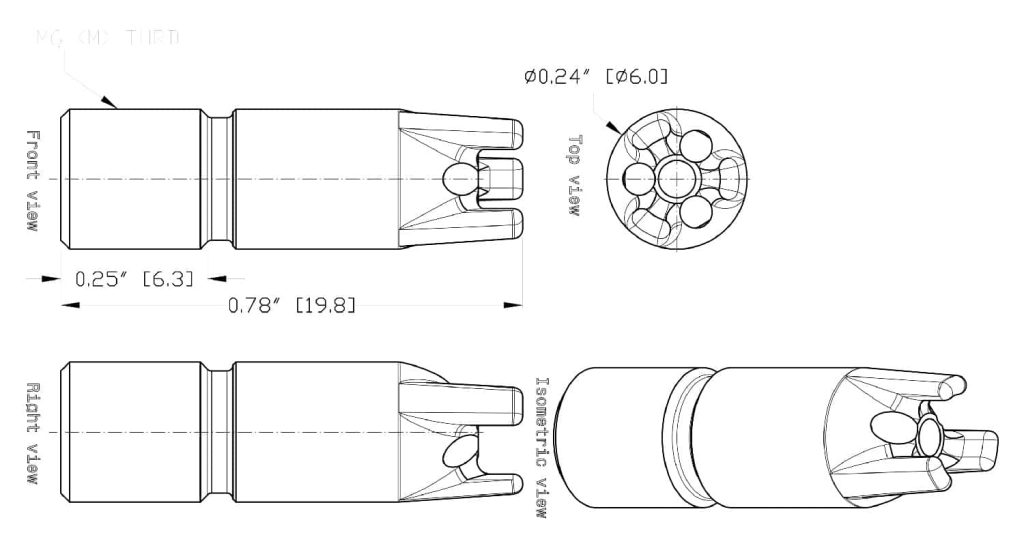

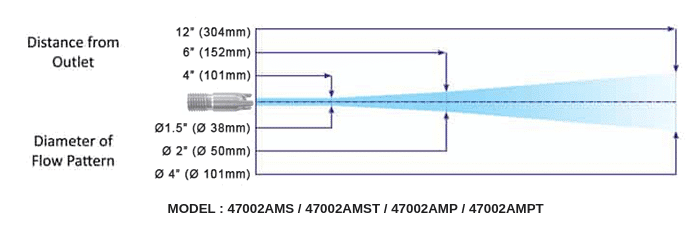

47002AMS

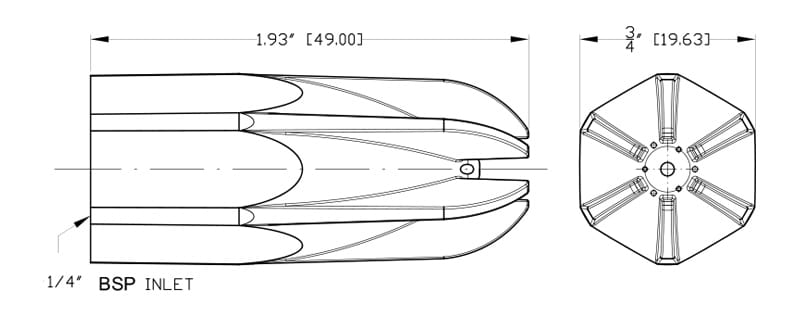

47004AMF / 47004AMFS

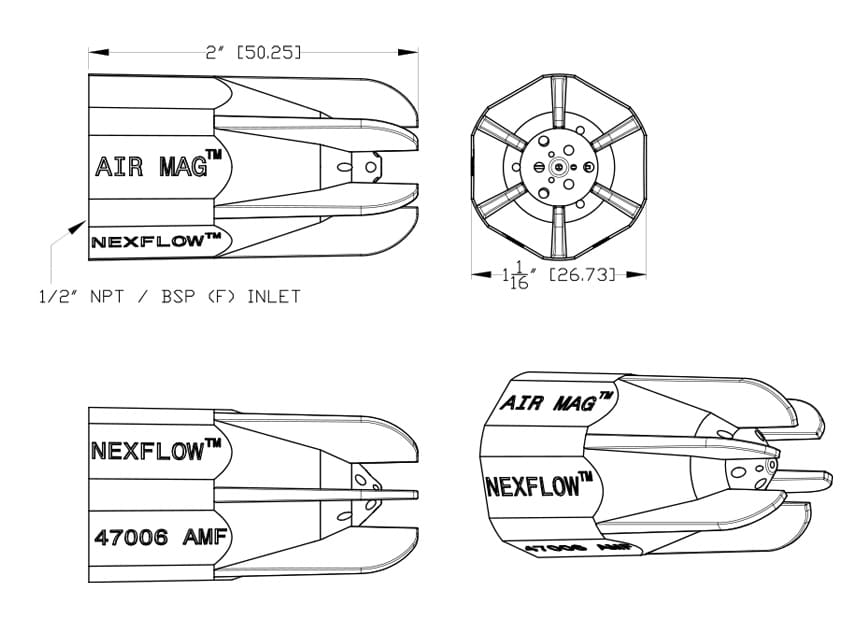

47006AMF / 47006AMFS

Nozzle Comparisons

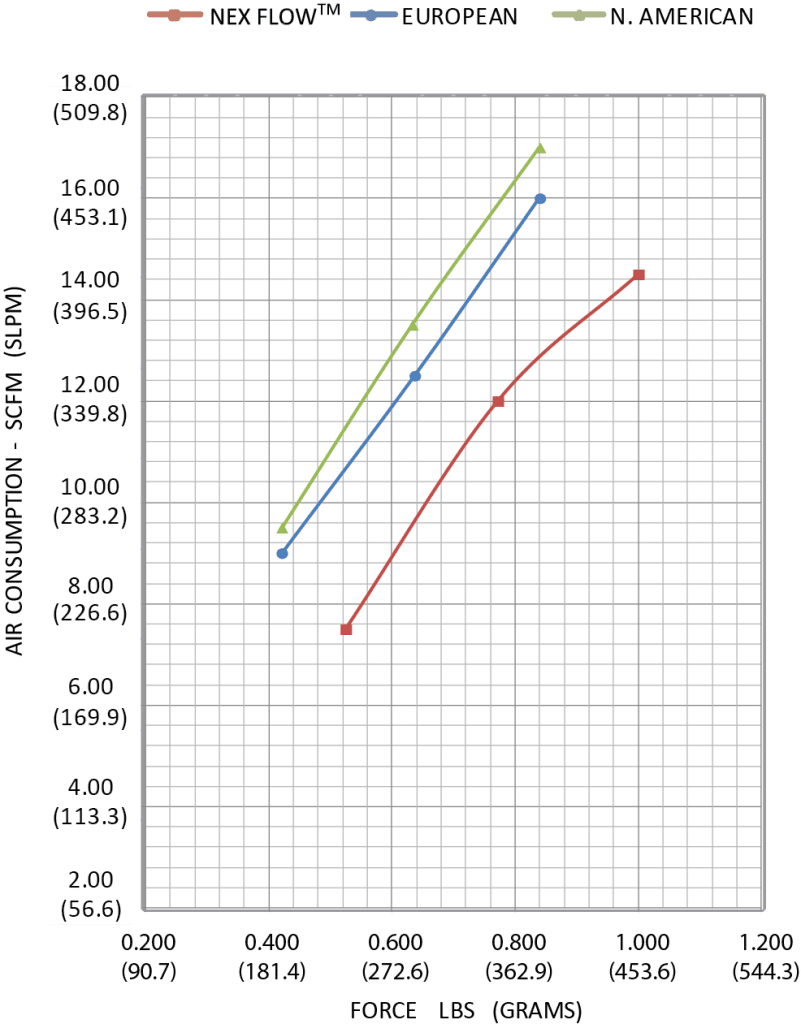

Force Efficiency of the Nex Flow™ Model 47004AMF Air Mag™ Nozzle Compared to Competitive Versions

Comparison of NEX FLOW Model 47004AMF to Equivalent size Competitor Nozzles (1⁄4″)

Note: Data for Force measured at 6” .  Data measurement was done at a college test laboratory utilizing accurate force and flow measurement equipment.  All nozzles tested under the same conditions.  Published data was not used – only actual measurements made in the lab.

INPUT LINE PRESSURE PSIG (Bar) Nex Flow™ Air Mag™ Nozzle European Design North American Design
Force – Lbs (Force –gms) SCFM (SLPM) Force – Lbs (Force –gms) SCFM (SLPM) Force – Lbs (Force –gms) SCFM (SLPM)
40 (2.8) .525 (238) 7.5 (212) .421 (191) 9.0 (255) .421 (191) 9.5 (269)
60 (4.1) .772 (350) 12.0 (340) .637 (289) 12.5 (354) .633 (287) 13.5 (382)
80 (5.5) 1.00 (454) 14.5 (411) .840 (381) 16.0 (453) .840 (381) 17.0 (481)

Note: Data for Force measured at 6”

How to Prove for Yourself How Good a Nozzle Is:
The Nex Flow™ Air Mag™ nozzle is designed so that the force at a particular pressure will be the same as a competitive nozzle of star profile design.  This makes it easy to compare and prove the superiority of the Nex Flow™ Air Mag™ nozzle by simply replacing the other nozzle and seeing what happens.  To do this, have a pressure regulator and gauge upstream, and if possible a flow meter upstream. Either have a scale to blow against or just apply it for your particular application.   For each nozzle, adjust the pressure upstream to that it is the same for all nozzles tested.

This is what you can expect…..

If you replace any competitive nozzle, you will probably have to cut back the pressure as you will get more force from the Nex Flow™ Air Mag™ nozzle.  This is because the air consumption is “less” at any given pressure which also means less pressure drop in the line as the air flows out through the nozzle. So you will actually be getting a bit more pressure and force as a result.  You can then cut back the pressure if not needed, thereby reducing compressed air use even more.

If you have a flow meter, all nozzles can be tested comparatively.

Alternatively, you can just try the various nozzles and you will find the Nex Flow™ Air Mag™ nozzle to perform better simple because there is less pressure drop since it uses less compressed air, indicating its greater efficiency.

Air Mag™ Super High Efficiency Air Nozzles
PART NO. DESCRIPTION Size Price US Dollars
47000AMS 316L Stainless Steel High Force per Air Consumption M4 male air nozzle 4mm. $42.00
47001AMS 316L Stainless Steel High Force per Air Consumption M5 male air nozzle 5mm. $44.00
47002AMS 316L Stainless Steel High Force per Air Consumption M6 male air nozzle 6mm. $46.00
47002AMST SS High Force per Air Consumption M6 male air nozzle with 1/8″ NPT fitting 1/8″ $56.00
47002AMP Peek High Force per Air Consumption M6 male air nozzle 6mm. $33.00
47002AMPT Peek High Force per Air Consumption M6 male air nozzle with 1/8″ NPT fitting 1/8″ $42.00
47004AMF Zinc Cast High Force per Air consumption 1/4″ NPT female air nozzle 1/4″ $36.00
47004AMFS Stainless Steel High Force per Air consumption 1/4″ NPT female air nozzle 1/4″ $86.00
47006AMF Zinc Cast High Force per Air consumption 1/2″ NPT female air nozzle 1/2″ $85.00
 47006AMFS Stainless Steel High Force per Air consumption 1/2″ NPT female air nozzle 1/2″ $180.00

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.

website : www.nexflow.com

email : sales@nexflow.com


Overview

Product Overview

The Nex Flow™ Air Mag™ Air Nozzle is an engineered nozzle with a unique patented design to assist in focusing the compressed air from the supply line and entrained air from the surroundings to a sharper laminar flow of air with the highest force per SCFM on the market.  This both reduces compressed air energy use and noise levels as compared to open jets and pipe. Even replacing competitive air nozzles can provide significant cost savings in energy and noise levels. The nozzle is of rugged, cast zinc, single piece design ideal for harsh environments and 316L stainless steel for food, pharmaceutical, and corrosive environment applications.

star type profile nozzle

Model 47000AMS

Nex Flow™ Air Mag™ 316L stainless steel amplifying nozzle – 4 mm.

Sound Level 75 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

Model 47001AMS

Nex Flow™ Air Mag™ 316L stainless steel amplifying nozzle – 5 mm.

Sound Level 80 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

Model 47002AMS

Nex Flow™ Air Mag™ 316L stainless steel amplifying nozzle – 6 mm.

Sound Level 83 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

Model 47002AMST

Nex Flow™ Air Mag™ 316L stainless steel amplifying nozzle – 1/8″ NPT.

Sound Level 83 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

Model 47002AMP

Nex Flow™ Air Mag™ peek amplifying nozzle – 6 mm.

Sound Level 83 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

Model 47002AMPT

Nex Flow™ Air Mag™ peek amplifying nozzle – 1/8″ NPT.

Sound Level 83 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

Model 47004AMF

Nex Flow™ Air Mag™ zinc amplifying nozzle – 1⁄4″ NPT or BSP Female.

Sound Level 78 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

Model 47004AMFS

Nex Flow™ Air Mag™ 316L stainless steel amplifying nozzle – zinc amplifying nozzle – NPT or BSP Female.

Sound Level 78 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

Model 47006AMF

Nex Flow™ Air Mag™ zinc amplifying nozzle – ½” NPT or BSP Female.

Sound Level 82 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

Model 47006AMFS

Nex Flow™ Air Mag™ 316L stainless steel amplifying nozzle – zinc amplifying nozzle – NPT or BSP Female.

Sound Level 82 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

Advantages

When Power is Needed the Air Mag™ Nozzle is at the Leading Edge of All Other Air Nozzle Designs :

  1. Thick fins and calculated geometry on the outer body makes the nozzle more safe and sturdy for industrial environments as the air exit holes cannot be blocked by hand (Meets OSHA regulations on dead end pressure)
  2. Compact 1 piece design for greater strength specifically designed to withstand industrial environments and more worker friendly i.e no chance for breaking or exploding like 2 piece designs.
  3. Elegant sleek design for a better Coanda effect with engineered surface to provide laminar flow and high velocity with lower air consumption
  4. Patented hole design allows for the compressed air to exit with greater efficiency and reduced turbulence allowing the air to reach the target with zero drag.
  5. 10-20% more force per unit of air consumption compared with competitors and usable at greater distance due to high concentration of air flow and patented design.
  6. Engineered body design reduces the noise level by entraining the surrounding air and producing a lower exhaust noise level.
  7. Concentrated flow to reach long distances.  Workable at greater distances than competitive air nozzles. Ideal for cleaning CNC machines where metal chips could could bounce back on the face or, in breathing in wood working router produced dust if too close.
  8. Special outer shape and widely spaced fins allow for easy cleaning and buffed surface minimizes the sticking and collecting of dust and dirt.
  9. Precise machined threads, rugged design and the material quality means long life and unlikely to break.
  10. Especially ideal for point applications in which a nozzle is required to target a specific part at greater distance yet with a wide enough flow profile and force to equal that of competitive nozzles at a greater distance.

Features / Advantages

• Lowest air consumption for force produced
• Lower noise levels
• no “whistling” sound *
• single piece design for extra strength

*Even outperformed nozzles using a so-called laval effect, but without the annoying whistle that may come with such designs*

Videos

Videos

How The Air Mag™ Star Profile Air Nozzle Works

Air Mag™ Nozzle Model 47004AMF – Compressed air enters at point (A). Surrounding air (B) is entrained over the specially designed surface profile as the small amount of compressed air exits the specially designed holes drilled in the nozzle and combines at (C) to form a concentrated high velocity, laminar flow stream of amplified air flow and concentrated force with very high ratio of force/cfm.

Performance

Performance

Model 47000AMS – 4mm.
Inlet Pressure PSIG (Bar) 20 (1.4) 40 (2.8) 60 (4.1) 80 (5.5) 100 (6.9) 120 (8.3)
Force LBS (Grams) 0.888 (40) 0.154 (70) 0.229 (104) 0.300 (136) 0.336 (166) 0.430 (195)
Air Consumption SCFM (SLPM) 0.5 (14) 1.0 (28) 2.5 (71) 3.5 (99) 5.0 (142) 6.0 (170)
Model 47001AMS – 5mm.
Inlet Pressure PSIG (Bar) 20 (1.4) 40 (2.8) 60 (4.1) 80 (5.5) 100 (6.9) 120 (8.3)
Force LBS (Grams) 0.168 (76) 0.320 (145) 0.463 (210) 0.631 (286) 0.772 (350) 0.838 (380)
Air Consumption SCFM (SLPM) 2.0 (57) 4.5 (128) 6.5 (184) 8.0 (227) 10.0 (283) 12.0 (340)
Model 47002AMS – 6mm.
Inlet Pressure PSIG (Bar) 20 (1.4) 40 (2.8) 60 (4.1) 80 (5.5) 100 (6.9) 120 (8.3)
Force LBS (Grams) 0.265 (120) 0.496 (225) 0.728 (330) 0.948 (430) 1.120 (510) 1.320 (600)
Air Consumption SCFM (SLPM) 5.0 (142) 8.0 (227) 11.0 (311) 14.0 (396) 17.0 (481) 20.0 (566)
Model 47004AMF/47004AMFS – 1/4″
Inlet Pressure PSIG (Bar) 20 (1.4) 40 (2.8) 60 (4.1) 80 (5.5) 100 (6.9) 120 (8.3)
Force LBS (Grams) 0.264 (120) 0.525 (238) 0.772 (350) 1.00 (454) 1.10 (500) 1.34 (610)
Air Consumption SCFM (SLPM) 5.0 (142) 7.5 (212) 12.0 (340) 14.5 (411) 16.0 (453) 18.0 (510)
Model 47006AMF/47006AMFS – 1/2″
Inlet Pressure PSIG (Bar) 20 (1.4) 40 (2.8) 60 (4.1) 80 (5.5) 100 (6.9) 120 (8.3)
Force LBS (Grams) 1.06 (480) 2.03 (920) 2.98 (1350) 3.92 (1780) 4.63 (2100) 5.07 (2300)
Air Consumption SCFM (SLPM) 21.0 (510) 33.5 (949) 45.0 (1274) 54.5 (1543) 62.0 (1756) 68.0 (1925)
Dimensions

Dimensions

47000AMS

47001AMS

47002AMS

47004AMF / 47004AMFS

47006AMF / 47006AMFS

Nozzle Comparisons

Nozzle Comparisons

Force Efficiency of the Nex Flow™ Model 47004AMF Air Mag™ Nozzle Compared to Competitive Versions

Comparison of NEX FLOW Model 47004AMF to Equivalent size Competitor Nozzles (1⁄4″)

Note: Data for Force measured at 6” .  Data measurement was done at a college test laboratory utilizing accurate force and flow measurement equipment.  All nozzles tested under the same conditions.  Published data was not used – only actual measurements made in the lab.

INPUT LINE PRESSURE PSIG (Bar) Nex Flow™ Air Mag™ Nozzle European Design North American Design
Force – Lbs (Force –gms) SCFM (SLPM) Force – Lbs (Force –gms) SCFM (SLPM) Force – Lbs (Force –gms) SCFM (SLPM)
40 (2.8) .525 (238) 7.5 (212) .421 (191) 9.0 (255) .421 (191) 9.5 (269)
60 (4.1) .772 (350) 12.0 (340) .637 (289) 12.5 (354) .633 (287) 13.5 (382)
80 (5.5) 1.00 (454) 14.5 (411) .840 (381) 16.0 (453) .840 (381) 17.0 (481)

Note: Data for Force measured at 6”

How to Prove for Yourself How Good a Nozzle Is:
The Nex Flow™ Air Mag™ nozzle is designed so that the force at a particular pressure will be the same as a competitive nozzle of star profile design.  This makes it easy to compare and prove the superiority of the Nex Flow™ Air Mag™ nozzle by simply replacing the other nozzle and seeing what happens.  To do this, have a pressure regulator and gauge upstream, and if possible a flow meter upstream. Either have a scale to blow against or just apply it for your particular application.   For each nozzle, adjust the pressure upstream to that it is the same for all nozzles tested.

This is what you can expect…..

If you replace any competitive nozzle, you will probably have to cut back the pressure as you will get more force from the Nex Flow™ Air Mag™ nozzle.  This is because the air consumption is “less” at any given pressure which also means less pressure drop in the line as the air flows out through the nozzle. So you will actually be getting a bit more pressure and force as a result.  You can then cut back the pressure if not needed, thereby reducing compressed air use even more.

If you have a flow meter, all nozzles can be tested comparatively.

Alternatively, you can just try the various nozzles and you will find the Nex Flow™ Air Mag™ nozzle to perform better simple because there is less pressure drop since it uses less compressed air, indicating its greater efficiency.

Pricing
Air Mag™ Super High Efficiency Air Nozzles
PART NO. DESCRIPTION Size Price US Dollars
47000AMS 316L Stainless Steel High Force per Air Consumption M4 male air nozzle 4mm. $42.00
47001AMS 316L Stainless Steel High Force per Air Consumption M5 male air nozzle 5mm. $44.00
47002AMS 316L Stainless Steel High Force per Air Consumption M6 male air nozzle 6mm. $46.00
47002AMST SS High Force per Air Consumption M6 male air nozzle with 1/8″ NPT fitting 1/8″ $56.00
47002AMP Peek High Force per Air Consumption M6 male air nozzle 6mm. $33.00
47002AMPT Peek High Force per Air Consumption M6 male air nozzle with 1/8″ NPT fitting 1/8″ $42.00
47004AMF Zinc Cast High Force per Air consumption 1/4″ NPT female air nozzle 1/4″ $36.00
47004AMFS Stainless Steel High Force per Air consumption 1/4″ NPT female air nozzle 1/4″ $86.00
47006AMF Zinc Cast High Force per Air consumption 1/2″ NPT female air nozzle 1/2″ $85.00
 47006AMFS Stainless Steel High Force per Air consumption 1/2″ NPT female air nozzle 1/2″ $180.00

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.
