Product Overview

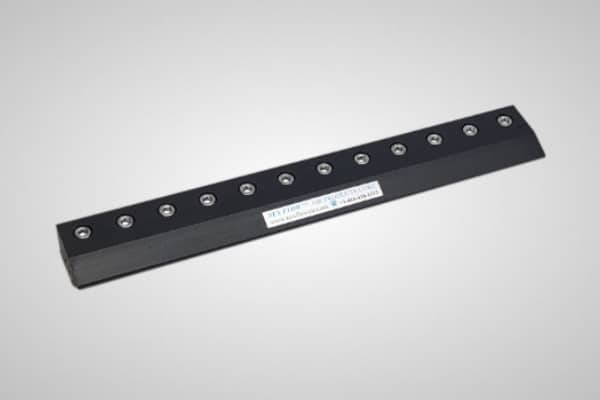

The Hardened X-Stream Air Blade® Air Knife is now available with a special hard coated surface over its Aluminium body for mildly corrosive environments and to address any abrasive contact to the surface.

It is easy to install and maintain. It can reduce both compressed air consumption and noise levels. used to blow off liquid or debris from products as they travel on conveyors.

Priced only slightly above the price of regular anodized Aluminium Nex Flow® X-Stream® Air Blade® these units can sometimes eliminate the need to go to more costly and heavy Stainless Steel units and save hundreds of dollars in cost! As with the regular anodized Aluminium units, the new Hardened X-Stream® Air Blade® comes complete with a Stainless Steel shim to set the air gap (most others use cheap plastic which can wear out quickly) and are held together with Stainless Steel screws.

Available in 2”, 3”, 6”, 9”, 12”, 15”, 18”, 24”, 30”, 36”, 42”, 48” and 54” lengths as standard they can also be coupled together using a coupling kit for longer spans. The Nex Flow® X-Stream® Air Blade® has proven to be of high quality, high performance and one of the most quiet, if not “the most quiet” designs on the market for all types of blow-off and cooling applications. Eliminating a row of drilled pipe can save up to 90% of compressed air costs.

Features / Advantages

  • Quiet – 69 dBA for most applications
  • Made of Anodized Aluminum, Hard Anodized Aluminum, 303/304 Stainless or 316L Stainless Steel.
  • 40:1 air amplification
  • Stainless Steel shim
  • Uniform airflow across entire length
  • Variable force and flow
  • No moving parts – maintenance free
  • Easy mounting
  • Compact, rugged, easy to install
  • Stainless steel screws in all models

Videos

How The Silent X-Stream® Air-Blade® Air Knife Works

Compressed air enters the air knife at the rear (or end) ports at (A). Air is entrained at point (B) and (D) by the compressed air stream that leaves the air knife from a small gap at point (C). The entrained air follows the profile that directs the airflow in a perfectly straight line to create a uniform sheet of air along the entire length of the Air Blade® air knife. The amplified air stream maximized velocity and force are maximized as a well-defined sheet of laminar flow with minimal wind shear for reduced energy use in the blow off and cooling.

Performance

air knife dimension

NOTE: Force and Velocity at  6″(152mm) from target.

Sound Level 69 dBA at 80 PSIG (5.5 BAR) for Silent X-Stream® Air Blade® Air Knives

NOTE: Force and Velocity at  6″(152mm) from target.

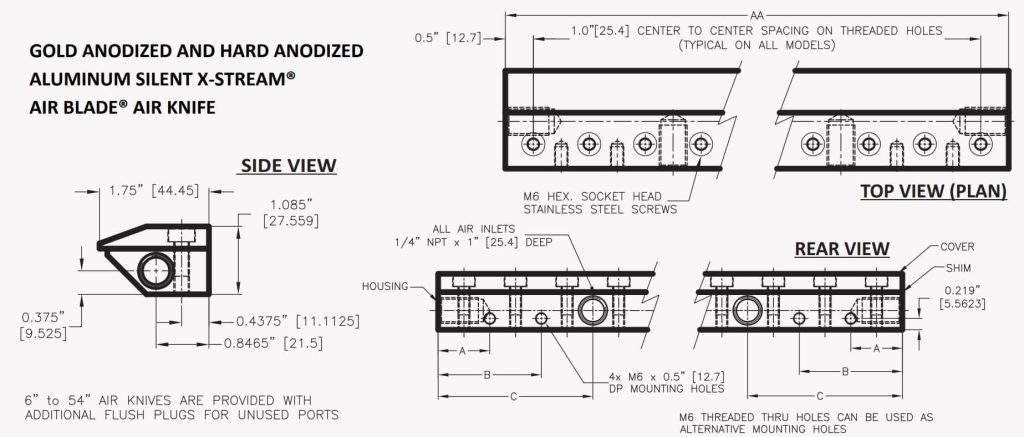

Dimensions

The Air-Blade® – X-Stream® is available in thirteen (13) standard lengths: 2″ (51mm), 3″ (76mm), 6″ (150mm), 9″ (229mm), 12″ (300mm), 15” (381mm), 18″ (457mm), 24″ (609.5mm), 30″ (761mm), 36″ (914mm), 42” (1067 mm), 48” (1219 mm), 54” (1372 mm)

Special lengths of our Air-Blade® – X-Stream® are available on special order including lengths combining several units.

PART NO. AA Inches (mm) A Inches (mm) B Inches (mm) C Inches (mm) No. of Rear Inlets (Side Inlets)
10002XHA 2”(50.8) N/A N/A 1”(25.4) 1(0)
10003XHA 3”(76.2) .641”(16.3) N/A 1.5”(38.1) 1(0)
10006XHA 6”(152) 1”(25.4) 2”(50.8) 3”(76.2) 1(2)
10009XHA 9”(228.6) 1”(25.4) 2”(50.8) 3”(76.2) 2(2)
10012XHA 12”(304.8) 1”(25.4) 2”(50.8) 3”(76.2) 2(2)
10015XHA 15”(381) 1”(25.4) 2”(50.8) 4”(101.6) 2(2)
10018XHA 18”(457.2) 1”(25.4) 2”(50.8) 5”(127.0) 2(2)
10024XHA 24”(609.6) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10030XHA 30”(762) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10036XHA 36”(914.4) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10042XHA 42”(1066.8) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10048XHA 48”(1219.2) 1”(25.4) 2”(50.8) 9”(228.6) 3(2)
10054XHA 54”(1371.6) 1”(25.4) 2”(50.8) 9”(228.6) 3(2)

X-Stream® Air-Blade® units are supplied with air inlet ports to suit either 1/4″ NPT or BSP (metric). Please state preference when ordering. All screws are Stainless Steel. All units are supplied fully assembled with a 0.002″ Stainless Steel shim producing a precise 0.002″ air gap. Additional shims available upon request.

Overview

Product Overview

The Hardened X-Stream Air Blade® Air Knife is now available with a special hard coated surface over its Aluminium body for mildly corrosive environments and to address any abrasive contact to the surface.

It is easy to install and maintain. It can reduce both compressed air consumption and noise levels. used to blow off liquid or debris from products as they travel on conveyors.

Priced only slightly above the price of regular anodized Aluminium Nex Flow® X-Stream® Air Blade® these units can sometimes eliminate the need to go to more costly and heavy Stainless Steel units and save hundreds of dollars in cost! As with the regular anodized Aluminium units, the new Hardened X-Stream® Air Blade® comes complete with a Stainless Steel shim to set the air gap (most others use cheap plastic which can wear out quickly) and are held together with Stainless Steel screws.

Available in 2”, 3”, 6”, 9”, 12”, 15”, 18”, 24”, 30”, 36”, 42”, 48” and 54” lengths as standard they can also be coupled together using a coupling kit for longer spans. The Nex Flow® X-Stream® Air Blade® has proven to be of high quality, high performance and one of the most quiet, if not “the most quiet” designs on the market for all types of blow-off and cooling applications. Eliminating a row of drilled pipe can save up to 90% of compressed air costs.

Advantages

Features / Advantages

  • Quiet – 69 dBA for most applications
  • Made of Anodized Aluminum, Hard Anodized Aluminum, 303/304 Stainless or 316L Stainless Steel.
  • 40:1 air amplification
  • Stainless Steel shim
  • Uniform airflow across entire length
  • Variable force and flow
  • No moving parts – maintenance free
  • Easy mounting
  • Compact, rugged, easy to install
  • Stainless steel screws in all models
Videos

Videos

How The Silent X-Stream® Air-Blade® Air Knife Works

Compressed air enters the air knife at the rear (or end) ports at (A). Air is entrained at point (B) and (D) by the compressed air stream that leaves the air knife from a small gap at point (C). The entrained air follows the profile that directs the airflow in a perfectly straight line to create a uniform sheet of air along the entire length of the Air Blade® air knife. The amplified air stream maximized velocity and force are maximized as a well-defined sheet of laminar flow with minimal wind shear for reduced energy use in the blow off and cooling.

Performance

Performance

air knife dimension

NOTE: Force and Velocity at  6″(152mm) from target.

Sound Level 69 dBA at 80 PSIG (5.5 BAR) for Silent X-Stream® Air Blade® Air Knives

NOTE: Force and Velocity at  6″(152mm) from target.

Dimensions

Dimensions

The Air-Blade® – X-Stream® is available in thirteen (13) standard lengths: 2″ (51mm), 3″ (76mm), 6″ (150mm), 9″ (229mm), 12″ (300mm), 15” (381mm), 18″ (457mm), 24″ (609.5mm), 30″ (761mm), 36″ (914mm), 42” (1067 mm), 48” (1219 mm), 54” (1372 mm)

Special lengths of our Air-Blade® – X-Stream® are available on special order including lengths combining several units.

PART NO. AA Inches (mm) A Inches (mm) B Inches (mm) C Inches (mm) No. of Rear Inlets (Side Inlets)
10002XHA 2”(50.8) N/A N/A 1”(25.4) 1(0)
10003XHA 3”(76.2) .641”(16.3) N/A 1.5”(38.1) 1(0)
10006XHA 6”(152) 1”(25.4) 2”(50.8) 3”(76.2) 1(2)
10009XHA 9”(228.6) 1”(25.4) 2”(50.8) 3”(76.2) 2(2)
10012XHA 12”(304.8) 1”(25.4) 2”(50.8) 3”(76.2) 2(2)
10015XHA 15”(381) 1”(25.4) 2”(50.8) 4”(101.6) 2(2)
10018XHA 18”(457.2) 1”(25.4) 2”(50.8) 5”(127.0) 2(2)
10024XHA 24”(609.6) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10030XHA 30”(762) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10036XHA 36”(914.4) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10042XHA 42”(1066.8) 1”(25.4) 2”(50.8) 6”(152.4) 2(2)
10048XHA 48”(1219.2) 1”(25.4) 2”(50.8) 9”(228.6) 3(2)
10054XHA 54”(1371.6) 1”(25.4) 2”(50.8) 9”(228.6) 3(2)

X-Stream® Air-Blade® units are supplied with air inlet ports to suit either 1/4″ NPT or BSP (metric). Please state preference when ordering. All screws are Stainless Steel. All units are supplied fully assembled with a 0.002″ Stainless Steel shim producing a precise 0.002″ air gap. Additional shims available upon request.

Pricing
