Standard Fixed Air Amplifier
Standard Fixed Air amplifier is an easy to mount using the mounting holes designed into the product. Helping with reducing both compressed air consumption and noise levels.
3/4", 1-1/4", 2", 4", 8"
Air Amplifier Only, Filter with Auto Drain, Filter with Auto Drain + Regulator with Gauge
Standard Fixed Air Amplifier is die cast for rugged use. Letting you correct the gap by adding shims. Fortunately, we have five sizes available. They provide easy mounting and maintenance, lowering compressed air use and noise levels. Making it quiet can amplify flows up to 16 times their input air consumption rate.
Standard Fixed Air Amplifiers are
- a low-cost way to move air, smoke, fumes, and light materials
- using compressed air
They provide a high-velocity flow with a special cooling effect—cooling hot surfaces faster. Making them much faster and more efficient than other sources, such as fans with less noise. Coming in a portable and compact size.
The optimized design utilizes the Coanda effect most efficiently. Thus, minimizing compressed air use and providing the ideal blow-off force required for light blow-off. This design applies to liquid, dust, debris, and the high velocity necessary for the best cooling rate of a high-temperature target.
Also, the zinc-aluminum cast product is rugged for applications in complex environments.
Additionally, a stainless steel shim controls the gap where the compressed air exits for long life. Adding shims opens the hole further, increasing the force for cleaning, drying, and enhancing the cooling rate. Converting the different gaps improves the gas and materials’ movement rate when venting gas and light.
Remember, they come with a mounting hole. This allows easy mounting of the units to your machine. Or any mounting system like the ones available from Nex Flow.
Model AM40 Air Amplifiers vent fumes from a tank quickly & efficiently.
In the videos, watch our high-quality Air Amplifier. They are extremely energy efficient and have low exhaust noise levels.

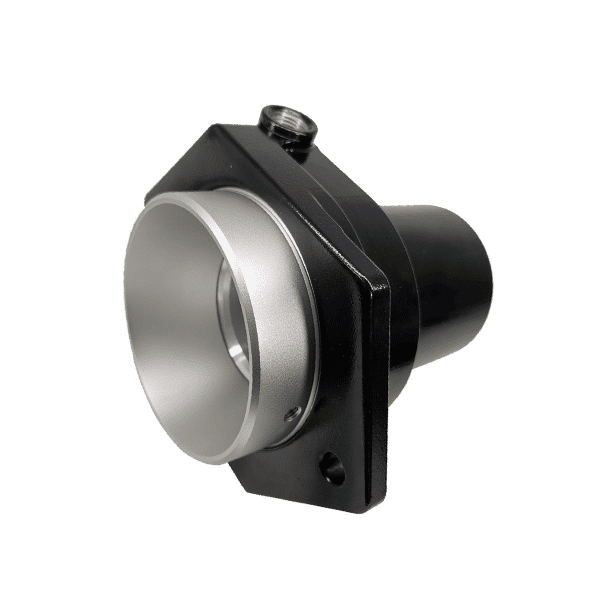

|FX75||4"||Air Amplifier Only|
|FX10||3/4"||Air Amplifier Only|

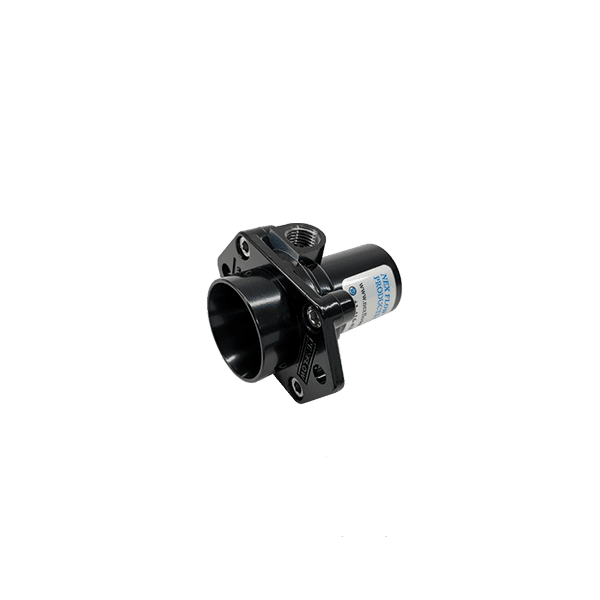

|FX20||1-1/4"||Air Amplifier Only|
|FX40||2"||Air Amplifier Only|
|FX125||8"||Air Amplifier Only|
|FX10-1||3/4"||Filter with Auto Drain|
|FX20-1||1-1/4"||Filter with Auto Drain|
|FX40-1||2"||Filter with Auto Drain|
|FX75-1||4"||Filter with Auto Drain|
|FX125-1||8"||Filter with Auto Drain|
|FX10-2||3/4"||Filter with Auto Drain + Regulator with Gauge|
|FX20-2||1-1/4"||Filter with Auto Drain + Regulator with Gauge|
|FX40-2||2"||Filter with Auto Drain + Regulator with Gauge|
|FX75-2||4"||Filter with Auto Drain + Regulator with Gauge|
|FX125-2||8"||Filter with Auto Drain + Regulator with Gauge|
