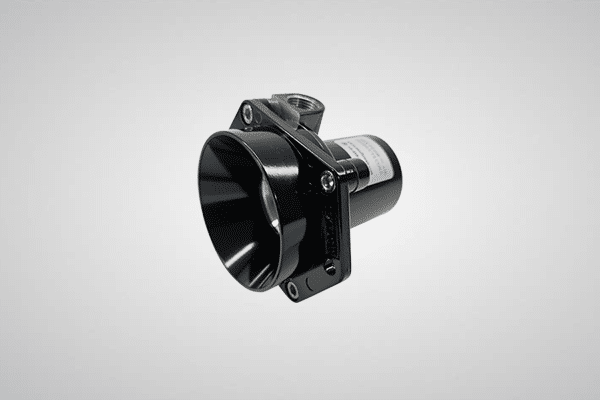

Standard (Fixed) Air Amplifiers

Product Overview

The Fixed Standard Air Amplifier from Nex Flow™ is a zinc die cast unit (smaller sizes) or die cast aluminum (larger sizes) able to hold up in the most rugged required installations in manufacturing operations.   It is the most popular air amplifier and suitable for most applications for blow off, cooling, or venting. The air amplifier works utilizing the Coanda effect, essentially converting pressure normally lost as noise into a useful, amplified, and high velocity laminar flow.

The gap where the compressed air exits the amplifier is preset with a stainless steel shim, normally .002”.  The gap can be adjusted by adding additional shims to increase the force required and for the outlet flow. Five sizes are available – ¾”, 1-1/4”. 2”, 4” and 8”.   Shim sizes available in .002” and .003” sizes and can be stacked.

The Fixed Standard Air Amplifier from Nex Flow™ is easy to mount using the mounting holes on each unit.  Essentially maintenance free, they are easy to use reducing both compressed air consumption and noise levels.  These quiet units can amplify airflows up to 16 times their input air consumption rate. When the amplifiers do not have an attachment at the amplified air exit, there is another additional air amplification of 3 times more.  Overall air flow can therefore be amplified up to 48 times the compressed air consumed!

For blow off applications for drying they are suitably designed to get into corners, and blow off parts such as the tops and bottoms of cans, scooping out water from recessed corners.  In cooling, the most common sizes are the 1-1/4” and 2” units. They can be especially efficient and fast in cooling hot parts when they have an extra shim added (using gaps of .004” or more).  When used for venting, they entrain a large volume of surrounding air making them ideal for removing dust from grinding operations, welding fumes from welding stations and even from robotic welding systems due to their compact design.

Either end of the Standard Air Amplifier may be ducted using hose or pipe to collect or transfer light materials, fumes, and dust.  This will reduce the air amplification to around 10:1 due to back pressure created by the attachments, but they will still be much more efficient than eductors or venture systems in moving air or any vented gas.

Features / Advantages

  • Compact, lightweight, portable
  • No electricity so no RF Interference
  • Meets OSHA noise and pressure requirements
  • Quiet
  • No moving parts – no maintenance
  • Ends are easily ducted
  • Instant on/off
  • Force and flow are variable
  • High flow amplification as compared to venturis

Videos

How Standard Air Amplifiers Work

A small amount of compressed air enters the annular chamber at point (A) that is then throttled through a small ring nozzle at high velocity and into the inside of the amplifier over a Coanda profile. The compressed air stream clings to the Coanda profile as it enters the inside walls of the amplifier and thereby creating a vacuum that induces the outside air at point (B) converting the pressure into the amplified airflow. The amplified of airflow leaves at the exit at point (C). Airflow is further amplified downstream at point (D) by entraining additional air from the surroundings at the exit.

Performance

Die Cast Standard Air Amplifiers come standard with a .002″ (.05 mm) shim to control the compressed air exit gap which will work for 90% of all applications encountered. If greater force is required, more .002″ (.05mm) shims or a .003″ (.07mm) shim may be installed to open the gap for greater flow.

Standard Air Amplifier – Ratios (approx.):

Model AM10:   6.5:1
Model AM20:   14:1
Model AM40:   15:1
Model AM75:   15:1
Model AM125: 16:1

Compressed Air Consumption: (Based on gap of .002″ (/05 mm) except AM125 which is .004″ (0.1 mm)

VELOCITY OF AIRFLOW FROM STANDARD AIR AMPLIFIERS. Based on Gap setting of .002″ (.05 mm)

except for AM125 which is at .004″ (0.1 mm)

AM20

AM40

AM75

AM125

Air Consumption

Compressed Air Consumption (Based on gap of 0.002” (.05mm)*) Consumption in SCFM (SLPM)

Inlet Pressure AM10 AM20 AM40 AM75 AM125
20 PSIG
(1.4 BAR)
2.2
(62.3)
4.3
(121.8)
8.0
(226.5)
16.5
(467.2)
65.0
(1840.6)
40 PSIG
(2.8 BAR)
3.4
(96.3)
6.1
(172.7)
11.3
(320.0)
23.2
(657.0)
90.0
(2548.5)
60 PSIG
(4.1 BAR)
4.3
(121.8)
7.5
(212.4)
15.0
(424.8)
29.7
(841.0)
119.5
(3383.9)
80 PSIG
(5.5 BAR)
4.9
(138.8)
9.3
(263.3)
19.3
(546.5)
37.0
(1047.7)
137.5
(3893.6)
100 PSIG
(6.9 BAR)
5.8
(164.2)
11.0
(311.5)
25.1
(710.8)
44.0
(1245.9)
150.0
(4247.5)
120 PSIG
(8.4 BAR)
6.1
(172.7)
11.8
(334.1)
26.0
(736.2)
47.0
(1330.9)
152.0
(4304.2)

PRESSURE vs. VELOCITY AT OUTLET  Ft/min (m/sec)

INLET PRESSURE AM10 AM20 AM40 AM75 AM125
20 PSIG 9000 9000 6000 2800 3900
(1.4 BAR) (45.72) (45.72) (30.48) (14.224) (19.812)
40 PSIG 14000 14500 10000 4600 6050
(2.8 BAR) (71.12) (73.66) (50.8) (23.368) (30.734)
60 PSIG 16500 18200 13500 5950 7700
(4.1 BAR) (83.82) (92.456) (68.58) (30.226) (39.116)
80 PSIG 18500 21000 16200 6850 9000
(5.5 BAR) (93.98) (106.68) (82.296) (34.798) (45.72)
100 PSIG 20300 23200 18400 7550 10000
(6.9 BAR) (103.124) (117.856) (93.472) (38.354) (50.8)
120 PSIG 22000 25000 20200 7900 10500
(8.4 BAR) (111.76) (127) (102.616) (40.132) (53.34)

PRESSURE vs. VELOCITY AT 12″ FROM OUTLET for all sizes except AM10 which is 6″ FROM OUTLET  Ft/min (m/sec)

INLET PRESSURE AM10 AM20 AM40 AM75 AM125
20 PSIG 1000 1400 1850 1550 2000
(1.4 BAR) (5.08) (7.112) (9.398) (7.874) (10.16)
40 PSIG 1430 2350 2850 2300 3400
(2.8 BAR) (7.2644) (11.938) (14.478) (11.684) (17.272)
60 PSIG 1650 2870 3500 2750 4300
(4.1 BAR) (8.382) (14.5796) (17.78) (13.97) (21.844)
80 PSIG 1800 3200 4000 3150 4900
(5.5 BAR) (9.144) (16.256) (20.32) (16.002) (24.892)
100 PSIG 1900 3400 4380 3300 5300
(6.9 BAR) (9.652) (17.272) (22.2504) (16.764) (26.924)
120 PSIG 1980 3600 4700 3450 5600
(8.4 BAR) (10.0584) (18.288) (23.876) (17.526) (28.448)

Standard Air Amplifier – Ducting:Both the inlet (vacuum intake) and discharge ends of the unit may be ducted for light material and fume conveying applications. Care must be taken to avoid unnecessary restrictions that will cause back pressure or suction resistance that will reduce performance levels. Keep back pressure and resistance to under 2″ of water column.

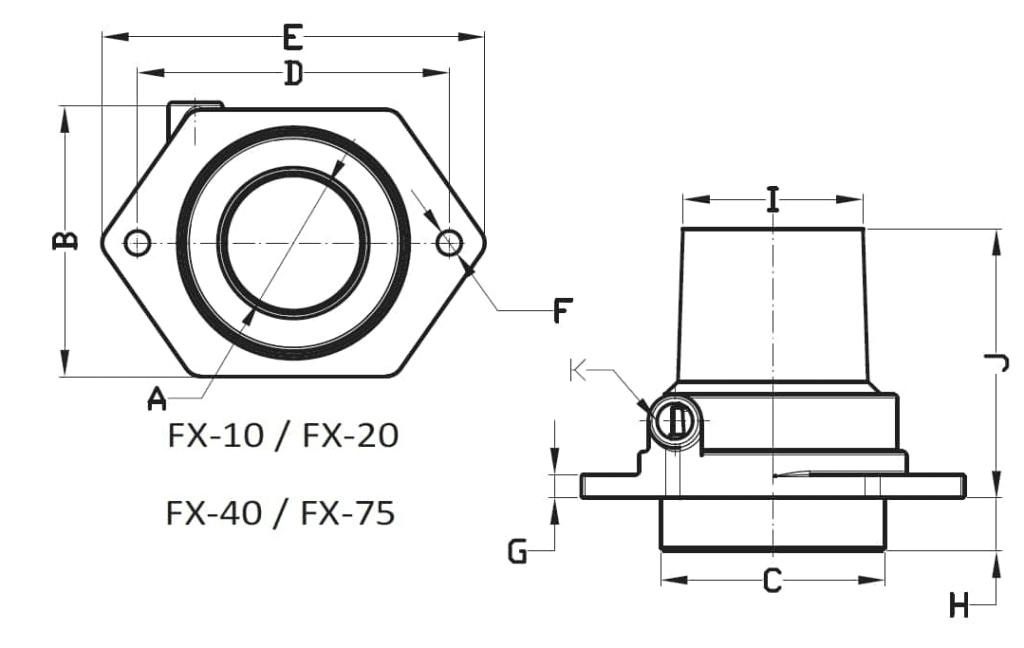

Dimensions

Standard Air Amplifiers come in five standard outlet (outside) diameters: 3/4″ (19mm), 1-1/4″ (31mm), 2″ (51mm), 4″ (101mm), 8″ (200mm).
* BSP Adaptors Supplied Upon Request Free Of Charge

Model Number Outside Diameter Of Outlet *A Inches (MM) B Inches (MM) C Inches (MM) D Inches (MM) E Inches (MM) F Inches (MM) G Inches (MM) th
H Inches (MM)
I Inches (MM) J Inches (MM) K* (NPT)
AM10 3/4″ (19) 0.40” (10.16) 1.30” (33.1) 0.99” (25.2) 1.89” (48) 2.24” (57) 0.19” (4.8) 0.16” (4) 0.59” (15) 0.75” (19) 1.59” (40.4) 1/8”
AM20 1-1/4” (31) 0.81” (20.6) 1.86” (47.2) 1.50” (38) 2.39” (60.8) 3.03” (76.9) 0.27” (6.8) 0.20” (5) 0.59” (15) 1.27” (32.2) 2.16” (54.8) 1/4″
AM40 2” (51) 1.59” (40.4) 3.15” (80) 2.93” (74.5) 3.54” (90) 4.18” (106.1) 0.29” (7.4) 0.24” (6.2) 0.79” (20) 2.03” (51.6) 2.84” (72.2) 3/8”
AM75 4” (101) 2.98” (75.8) 5.91” (150) 4.96” (126) 6.89” (175) 8.46” (215) 0.53” (13.5) 0.51” (13) 1.18” (30) 3.98” (101) 5.94” (151) 1/2″
AM125 8” (200) 4.92” (125) 10.24” (260) 7.09” (180) – – – – – – – – 0.79” (20) 7.80” (198) 16.54” (420) 3/4″

Cast Zinc Air Amplifiers

PART NO. DESCRIPTION Size Price US Dollars
AM10 Zinc Alloy Amplifier 3/4″ $80.00
AM20 Zinc Alloy Amplifier 1-1/4″ $145.00
AM40 Zinc Alloy Amplifier 2″ $182.00
AM75 Zinc Alloy Amplifier 4″ $455.00
AM125 Zinc Alloy Amplifier 8″ $770.00
AM10-1 Amplifier plus filter with auto drain model 90004 3/4″ $175.00
AM20-1 Amplifier plus filter with auto drain model 90004 1-1/4″ $240.00
AM40-1 Amplifier plus filter with auto drain model 90004 2″ $277.00
AM75-1 Amplifier plus filter with auto drain model 90001 4″ $550.00
AM125-1 Amplifier plus filter with auto drain model 90002 8″ $928.00
AM10-2 Amplifier + filter 90004 + regulator with gage 90008 3/4″ $225.00
AM20-2 Amplifier + filter 90004 + regulator with gage 90008 1-1/4″ $290.00
AM40-2 Amplifier + filter 90004 + regulator with gage 90008 2″ $327.00
AM75-2 Amplifier + filter 90001 + regulator with gage 90008 4″ $600.00
AM125-2 Amplifier + filter 90002 + regulator with gage 90009 8″ $1,018.00
SH10-2 Stainless Steel Shim, .002″ for AM10 .002″ $10.00
SH10-3 Stainless Steel Shim, .003″ for AM10 .003″ $10.00
SH20-2 Stainless Steel Shim, .002″ for AM20 .002″ $11.00
SH20-3 Stainless Steel Shim, .003″ for AM20 .003″ $11.00
SH40-2 Stainless Steel Shim, .002″ for AM40 .002″ $12.00
SH40-3 Stainless Steel Shim, .003″ for AM40 .003″ $12.00
SH75-2 Stainless Steel Shim, .002″ for AM75 .002″ $20.00
SH75-3 Stainless Steel Shim, .003″ for AM75 .003″ $20.00
SH125-3 Stainless Steel Shim, .003″ for AM125 .003″ $30.00

MOUNTING SYSTEMS FOR AIR AMPLIFIERS

PART NO. DESCRIPTION Size Price US Dollars
AMMS System for AM10, AM20, AM40 – NF60003 + screw $161.00

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.

website : www.nexflow.com

email : sales@nexflow.com

+ Overview

Product Overview

The Fixed Standard Air Amplifier from Nex Flow™ is a zinc die cast unit (smaller sizes) or die cast aluminum (larger sizes) able to hold up in the most rugged required installations in manufacturing operations.   It is the most popular air amplifier and suitable for most applications for blow off, cooling, or venting. The air amplifier works utilizing the Coanda effect, essentially converting pressure normally lost as noise into a useful, amplified, and high velocity laminar flow.

The gap where the compressed air exits the amplifier is preset with a stainless steel shim, normally .002”.  The gap can be adjusted by adding additional shims to increase the force required and for the outlet flow. Five sizes are available – ¾”, 1-1/4”. 2”, 4” and 8”.   Shim sizes available in .002” and .003” sizes and can be stacked.

The Fixed Standard Air Amplifier from Nex Flow™ is easy to mount using the mounting holes on each unit.  Essentially maintenance free, they are easy to use reducing both compressed air consumption and noise levels.  These quiet units can amplify airflows up to 16 times their input air consumption rate. When the amplifiers do not have an attachment at the amplified air exit, there is another additional air amplification of 3 times more.  Overall air flow can therefore be amplified up to 48 times the compressed air consumed!

For blow off applications for drying they are suitably designed to get into corners, and blow off parts such as the tops and bottoms of cans, scooping out water from recessed corners.  In cooling, the most common sizes are the 1-1/4” and 2” units. They can be especially efficient and fast in cooling hot parts when they have an extra shim added (using gaps of .004” or more).  When used for venting, they entrain a large volume of surrounding air making them ideal for removing dust from grinding operations, welding fumes from welding stations and even from robotic welding systems due to their compact design.

Either end of the Standard Air Amplifier may be ducted using hose or pipe to collect or transfer light materials, fumes, and dust.  This will reduce the air amplification to around 10:1 due to back pressure created by the attachments, but they will still be much more efficient than eductors or venture systems in moving air or any vented gas.

+ Advantages

Features / Advantages

  • Compact, lightweight, portable
  • No electricity so no RF Interference
  • Meets OSHA noise and pressure requirements
  • Quiet
  • No moving parts – no maintenance
  • Ends are easily ducted
  • Instant on/off
  • Force and flow are variable
  • High flow amplification as compared to venturis
+ Videos

Videos

How Standard Air Amplifiers Work

A small amount of compressed air enters the annular chamber at point (A) that is then throttled through a small ring nozzle at high velocity and into the inside of the amplifier over a Coanda profile. The compressed air stream clings to the Coanda profile as it enters the inside walls of the amplifier and thereby creating a vacuum that induces the outside air at point (B) converting the pressure into the amplified airflow. The amplified of airflow leaves at the exit at point (C). Airflow is further amplified downstream at point (D) by entraining additional air from the surroundings at the exit.

+ Performance

Performance

Die Cast Standard Air Amplifiers come standard with a .002″ (.05 mm) shim to control the compressed air exit gap which will work for 90% of all applications encountered. If greater force is required, more .002″ (.05mm) shims or a .003″ (.07mm) shim may be installed to open the gap for greater flow.

Standard Air Amplifier – Ratios (approx.):

Model AM10:   6.5:1
Model AM20:   14:1
Model AM40:   15:1
Model AM75:   15:1
Model AM125: 16:1

Compressed Air Consumption: (Based on gap of .002″ (/05 mm) except AM125 which is .004″ (0.1 mm)

VELOCITY OF AIRFLOW FROM STANDARD AIR AMPLIFIERS. Based on Gap setting of .002″ (.05 mm)

except for AM125 which is at .004″ (0.1 mm)

AM20

AM40

AM75

AM125

Air Consumption

Compressed Air Consumption (Based on gap of 0.002” (.05mm)*) Consumption in SCFM (SLPM)

Inlet Pressure AM10 AM20 AM40 AM75 AM125
20 PSIG
(1.4 BAR)
2.2
(62.3)
4.3
(121.8)
8.0
(226.5)
16.5
(467.2)
65.0
(1840.6)
40 PSIG
(2.8 BAR)
3.4
(96.3)
6.1
(172.7)
11.3
(320.0)
23.2
(657.0)
90.0
(2548.5)
60 PSIG
(4.1 BAR)
4.3
(121.8)
7.5
(212.4)
15.0
(424.8)
29.7
(841.0)
119.5
(3383.9)
80 PSIG
(5.5 BAR)
4.9
(138.8)
9.3
(263.3)
19.3
(546.5)
37.0
(1047.7)
137.5
(3893.6)
100 PSIG
(6.9 BAR)
5.8
(164.2)
11.0
(311.5)
25.1
(710.8)
44.0
(1245.9)
150.0
(4247.5)
120 PSIG
(8.4 BAR)
6.1
(172.7)
11.8
(334.1)
26.0
(736.2)
47.0
(1330.9)
152.0
(4304.2)

PRESSURE vs. VELOCITY AT OUTLET  Ft/min (m/sec)

INLET PRESSURE AM10 AM20 AM40 AM75 AM125
20 PSIG 9000 9000 6000 2800 3900
(1.4 BAR) (45.72) (45.72) (30.48) (14.224) (19.812)
40 PSIG 14000 14500 10000 4600 6050
(2.8 BAR) (71.12) (73.66) (50.8) (23.368) (30.734)
60 PSIG 16500 18200 13500 5950 7700
(4.1 BAR) (83.82) (92.456) (68.58) (30.226) (39.116)
80 PSIG 18500 21000 16200 6850 9000
(5.5 BAR) (93.98) (106.68) (82.296) (34.798) (45.72)
100 PSIG 20300 23200 18400 7550 10000
(6.9 BAR) (103.124) (117.856) (93.472) (38.354) (50.8)
120 PSIG 22000 25000 20200 7900 10500
(8.4 BAR) (111.76) (127) (102.616) (40.132) (53.34)

PRESSURE vs. VELOCITY AT 12″ FROM OUTLET for all sizes except AM10 which is 6″ FROM OUTLET  Ft/min (m/sec)

INLET PRESSURE AM10 AM20 AM40 AM75 AM125
20 PSIG 1000 1400 1850 1550 2000
(1.4 BAR) (5.08) (7.112) (9.398) (7.874) (10.16)
40 PSIG 1430 2350 2850 2300 3400
(2.8 BAR) (7.2644) (11.938) (14.478) (11.684) (17.272)
60 PSIG 1650 2870 3500 2750 4300
(4.1 BAR) (8.382) (14.5796) (17.78) (13.97) (21.844)
80 PSIG 1800 3200 4000 3150 4900
(5.5 BAR) (9.144) (16.256) (20.32) (16.002) (24.892)
100 PSIG 1900 3400 4380 3300 5300
(6.9 BAR) (9.652) (17.272) (22.2504) (16.764) (26.924)
120 PSIG 1980 3600 4700 3450 5600
(8.4 BAR) (10.0584) (18.288) (23.876) (17.526) (28.448)

Standard Air Amplifier – Ducting:Both the inlet (vacuum intake) and discharge ends of the unit may be ducted for light material and fume conveying applications. Care must be taken to avoid unnecessary restrictions that will cause back pressure or suction resistance that will reduce performance levels. Keep back pressure and resistance to under 2″ of water column.

+ Dimensions

Dimensions

Standard Air Amplifiers come in five standard outlet (outside) diameters: 3/4″ (19mm), 1-1/4″ (31mm), 2″ (51mm), 4″ (101mm), 8″ (200mm).
* BSP Adaptors Supplied Upon Request Free Of Charge

Model Number Outside Diameter Of Outlet *A Inches (MM) B Inches (MM) C Inches (MM) D Inches (MM) E Inches (MM) F Inches (MM) G Inches (MM) th
H Inches (MM)
I Inches (MM) J Inches (MM) K* (NPT)
AM10 3/4″ (19) 0.40” (10.16) 1.30” (33.1) 0.99” (25.2) 1.89” (48) 2.24” (57) 0.19” (4.8) 0.16” (4) 0.59” (15) 0.75” (19) 1.59” (40.4) 1/8”
AM20 1-1/4” (31) 0.81” (20.6) 1.86” (47.2) 1.50” (38) 2.39” (60.8) 3.03” (76.9) 0.27” (6.8) 0.20” (5) 0.59” (15) 1.27” (32.2) 2.16” (54.8) 1/4″
AM40 2” (51) 1.59” (40.4) 3.15” (80) 2.93” (74.5) 3.54” (90) 4.18” (106.1) 0.29” (7.4) 0.24” (6.2) 0.79” (20) 2.03” (51.6) 2.84” (72.2) 3/8”
AM75 4” (101) 2.98” (75.8) 5.91” (150) 4.96” (126) 6.89” (175) 8.46” (215) 0.53” (13.5) 0.51” (13) 1.18” (30) 3.98” (101) 5.94” (151) 1/2″
AM125 8” (200) 4.92” (125) 10.24” (260) 7.09” (180) – – – – – – – – 0.79” (20) 7.80” (198) 16.54” (420) 3/4″

+ Pricing

Cast Zinc Air Amplifiers

PART NO. DESCRIPTION Size Price US Dollars
AM10 Zinc Alloy Amplifier 3/4″ $80.00
AM20 Zinc Alloy Amplifier 1-1/4″ $145.00
AM40 Zinc Alloy Amplifier 2″ $182.00
AM75 Zinc Alloy Amplifier 4″ $455.00
AM125 Zinc Alloy Amplifier 8″ $770.00
AM10-1 Amplifier plus filter with auto drain model 90004 3/4″ $175.00
AM20-1 Amplifier plus filter with auto drain model 90004 1-1/4″ $240.00
AM40-1 Amplifier plus filter with auto drain model 90004 2″ $277.00
AM75-1 Amplifier plus filter with auto drain model 90001 4″ $550.00
AM125-1 Amplifier plus filter with auto drain model 90002 8″ $928.00
AM10-2 Amplifier + filter 90004 + regulator with gage 90008 3/4″ $225.00
AM20-2 Amplifier + filter 90004 + regulator with gage 90008 1-1/4″ $290.00
AM40-2 Amplifier + filter 90004 + regulator with gage 90008 2″ $327.00
AM75-2 Amplifier + filter 90001 + regulator with gage 90008 4″ $600.00
AM125-2 Amplifier + filter 90002 + regulator with gage 90009 8″ $1,018.00
SH10-2 Stainless Steel Shim, .002″ for AM10 .002″ $10.00
SH10-3 Stainless Steel Shim, .003″ for AM10 .003″ $10.00
SH20-2 Stainless Steel Shim, .002″ for AM20 .002″ $11.00
SH20-3 Stainless Steel Shim, .003″ for AM20 .003″ $11.00
SH40-2 Stainless Steel Shim, .002″ for AM40 .002″ $12.00
SH40-3 Stainless Steel Shim, .003″ for AM40 .003″ $12.00
SH75-2 Stainless Steel Shim, .002″ for AM75 .002″ $20.00
SH75-3 Stainless Steel Shim, .003″ for AM75 .003″ $20.00
SH125-3 Stainless Steel Shim, .003″ for AM125 .003″ $30.00

MOUNTING SYSTEMS FOR AIR AMPLIFIERS

PART NO. DESCRIPTION Size Price US Dollars
AMMS System for AM10, AM20, AM40 – NF60003 + screw $161.00

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.

website : www.nexflow.com

email : sales@nexflow.com
