Silent X-Stream Air Blade Air Knives

Product Overview

The X-Stream™ Air Blade™ Air Knife from Nex Flow™ is an extremely efficient compressed air operated air knife.   It is very easy to install using mounting holes on unit. Essentially maintenance free, it reduces both compressed air consumption and noise levels in any blow off and/or cooling application.   It creates a “laminar” flow of air using the Coanda effect entraining in a large volume of air from the surrounding atmosphere along with the small amount of compressed air exiting unit. It produces an output flow up to 40 times the inlet air consumed.

Nex Flow™’s X-StreamAir Blade Air Knives are designed to have one of the most efficient force/air consumption ratios possible.  Compared to our nearest competitor, the X-StreamAir Blade Air Knife has the same air consumption and force at 60 PSI pressure that the competitor has at 80 PSI.  It requires 10% less energy to produce air at 60 PSI than at 80 PSI making the Nex Flow™ significantly more efficient!   When replacing a competitive product with an X-StreamAir Blade Air Knife there is almost always at the very least equal but more often superior performance!

The X-Stream™ Air Blade™ Air Knife is 25% more efficient than the Standard versions making it the most popular choice for blow off, drying, or cooling applications.

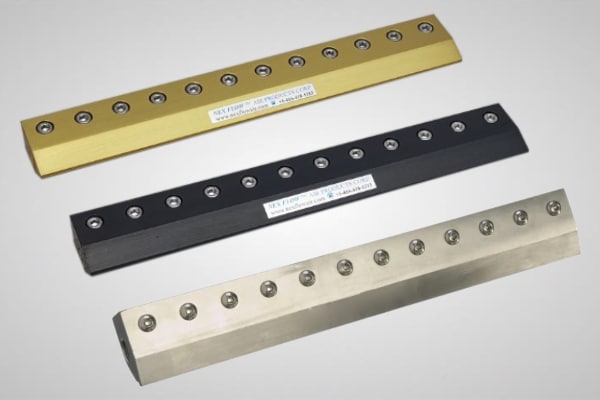

The X-Stream™ Air Blade™ Air comes in four (4) versions:

Anodized Aluminum is used in the majority of industrial application.  Nex Flow™ anodizes their products that are made of aluminum for extra protection in the factory environment.  Most other providers do not.

Hard Anodized Aluminum versions are used in environments where the atmosphere is such that oil mist may deposit onto the air knives.  The Hard Anodizing provides some resistant to the oil sticking to the surface making them easier to clean and to keep clean.  Also, the hard anodizing offers abrasion resistance to materials that may rub against the air knives in some applications, which is ideal for environments where abrasion could occur

303/304 Stainless Steel units are used in high temperature and corrosive environments.

316L Stainless Steel versions apply in food and pharmaceutical environments as well as high temperature and corrosive atmospheres.

Aluminum Silent X-Stream™ Air Blade™ Air Knives

Built and designed for significantly longer life in difficult environments than many competing products by anodizing the aluminum body.

Stainless steel shim maintains gap integrity longer than plastic shims.

Most energy efficient design in force/unit of air consumption.

Flexible mounting options and easy to fit in small spaces.

Energy reduction in compressed air use up to 90% and noise reductions of 15 dbA.

Maintenance free with output easily controlled and safe to use.

The Nex Flow™ X-Stream™ Air Blade™ has proven to be of high quality, high performance, and one of the most quiet, if not “the most quiet” designs on the market for all types of blow-off and cooling applications. Also, eliminating a row of drilled pipe can save up to 90% of compressed air costs.

Click for more detail

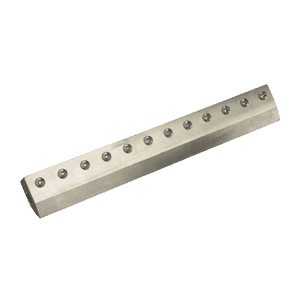

Stainless Steel Silent X-Stream Air Blade™ Air Knives

Stainless steel for corrosive and high temperature environments.

Stainless steel shim maintains gap integrity longer than plastic shims

Most energy efficient design in force/unit of air consumption.

Flexible mounting options and easy to fit in small spaces.

Energy reduction in compressed air use up to 90% and noise reductions of 15 dbA.

Maintenance free with output easily controlled and safe to use.

Click for more detail

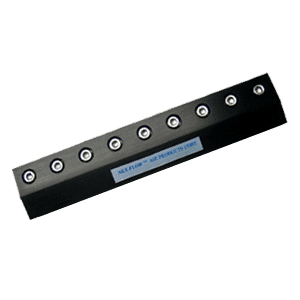

Hard Anodized Air Knives

Hard Anodized Aluminum X-Stream™ Air Blade™ Air Knives

Built and designed for significantly longer life in difficult environments than many competing products by using a special hard coated surface over its aluminum body for mildly corrosive environments and to address any abrasive contact to the surface.

Most energy efficient design in force/unit of air consumption.

Easy to fit in small spaces.

Energy reduction in compressed air use up to 90% and noise reductions of 15 dbA.

Maintenance free with output easily controlled and safe to use.

The Nex Flow™ X-Stream™ Air Blade™ has proven to be of high quality, high performance, and one of the most quiet, if not “the most quiet” designs on the market for all types of blow-off and cooling applications. Also, eliminating a row of drilled pipe can save up to 90% of compressed air costs

Click for more detail

Features / Advantages

  • Quiet – 69 dBA for most applications
  • Made of Anodized Aluminum, Hard Anodized Aluminum, 303/304 Stainless or 316L Stainless Steel.
  • 40:1 air amplification
  • Stainless Steel shim
  • Uniform airflow across entire length
  • Variable force and flow
  • No moving parts – maintenance free
  • Easy mounting
  • Compact, rugged, easy to install
  • Stainless steel screws in all models

Videos

How The  X-Stream Air Blade™ Air Knife Works

Compressed air enters the air knife at the rear (or end) ports at (A). Air is entrained at point (B) and (D) by the compressed air stream that leaves the air knife from a small gap at point (C). The entrained air follows the profile that directs the airflow in a perfectly straight line to create a uniform sheet of air along the entire length of the Air Blade™ air knife. The amplified air stream maximized velocity and force are maximized as a well-defined sheet of laminar flow with minimal wind shear for reduced energy use in the blow off and cooling.

Aluminum X-Stream™ Series Air Blades™ Air Knives
PART NO. DESCRIPTION Size Price US Dollars
10002X Aluminum X-Stream Full-Flow Air Blade Only 2″ $136.00
10003X Aluminum X-Stream Full-Flow Air Blade Only 3″ $158.00
10006X Aluminum X-Stream Full-Flow Air Blade Only 6″ $184.00
10009X Aluminum X-Stream Full-Flow Air Blade Only 9″ $220.00
10012X Aluminum X-Stream Full-Flow Air Blade Only 12″ $236.00
10015X Aluminum X-Stream Full-Flow Air Blade Only 15″ $268.00
10018X Aluminum X-Stream Full-Flow Air Blade Only 18″ $295.00
10024X Aluminum X-Stream Full-Flow Air Blade Only 24″ $357.00
10030X Aluminum X-Stream Full-Flow Air Blade Only 30″ $430.00
10036X Aluminum X-Stream Full-Flow Air Blade Only 36″ $530.00
10042X Aluminum X-Stream Full-Flow Air Blade Only 42″ $630.00
10048X Aluminum X-Stream Full-Flow Air Blade Only 48″ $740.00
10054X Aluminum X-Stream Full-Flow Air Blade Only 54″ $850.00
11002X Al. X-Strm. Air Blade plus filter with auto drain model 90004 2″ $231.00
11003X Al. X-Strm. Air Blade plus filter with auto drain model 90004 3″ $253.00
11006X Al. X-Strm. Air Blade plus filter with auto drain model 90004 6″ $279.00
11009X Al. X-Strm. Air Blade plus filter with auto drain model 90004 9″ $315.00
11012X Al. X-Strm. Air Blade plus filter with auto drain model 90004 12″ $331.00
11015X Al. X-Strm. Air Blade plus filter with auto drain model 90001 15″ $363.00
11018X Al. X-Strm. Air Blade plus filter with auto drain model 90001 18″ $390.00
11024X Al. X-Strm. Air Blade plus filter with auto drain model 90001 24″ $452.00
11030X Al. X-Strm. Air Blade plus filter with auto drain model 90002 30″ $588.00
11036X Al. X-Strm. Air Blade plus filter with auto drain model 90002 36″ $688.00
11042X Al. X-Strm. Air Blade plus filter with auto drain model 90002 42″ $788.00
11048X Al. X-Strm. Air Blade plus filter with auto drain model 90002 48″ $898.00
11054X Al. X-Strm. Air Blade plus filter with auto drain model 90002 54″ $1,008.00
12002X Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 2″ $281.00
12003X Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 3″ $303.00
12006X Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 6″ $329.00
12009X Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 9″ $365.00
12012X Al. X-Strm. AB + filter 90004 + reg.r with gage model 90008 12″ $381.00
12015X Al. X-Strm. AB + filter 90004 + reg.r with gage model 90008 15″ $413.00
12018X Al. X-Strm. AB + filter 90001 + reg. with gage model 90008 18″ $440.00
12024X Al. X-Strm. AB + filter 90001+ reg. with gage model 90009 24″ $542.00
12030X Al. X-Strm. AB + filter 90002+ reg. with gage model 90009 30″ $678.00
12036X Al. X-Strm. AB + filter 90002+ reg. with gage model 90009 36″ $778.00
12042X Al. X-Strm. AB + filter 90002+ reg. with gage model 90009 42″ $878.00
12048X Al. X-Strm. AB + filter 90002+ reg. with gage model 90009 48″ $988.00
12054X Al. X-Strm. AB + filter 90002+ reg. with gage model 90009 54″ $1,098.00
Stainless Steel X-Stream Series Air Blades™ Air Knives / Stainless Shims for All X-Stream Air Knives
PART NO. DESCRIPTION Size Price US Dollars
10002XS Stainless X-Stream Full-Flow Air Blade Only 2″ $178.00
10003XS Stainless X-Stream Full-Flow Air Blade Only 3″ $252.00
10006XS Stainless X-Stream Full-Flow Air Blade Only 6″ $315.00
10009XS Stainless X-Stream Full-Flow Air Blade Only 9″ $410.00
10012XS Stainless X-Stream Full-Flow Air Blade Only 12″ $462.00
10015XS Stainless X-Stream Full-Flow Air Blade Only 15″ $504.00
10018XS Stainless X-Stream Full-Flow Air Blade Only 18″ $546.00
10024XS Stainless X-Stream Full-Flow Air Blade Only 24″ $672.00
10030XS Stainless X-Stream Full-Flow Air Blade Only 30″ $840.00
10036XS Stainless X-Stream Full-Flow Air Blade Only 36″ $987.00
10042XS Stainless X-Stream Full-Flow Air Blade Only 42″ $1,155.00
11002XS SS X-Strm. Air Blade plus filter with auto drain model 90004 2″ $273.00
11003XS SS X-Strm. Air Blade plus filter with auto drain model 90004 3″ $347.00
11006XS SS X-Strm. Air Blade plus filter with auto drain model 90004 6″ $410.00
11009XS SS X-Strm. Air Blade plus filter with auto drain model 90004 9″ $505.00
11012XS SS X-Strm. Air Blade plus filter with auto drain model 90004 12″ $557.00
11015XS SS X-Strm. Air Blade plus filter with auto drain model 90004 15″ $599.00
11018XS SS X-Strm. Air Blade plus filter with auto drain model 90001 18″ $641.00
11024XS SS X-Strm. Air Blade plus filter with auto drain model 90001 24″ $767.00
11030XS SS X-Strm. Air Blade plus filter with auto drain model 90002 30″ $998.00
11036XS SS X-Strm. Air Blade plus filter with auto drain model 90002 36″ $1,145.00
11042XS SS X-Strm. Air Blade plus filter with auto drain model 90002 42″ $1,313.00
12002XS SS X-Strm. AB + filter 90004 + reg. with gage model 90008 2″ $323.00
12003XS SS X-Strm. AB + filter 90004 + reg. with gage model 90008 3″ $397.00
12006XS SS X-Strm. AB + filter 90004 + reg. with gage model 90008 6″ $460.00
12009XS SS X-Strm. AB + filter 90004 + reg. with gage model 90008 9″ $555.00
12012XS SS X-Strm. AB + filter 90004 + reg.r with gage model 90008 12″ $607.00
12015XS SS X-Strm. AB + filter 90004 + reg.r with gage model 90008 15″ $649.00
12018XS SS X-Strm. AB + filter 90001 + reg. with gage model 90008 18″ $691.00
12024XS SS X-Strm. AB + filter 90001+ reg. with gage model 90009 24″ $857.00
12030XS SS X-Strm. AB + filter 90002+ reg. with gage model 90009 30″ $1,088.00
12036XS SS X-Strm. AB + filter 90002+ reg. with gage model 90009 36″ $1,235.00
12042XS SS X-Strm. AB + filter 90002+ reg. with gage model 90009 42″ $1,403.00
Hard Anodized Aluminum X-Stream™ Series Air Blades™ Air Knives
PART NO. DESCRIPTION Size Price US Dollars
10002XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 2″ $160.00
10003XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 3″ $179.00
10006XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 6″ $205.00
10009XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 9″ $253.00
10012XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 12″ $260.00
10015XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 15″ $300.00
10018XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 18″ $344.00
10024XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 24″ $415.00
10030XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 30″ $499.00
10036XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 36″ $614.00
10042XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 42″ $735.00
10048XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 48″ $854.00
10054XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 54″ $982.00
11002XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90004 2″ $255.00
11003XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90004 3″ $274.00
11006XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90004 6″ $300.00
11009XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90004 9″ $348.00
11012XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90004 12″ $355.00
11015XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90004 15″ $395.00
11018XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90001 18″ $439.00
11024XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90001 24″ $510.00
11030XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90002 30″ $657.00
11036XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90002 36″ $772.00
11042XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90002 42″ $893.00
11048XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90002 48″ $1,012.00
11054XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90002 54″ $1,140.00
12002XHA Hard Anodized Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 2″ $305.00
12003XHA Hard Anodized Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 3″ $324.00
12006XHA Hard Anodized Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 6″ $350.00
12009XHA Hard Anodized Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 9″ $398.00
12012XHA Hard Anodized Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 12″ $405.00
12015XHA Hard Anodized Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 15″ $445.00
12018XHA Hard Anodized Al. X-Strm. AB + filter 90001 + reg. with gage model 90008 18″ $489.00
12024XHA Hard Anodized Al. X-Strm. AB + filter 90001 + reg. with gage model 90009 24″ $600.00
12030XHA Hard Anodized Al. X-Strm. AB + filter 90002 + reg. with gage model 90009 30″ $747.00
12036XHA Hard Anodized Al. X-Strm. AB + filter 90002 + reg. with gage model 90009 36″ $862.00
12042XHA Hard Anodized Al. X-Strm. AB + filter 90002 + reg. with gage model 90009 42″ $983.00
12048XHA Hard Anodized Al. X-Strm. AB + filter 90002 + reg. with gage model 90009 48″ $1,102.00
12054XHA Hard Anodized Al. X-Strm. AB + filter 90002 + reg. with gage model 90009 54″ $1,230.00
X-Stream™ Air Blade™ Coupling Kits
PART NO. DESCRIPTION Size Price US Dollars
10900X X-Stream Air Blade Coupling Kit c/w 10 screws $36.00
10900XHA X-Stream Hard Anodized Air Blade Coupling Kit c/w 10 screws $52.00
10900XS Stainless X-Stream Air Blade Coupling Kit c/w 10 screws $68.00

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.

website : www.nexflow.com

email : sales@nexflow.com


+ Overview

Product Overview

The X-Stream™ Air Blade™ Air Knife from Nex Flow™ is an extremely efficient compressed air operated air knife.   It is very easy to install using mounting holes on unit. Essentially maintenance free, it reduces both compressed air consumption and noise levels in any blow off and/or cooling application.   It creates a “laminar” flow of air using the Coanda effect entraining in a large volume of air from the surrounding atmosphere along with the small amount of compressed air exiting unit. It produces an output flow up to 40 times the inlet air consumed.

Nex Flow™’s X-StreamAir Blade Air Knives are designed to have one of the most efficient force/air consumption ratios possible.  Compared to our nearest competitor, the X-StreamAir Blade Air Knife has the same air consumption and force at 60 PSI pressure that the competitor has at 80 PSI.  It requires 10% less energy to produce air at 60 PSI than at 80 PSI making the Nex Flow™ significantly more efficient!   When replacing a competitive product with an X-StreamAir Blade Air Knife there is almost always at the very least equal but more often superior performance!

The X-Stream™ Air Blade™ Air Knife is 25% more efficient than the Standard versions making it the most popular choice for blow off, drying, or cooling applications.

The X-Stream™ Air Blade™ Air comes in four (4) versions:

Anodized Aluminum is used in the majority of industrial application.  Nex Flow™ anodizes their products that are made of aluminum for extra protection in the factory environment.  Most other providers do not.

Hard Anodized Aluminum versions are used in environments where the atmosphere is such that oil mist may deposit onto the air knives.  The Hard Anodizing provides some resistant to the oil sticking to the surface making them easier to clean and to keep clean.  Also, the hard anodizing offers abrasion resistance to materials that may rub against the air knives in some applications, which is ideal for environments where abrasion could occur

303/304 Stainless Steel units are used in high temperature and corrosive environments.

316L Stainless Steel versions apply in food and pharmaceutical environments as well as high temperature and corrosive atmospheres.

Aluminum Silent X-Stream™ Air Blade™ Air Knives

Built and designed for significantly longer life in difficult environments than many competing products by anodizing the aluminum body.

Stainless steel shim maintains gap integrity longer than plastic shims.

Most energy efficient design in force/unit of air consumption.

Flexible mounting options and easy to fit in small spaces.

Energy reduction in compressed air use up to 90% and noise reductions of 15 dbA.

Maintenance free with output easily controlled and safe to use.

The Nex Flow™ X-Stream™ Air Blade™ has proven to be of high quality, high performance, and one of the most quiet, if not “the most quiet” designs on the market for all types of blow-off and cooling applications. Also, eliminating a row of drilled pipe can save up to 90% of compressed air costs.

Click for more detail

Stainless Steel Silent X-Stream Air Blade™ Air Knives

Stainless steel for corrosive and high temperature environments.

Stainless steel shim maintains gap integrity longer than plastic shims

Most energy efficient design in force/unit of air consumption.

Flexible mounting options and easy to fit in small spaces.

Energy reduction in compressed air use up to 90% and noise reductions of 15 dbA.

Maintenance free with output easily controlled and safe to use.

Click for more detail
Hard Anodized Air Knives

Hard Anodized Aluminum X-Stream™ Air Blade™ Air Knives

Built and designed for significantly longer life in difficult environments than many competing products by using a special hard coated surface over its aluminum body for mildly corrosive environments and to address any abrasive contact to the surface.

Most energy efficient design in force/unit of air consumption.

Easy to fit in small spaces.

Energy reduction in compressed air use up to 90% and noise reductions of 15 dbA.

Maintenance free with output easily controlled and safe to use.

The Nex Flow™ X-Stream™ Air Blade™ has proven to be of high quality, high performance, and one of the most quiet, if not “the most quiet” designs on the market for all types of blow-off and cooling applications. Also, eliminating a row of drilled pipe can save up to 90% of compressed air costs

Click for more detail
+ Advantages

Features / Advantages

  • Quiet – 69 dBA for most applications
  • Made of Anodized Aluminum, Hard Anodized Aluminum, 303/304 Stainless or 316L Stainless Steel.
  • 40:1 air amplification
  • Stainless Steel shim
  • Uniform airflow across entire length
  • Variable force and flow
  • No moving parts – maintenance free
  • Easy mounting
  • Compact, rugged, easy to install
  • Stainless steel screws in all models
+ Videos

Videos

How The  X-Stream Air Blade™ Air Knife Works

Compressed air enters the air knife at the rear (or end) ports at (A). Air is entrained at point (B) and (D) by the compressed air stream that leaves the air knife from a small gap at point (C). The entrained air follows the profile that directs the airflow in a perfectly straight line to create a uniform sheet of air along the entire length of the Air Blade™ air knife. The amplified air stream maximized velocity and force are maximized as a well-defined sheet of laminar flow with minimal wind shear for reduced energy use in the blow off and cooling.

+ Pricing
Aluminum X-Stream™ Series Air Blades™ Air Knives
PART NO. DESCRIPTION Size Price US Dollars
10002X Aluminum X-Stream Full-Flow Air Blade Only 2″ $136.00
10003X Aluminum X-Stream Full-Flow Air Blade Only 3″ $158.00
10006X Aluminum X-Stream Full-Flow Air Blade Only 6″ $184.00
10009X Aluminum X-Stream Full-Flow Air Blade Only 9″ $220.00
10012X Aluminum X-Stream Full-Flow Air Blade Only 12″ $236.00
10015X Aluminum X-Stream Full-Flow Air Blade Only 15″ $268.00
10018X Aluminum X-Stream Full-Flow Air Blade Only 18″ $295.00
10024X Aluminum X-Stream Full-Flow Air Blade Only 24″ $357.00
10030X Aluminum X-Stream Full-Flow Air Blade Only 30″ $430.00
10036X Aluminum X-Stream Full-Flow Air Blade Only 36″ $530.00
10042X Aluminum X-Stream Full-Flow Air Blade Only 42″ $630.00
10048X Aluminum X-Stream Full-Flow Air Blade Only 48″ $740.00
10054X Aluminum X-Stream Full-Flow Air Blade Only 54″ $850.00
11002X Al. X-Strm. Air Blade plus filter with auto drain model 90004 2″ $231.00
11003X Al. X-Strm. Air Blade plus filter with auto drain model 90004 3″ $253.00
11006X Al. X-Strm. Air Blade plus filter with auto drain model 90004 6″ $279.00
11009X Al. X-Strm. Air Blade plus filter with auto drain model 90004 9″ $315.00
11012X Al. X-Strm. Air Blade plus filter with auto drain model 90004 12″ $331.00
11015X Al. X-Strm. Air Blade plus filter with auto drain model 90001 15″ $363.00
11018X Al. X-Strm. Air Blade plus filter with auto drain model 90001 18″ $390.00
11024X Al. X-Strm. Air Blade plus filter with auto drain model 90001 24″ $452.00
11030X Al. X-Strm. Air Blade plus filter with auto drain model 90002 30″ $588.00
11036X Al. X-Strm. Air Blade plus filter with auto drain model 90002 36″ $688.00
11042X Al. X-Strm. Air Blade plus filter with auto drain model 90002 42″ $788.00
11048X Al. X-Strm. Air Blade plus filter with auto drain model 90002 48″ $898.00
11054X Al. X-Strm. Air Blade plus filter with auto drain model 90002 54″ $1,008.00
12002X Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 2″ $281.00
12003X Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 3″ $303.00
12006X Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 6″ $329.00
12009X Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 9″ $365.00
12012X Al. X-Strm. AB + filter 90004 + reg.r with gage model 90008 12″ $381.00
12015X Al. X-Strm. AB + filter 90004 + reg.r with gage model 90008 15″ $413.00
12018X Al. X-Strm. AB + filter 90001 + reg. with gage model 90008 18″ $440.00
12024X Al. X-Strm. AB + filter 90001+ reg. with gage model 90009 24″ $542.00
12030X Al. X-Strm. AB + filter 90002+ reg. with gage model 90009 30″ $678.00
12036X Al. X-Strm. AB + filter 90002+ reg. with gage model 90009 36″ $778.00
12042X Al. X-Strm. AB + filter 90002+ reg. with gage model 90009 42″ $878.00
12048X Al. X-Strm. AB + filter 90002+ reg. with gage model 90009 48″ $988.00
12054X Al. X-Strm. AB + filter 90002+ reg. with gage model 90009 54″ $1,098.00
Stainless Steel X-Stream Series Air Blades™ Air Knives / Stainless Shims for All X-Stream Air Knives
PART NO. DESCRIPTION Size Price US Dollars
10002XS Stainless X-Stream Full-Flow Air Blade Only 2″ $178.00
10003XS Stainless X-Stream Full-Flow Air Blade Only 3″ $252.00
10006XS Stainless X-Stream Full-Flow Air Blade Only 6″ $315.00
10009XS Stainless X-Stream Full-Flow Air Blade Only 9″ $410.00
10012XS Stainless X-Stream Full-Flow Air Blade Only 12″ $462.00
10015XS Stainless X-Stream Full-Flow Air Blade Only 15″ $504.00
10018XS Stainless X-Stream Full-Flow Air Blade Only 18″ $546.00
10024XS Stainless X-Stream Full-Flow Air Blade Only 24″ $672.00
10030XS Stainless X-Stream Full-Flow Air Blade Only 30″ $840.00
10036XS Stainless X-Stream Full-Flow Air Blade Only 36″ $987.00
10042XS Stainless X-Stream Full-Flow Air Blade Only 42″ $1,155.00
11002XS SS X-Strm. Air Blade plus filter with auto drain model 90004 2″ $273.00
11003XS SS X-Strm. Air Blade plus filter with auto drain model 90004 3″ $347.00
11006XS SS X-Strm. Air Blade plus filter with auto drain model 90004 6″ $410.00
11009XS SS X-Strm. Air Blade plus filter with auto drain model 90004 9″ $505.00
11012XS SS X-Strm. Air Blade plus filter with auto drain model 90004 12″ $557.00
11015XS SS X-Strm. Air Blade plus filter with auto drain model 90004 15″ $599.00
11018XS SS X-Strm. Air Blade plus filter with auto drain model 90001 18″ $641.00
11024XS SS X-Strm. Air Blade plus filter with auto drain model 90001 24″ $767.00
11030XS SS X-Strm. Air Blade plus filter with auto drain model 90002 30″ $998.00
11036XS SS X-Strm. Air Blade plus filter with auto drain model 90002 36″ $1,145.00
11042XS SS X-Strm. Air Blade plus filter with auto drain model 90002 42″ $1,313.00
12002XS SS X-Strm. AB + filter 90004 + reg. with gage model 90008 2″ $323.00
12003XS SS X-Strm. AB + filter 90004 + reg. with gage model 90008 3″ $397.00
12006XS SS X-Strm. AB + filter 90004 + reg. with gage model 90008 6″ $460.00
12009XS SS X-Strm. AB + filter 90004 + reg. with gage model 90008 9″ $555.00
12012XS SS X-Strm. AB + filter 90004 + reg.r with gage model 90008 12″ $607.00
12015XS SS X-Strm. AB + filter 90004 + reg.r with gage model 90008 15″ $649.00
12018XS SS X-Strm. AB + filter 90001 + reg. with gage model 90008 18″ $691.00
12024XS SS X-Strm. AB + filter 90001+ reg. with gage model 90009 24″ $857.00
12030XS SS X-Strm. AB + filter 90002+ reg. with gage model 90009 30″ $1,088.00
12036XS SS X-Strm. AB + filter 90002+ reg. with gage model 90009 36″ $1,235.00
12042XS SS X-Strm. AB + filter 90002+ reg. with gage model 90009 42″ $1,403.00
Hard Anodized Aluminum X-Stream™ Series Air Blades™ Air Knives
PART NO. DESCRIPTION Size Price US Dollars
10002XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 2″ $160.00
10003XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 3″ $179.00
10006XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 6″ $205.00
10009XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 9″ $253.00
10012XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 12″ $260.00
10015XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 15″ $300.00
10018XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 18″ $344.00
10024XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 24″ $415.00
10030XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 30″ $499.00
10036XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 36″ $614.00
10042XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 42″ $735.00
10048XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 48″ $854.00
10054XHA Hard Anodized Aluminum X-Stream Full-Flow Air Blade Only 54″ $982.00
11002XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90004 2″ $255.00
11003XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90004 3″ $274.00
11006XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90004 6″ $300.00
11009XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90004 9″ $348.00
11012XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90004 12″ $355.00
11015XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90004 15″ $395.00
11018XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90001 18″ $439.00
11024XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90001 24″ $510.00
11030XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90002 30″ $657.00
11036XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90002 36″ $772.00
11042XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90002 42″ $893.00
11048XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90002 48″ $1,012.00
11054XHA Hard Anodized Al. X-Strm. Air Blade plus filter with auto drain model 90002 54″ $1,140.00
12002XHA Hard Anodized Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 2″ $305.00
12003XHA Hard Anodized Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 3″ $324.00
12006XHA Hard Anodized Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 6″ $350.00
12009XHA Hard Anodized Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 9″ $398.00
12012XHA Hard Anodized Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 12″ $405.00
12015XHA Hard Anodized Al. X-Strm. AB + filter 90004 + reg. with gage model 90008 15″ $445.00
12018XHA Hard Anodized Al. X-Strm. AB + filter 90001 + reg. with gage model 90008 18″ $489.00
12024XHA Hard Anodized Al. X-Strm. AB + filter 90001 + reg. with gage model 90009 24″ $600.00
12030XHA Hard Anodized Al. X-Strm. AB + filter 90002 + reg. with gage model 90009 30″ $747.00
12036XHA Hard Anodized Al. X-Strm. AB + filter 90002 + reg. with gage model 90009 36″ $862.00
12042XHA Hard Anodized Al. X-Strm. AB + filter 90002 + reg. with gage model 90009 42″ $983.00
12048XHA Hard Anodized Al. X-Strm. AB + filter 90002 + reg. with gage model 90009 48″ $1,102.00
12054XHA Hard Anodized Al. X-Strm. AB + filter 90002 + reg. with gage model 90009 54″ $1,230.00
X-Stream™ Air Blade™ Coupling Kits
PART NO. DESCRIPTION Size Price US Dollars
10900X X-Stream Air Blade Coupling Kit c/w 10 screws $36.00
10900XHA X-Stream Hard Anodized Air Blade Coupling Kit c/w 10 screws $52.00
10900XS Stainless X-Stream Air Blade Coupling Kit c/w 10 screws $68.00

Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA

Richmond Hill, ON, Canada for international orders.

website : www.nexflow.com

email : sales@nexflow.com


Contact Us
English

Download

​IS YOUR COMPRESSED AIR SAFE AND USED EFFICIENTLY?
close-link
Ebook

We use cookies to give you the best online experience. By agreeing you accept the use of cookies in accordance with our cookie policy.
